RN20-KR (1972)
Toyota Hilux
Production
Nov 1972
-
Jul 1978
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

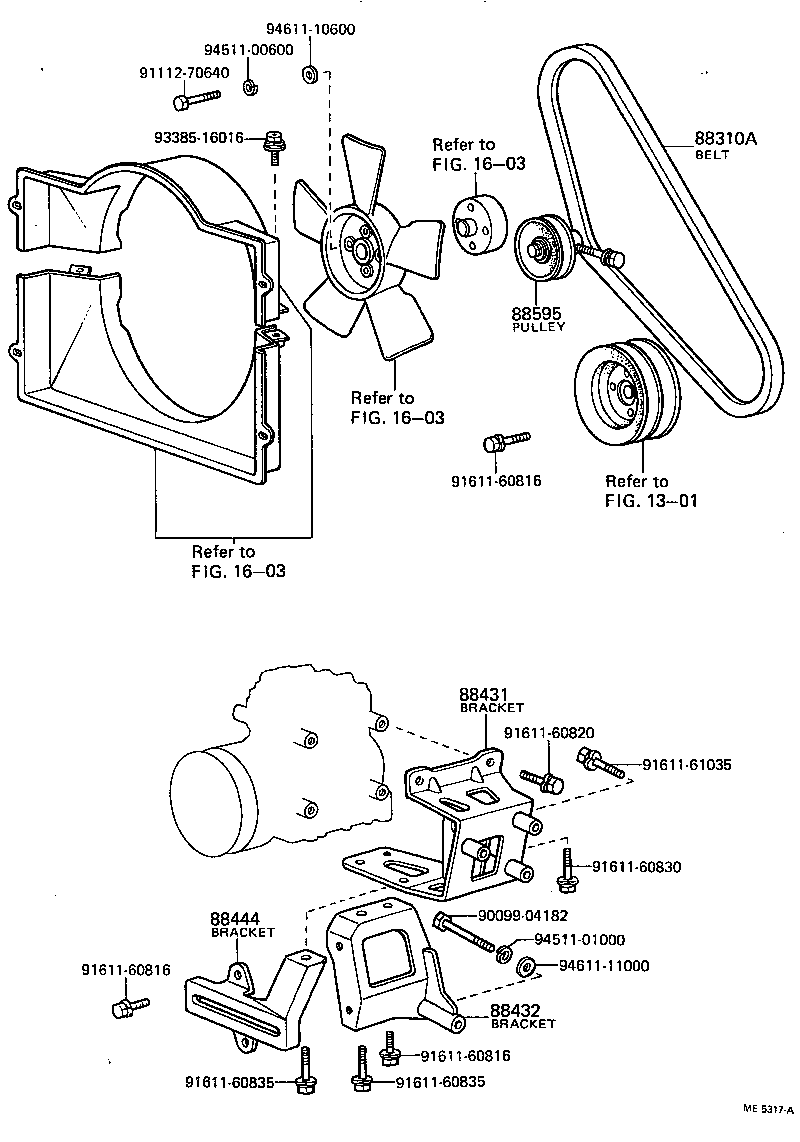

(7511-7807)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99522-11027 |
RN20,25 |
1 | ||
| 99322-11030 |
RN20,25..RHD |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20100 |
RN20,25 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88432-20070 |
RN20,25 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-20120 |
RN20,25 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
RN20,25 |
1 | ||
| Common parts | ||||
| 90099-04182 | ||||
| 91112-70640 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60830 | ||||
| 91611-60835 | ||||
| 91611-61035 | ||||
| 93385-16016 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94611-10600 | ||||
| 94611-11000 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||

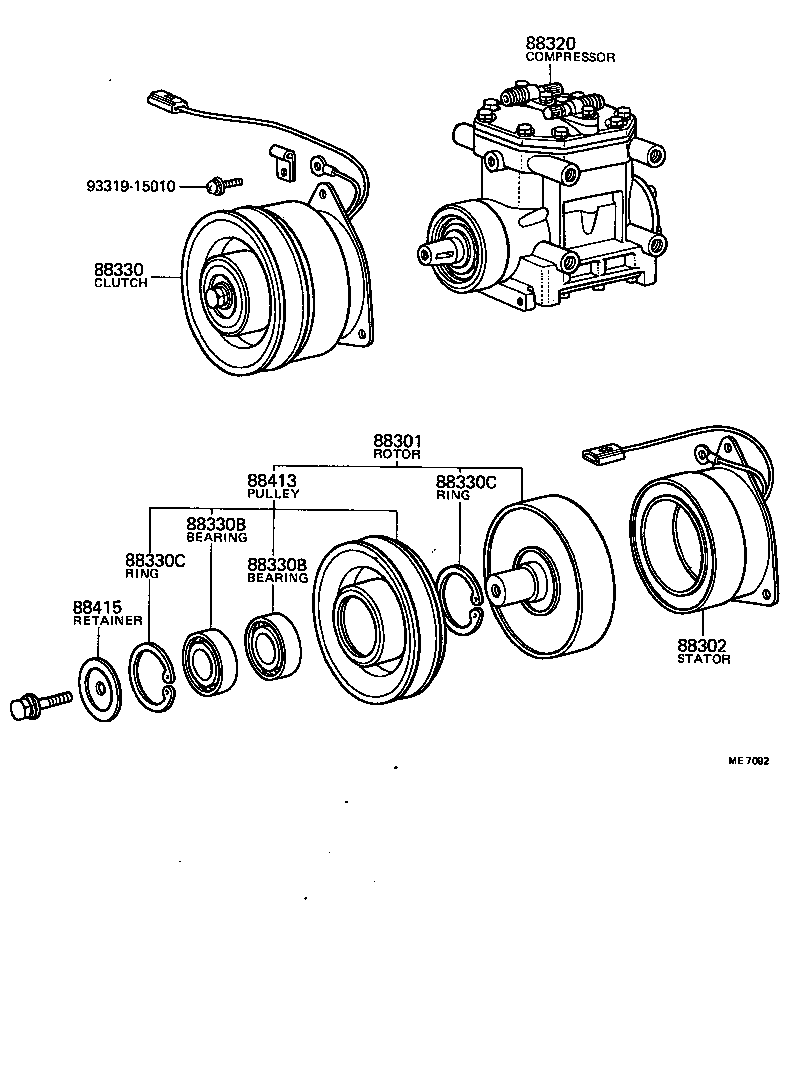

(7511-7807)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-20060 |
RN20,25 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-20070 |
RN20,25 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20170 |
RN20,25 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-20110 |
RN20,25 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
RN20,25 |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
RN20,25 |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-02137 |
RN20,25 |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-02137 |
RN20,25 |
2 | ||
| 88413 - PULLEY SUB-ASSY, MAGNET CLUTCH | ||||
| 88402-30250 |
RN20,25 |
1 | ||
| 88415 - RETAINER, MAGNET CLUTCH BEARING, NO.1 | ||||
| 88415-12020 |
RN20,25 |
1 | ||
| Common parts | ||||
| 93319-15010 | ||||

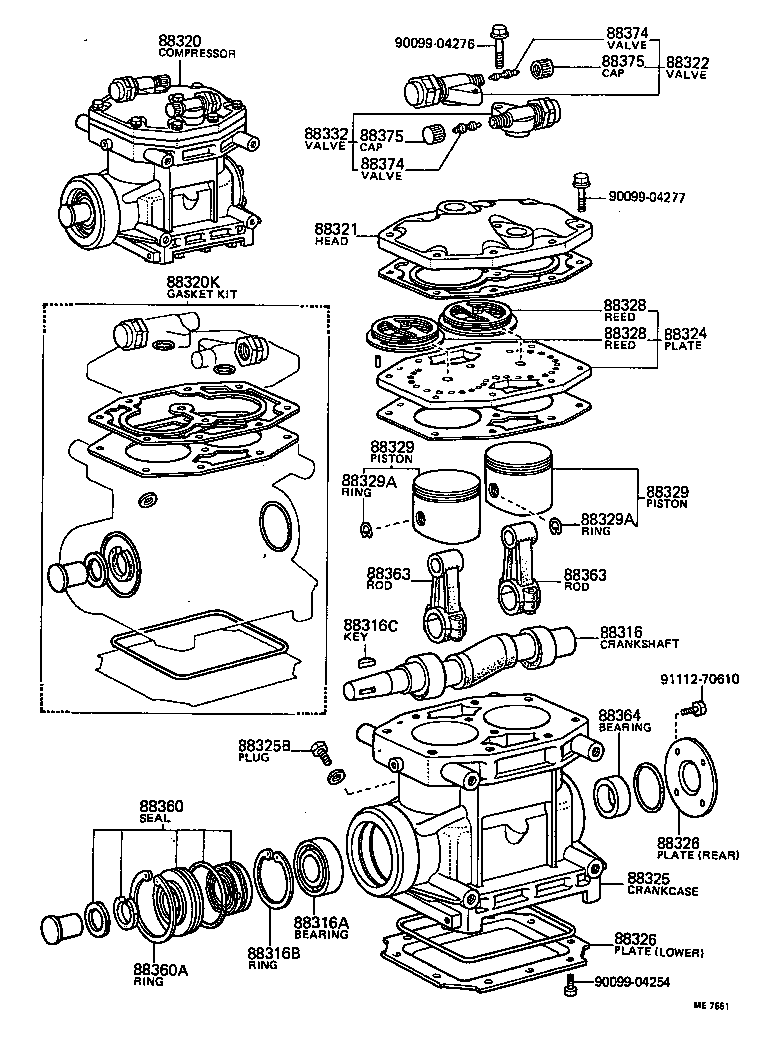

(7511-7807)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-12050 |
RN20,25 |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 90099-10104 |
RN20,25 |
1 | ||
| 88316B - RING, COMPRESSOR CRANKSHAFT REAR BEARING SNAP | ||||
| 90096-90004 |
RN20,25 |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90097-00465 |
RN20,25 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20170 |
RN20,25 |
1 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-20022 |
RN20,25 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12021 |
RN20,25 |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20090 |
RN20,25 |
1 | ||
| 88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88305-12021 |
RN20,25 |
1 | ||
| 88325 - CRANKCASE, COOLER COMPRESSOR | ||||
| 88325-12040 |
RN20,25 |
1 | ||
| 88325B - PLUG, CYLINDER BLOCK OIL | ||||
| 88339-12020 |
RN20,25 |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88326-12020 |
RN20,25 REAR |
1 | ||
| 88331-12030 |
RN20,25 LOWER |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88326-12020 |
RN20,25 REAR |
1 | ||
| 88331-12030 |
RN20,25 LOWER |
1 | ||
| 88328 - REED SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88307-12021 |
RN20,25 |
2 | ||
| 88328 - REED SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88307-12021 |
RN20,25 |
2 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12030 |
RN20,25 |
2 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12030 |
RN20,25 |
2 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 90099-07054 |
RN20,25 |
4 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 90099-07054 |
RN20,25 |
4 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-20070 |
RN20,25 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-12050 |
RN20,25 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90005 |
RN20,25 |
1 | ||
| 88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING | ||||
| 88302-20040 |
RN20,25 |
2 | ||
| 88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING | ||||
| 88302-20040 |
RN20,25 |
2 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88367-12020 |
RN20,25 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RN20,25 |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
RN20,25 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
RN20,25 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
RN20,25 |
2 | ||
| Common parts | ||||
| 90099-04254 | ||||
| 90099-04276 | ||||
| 90099-04277 | ||||
| 91112-70610 | ||||
