RN20-KR (1972)
Toyota Hilux
Production
Nov 1972
-
Jul 1978
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

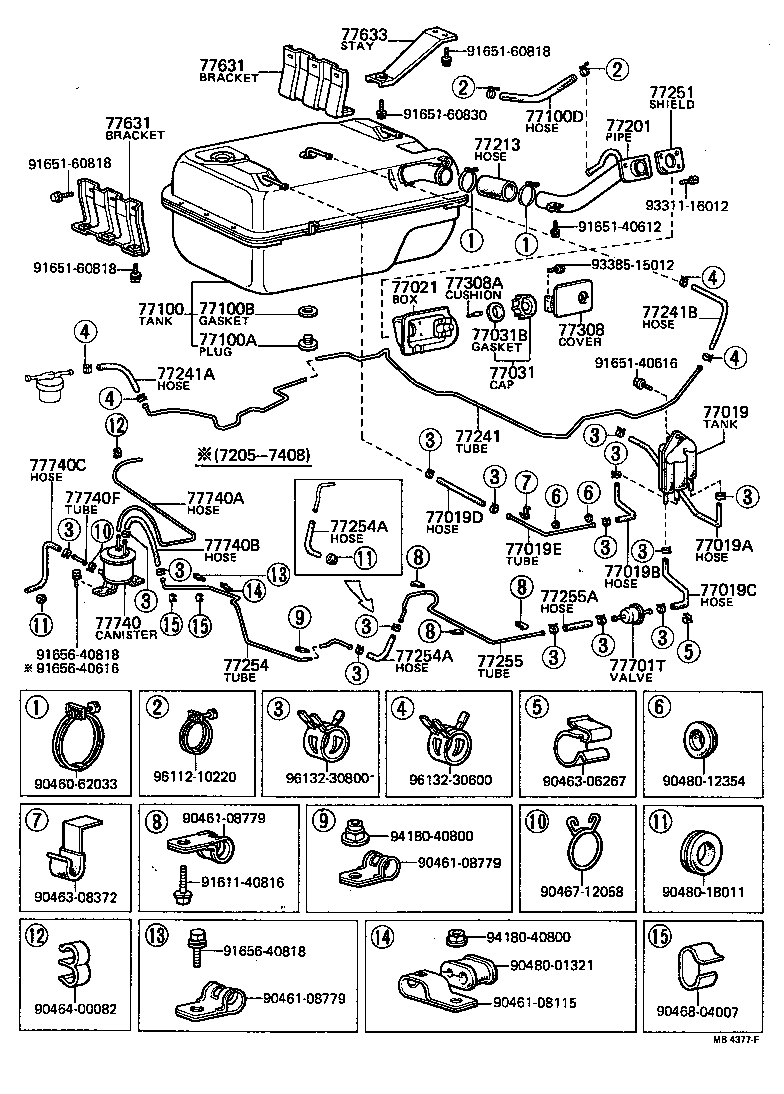

(7205-7511)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019 - TANK SUB-ASSY, FUEL EXPANSION | ||||
| 77193-35010 |
RN20,25 |
1 | ||
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 77226-35020 |
RN20,25 |
1 | ||
| 77019B - HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK) | ||||
| 77225-35020 |
RN20,25 |
1 | ||
| 77019C - HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK) | ||||
| 77224-35010 |
RN20,25 |
1 | ||
| 77019D - HOSE, FUEL, NO.4(FOR FUEL EXPANSION TANK) | ||||
| 95332-08024 |
RN20,25 *H,L=240,ID=7.6 |
1 | ||
| 77019E - TUBE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 77244-35010 |
RN20,25 |
1 | ||
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 65507-89102 |
RN20,25 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12041 |
RN2# |
1 | ||
| 77310-12041 |
RN20,25 |
1 | ||
| 77310-14070 |
RN2# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
RN2# |
1 | ||
| 77316-12040 |
RN2# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35909 |
RN20,25 |
1 | ||
| 77001-35918 |
RN20,25 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
RN20,25 |
1 | ||
| 90105-12018 |
RN2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
RN20,25 |
1 | ||
| 90430-12038 |
RN2# |
1 | ||
| 90430-12245 |
RN2# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22904 |
RN20,25 L=300 |
1 | ||
| 90445-22904 |
RN20,25 L=300 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35060 |
RN20,25 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77214-35030 |
RN2# |
1 | ||
| 77214-35031 |
RN20,25 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-35120 |
RN20 |
1 | ||
| 77252-35080 |
RN20 |
1 | ||
| 77252-35121 |
RN20 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06028 |
RN2# *H,L=280 |
1 | ||
| 95331-06026 |
RN2# *H,L=260 |
1 | ||
| 95331-08022 |
RN2# *H,L=220 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-08030 |
RN20,25 *H,L=300 |
1 | ||
| 95332-06030 |
RN20,25 *H,L=300 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77262-35011 |
RN2# |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77754-35010 |
RN20,25 L=300 |
1 | ||
| 77754-35010 |
RN20,25 L=300 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77754-35010 |
RN20,25 L=300 |
1 | ||
| 77754-35010 |
RN20,25 L=300 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77245-35010 |
RN20 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95331-08005 |
RN20,25 *H,L=50 |
1 | ||
| 95331-08005 |
RN20,25 *H,L=50 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77308-89101 |
RN20,25,27 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
RN20,25,27 |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77631-35061 |
RN20,25 |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77631-35061 |
RN20,25 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-35011 |
RN20,25 |
1 | ||
| 77633-35010 |
RN2# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10004 |
RN2# |
1 | ||
| 90917-10012 |
RN20,25 |
1 | ||
| 90917-10012 |
RN2# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
RN20..RHD *H,L=800,MARK=#* |
1 | ||
| Common parts | ||||
| 90460-62033 | ||||
| 90461-08115 | ||||
| 90461-08779 | ||||
| 90463-06267 | ||||
| 90463-08372 | ||||
| 90464-00082 | ||||
| 90467-12058 | ||||
| 90468-04007 | ||||
| 90480-01321 | ||||
| 90480-12354 | ||||
| 90480-18011 | ||||
| 91611-40816 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60818 | ||||
| 91651-60830 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 93311-16012 | ||||
| 93385-15012 | ||||
| 94180-40800 | ||||
| 96112-10220 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||

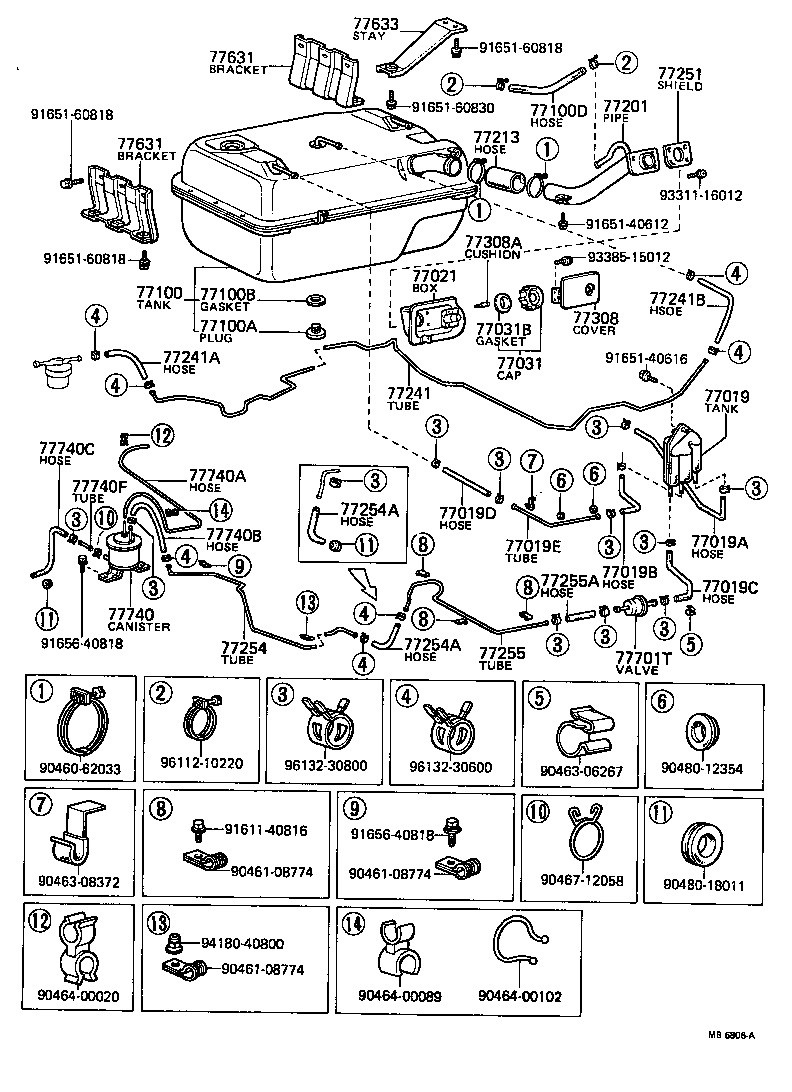

(7511-7807)5F ; (7511-7808)RN20,25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019 - TANK SUB-ASSY, FUEL EXPANSION | ||||
| 77193-35010 |
RN20,25 |
1 | ||
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 77226-35020 |
RN20,25 |
1 | ||
| 77019B - HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK) | ||||
| 77225-35020 |
RN20,25 |
1 | ||
| 77019C - HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK) | ||||
| 77224-35010 |
RN20,25 |
1 | ||
| 77019D - HOSE, FUEL, NO.4(FOR FUEL EXPANSION TANK) | ||||
| 95332-08024 |
RN20,25 *H,L=240,ID=7.6 |
1 | ||
| 77019E - TUBE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 77244-35010 |
RN20,25 |
1 | ||
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 65507-89102 |
RN20,25 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12041 |
RN2# |
1 | ||
| 77310-12041 |
RN20,25 |
1 | ||
| 77310-14070 |
RN2# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
RN2# |
1 | ||
| 77316-12040 |
RN2# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35909 |
RN20,25 |
1 | ||
| 77001-35918 |
RN20,25 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
RN20,25 |
1 | ||
| 90105-12018 |
RN2# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
RN20,25 |
1 | ||
| 90430-12038 |
RN2# |
1 | ||
| 90430-12245 |
RN2# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22904 |
RN20,25 L=300 |
1 | ||
| 90445-22904 |
RN20,25 L=300 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35060 |
RN20,25 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77214-35030 |
RN2# |
1 | ||
| 77214-35031 |
RN20,25 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-35120 |
RN20 |
1 | ||
| 77252-35080 |
RN20 |
1 | ||
| 77252-35121 |
RN20 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06028 |
RN2# *H,L=280 |
1 | ||
| 95331-06026 |
RN2# *H,L=260 |
1 | ||
| 95331-08022 |
RN2# *H,L=220 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-08030 |
RN20,25 *H,L=300 |
1 | ||
| 95332-06030 |
RN20,25 *H,L=300 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77262-35011 |
RN2# |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77754-35010 |
RN20,25 L=300 |
1 | ||
| 77754-35010 |
RN20,25 L=300 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77754-35010 |
RN20,25 L=300 |
1 | ||
| 77754-35010 |
RN20,25 L=300 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77245-35010 |
RN20 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95331-08005 |
RN20,25 *H,L=50 |
1 | ||
| 95331-08005 |
RN20,25 *H,L=50 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77308-89101 |
RN20,25,27 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
RN20,25,27 |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77631-35061 |
RN20,25 |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77631-35061 |
RN20,25 |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77633-35011 |
RN20,25 |
1 | ||
| 77633-35010 |
RN2# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10004 |
RN2# |
1 | ||
| 90917-10012 |
RN20,25 |
1 | ||
| 90917-10012 |
RN2# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
RN20..RHD *H,L=800,MARK=#* |
1 | ||
| Common parts | ||||
| 90460-62033 | ||||
| 90461-08774 | ||||
| 90463-06267 | ||||
| 90463-08372 | ||||
| 90464-00020 | ||||
| 90464-00089 | ||||
| 90464-00102 | ||||
| 90467-12058 | ||||
| 90480-12354 | ||||
| 90480-18011 | ||||
| 91611-40816 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60818 | ||||
| 91651-60830 | ||||
| 91656-40818 | ||||
| 93311-16012 | ||||
| 93385-15012 | ||||
| 94180-40800 | ||||
| 96112-10220 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
