RN20-JR (1972)
Toyota Hilux
Production
May 1972
-
Jul 1978
Engine
12R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)

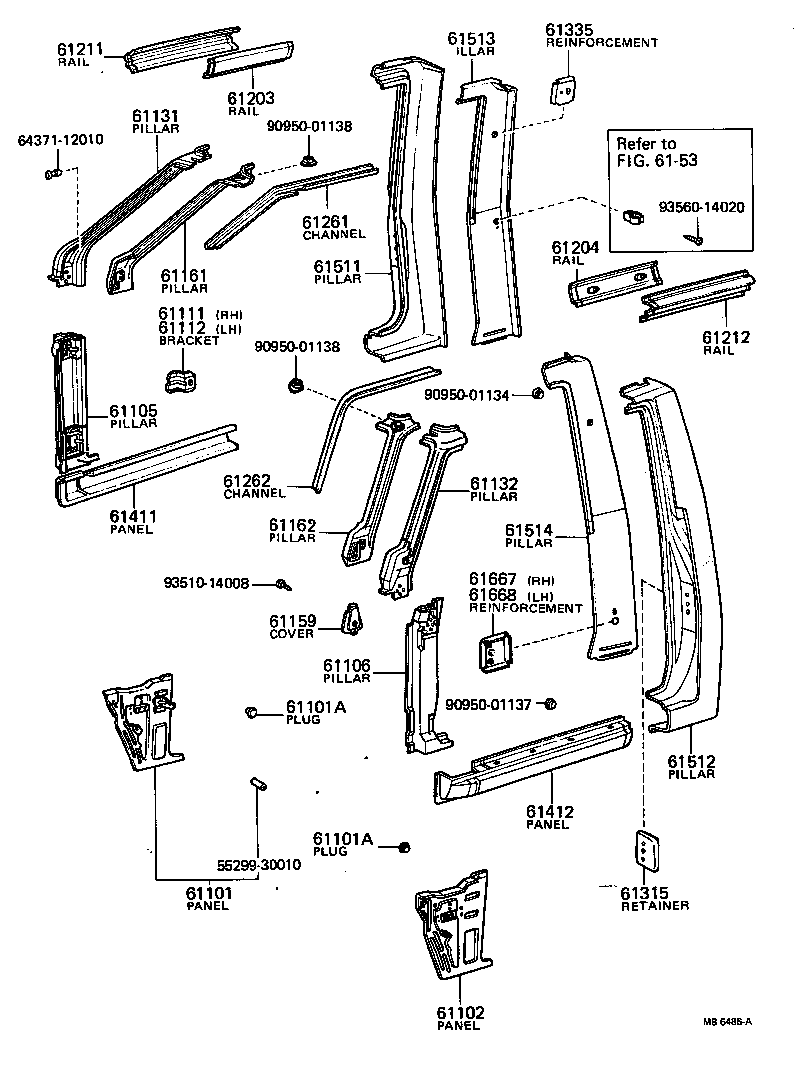

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-89113 |
RN2#..RHD |
1 | ||
| 61101-89113 |
RN20,22,25..RHD |
1 | ||
| 61101-89115 |
RN20,25..4H AUSTRALIA N.S.W. SPEC. |
1 | ||
| 61101-89115 |
RN20,25..4H AUSTRALIA N.S.W. SPEC. |
1 | ||
| 61101A - PLUG, HOLE(FOR COWL SIDE PANEL) | ||||
| 90950-01010 |
RN20,22,25 |
1 | ||
| 61101A - PLUG, HOLE(FOR COWL SIDE PANEL) | ||||
| 90950-01010 |
RN20,22,25 |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-89107 |
RN2#..RHD |
1 | ||
| 61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH | ||||
| 61133-89901 |
RN2# |
1 | ||
| 61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH | ||||
| 61134-89901 |
RN2# |
1 | ||
| 61111 - BRACKET SUB-ASSY,INSTRUMENT SIDE, RH | ||||
| 61125-89102 |
RN2# |
1 | ||
| 61112 - BRACKET SUB-ASSY, INSTRUMENT SIDE, LH | ||||
| 61126-89102 |
RN2# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-89901 |
RN2# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-89901 |
RN2# |
1 | ||
| 61159 - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 67851-89102 |
RN2# FOR RH. |
1 | ||
| 67852-89103 |
RN2# FOR LH. |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-89103 |
RN2# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-89103 |
RN2# |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-89104 |
RN2#..RHD |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-89106 |
RN2#..RHD |
1 | ||
| 61232-89104 |
RN2#..RHD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-89102 |
RN2# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-89102 |
RN2# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61205-89103 |
RN20,25 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61206-89103 |
RN20,25 |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61309-12020 |
RN2# |
2 | ||
| 61335 - REINFORCEMENT, FRONT SEAT BELT ANCHORAGE, UPPER | ||||
| 61665-89102 |
RN20,22,25 |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-89102 |
RN2# |
1 | ||
| 61411-89101 |
RN2# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-89101 |
RN2# |
1 | ||
| 61412-89102 |
RN2# |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-89103 |
RN20,25 |
1 | ||
| 61511-89103 |
RN20,25 |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-89104 |
RN20,25 |
1 | ||
| 61512-89104 |
RN20 |
1 | ||
| 61513 - PILLAR, QUARTER LOCK INNER, RH | ||||
| 61531-89102 |
RN20,25 |
1 | ||
| 61531-89105 |
RN20,25 |
1 | ||
| 61531-89105 |
RN20,25 |
1 | ||
| 61514 - PILLAR, QUARTER LOCK, INNER LH | ||||
| 61532-89102 |
RN20,25 |
1 | ||
| 61532-89105 |
RN20,25 |
1 | ||
| 61532-89105 |
RN20,25 |
1 | ||
| 61667 - REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER RH | ||||
| 61667-89101 |
RN20,25..RHD AUSTRALIA SPEC. |
1 | ||
| 61668 - REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER LH | ||||
| 61668-89101 |
RN20,25..RHD AUSTRALIA SPEC. |
1 | ||
| Common parts | ||||
| 55299-30010 | ||||
| 64371-12010 | ||||
| 90950-01134 | ||||
| 90950-01137 | ||||
| 90950-01138 | ||||
| 93510-14008 | ||||
| 93560-14020 | ||||
| Linked diagrams | ||||
| 6153 | ||||
