RN20-JR (1972)
Toyota Hilux
Production
May 1972
-
Jul 1978
Engine
12R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7702-7807)12R

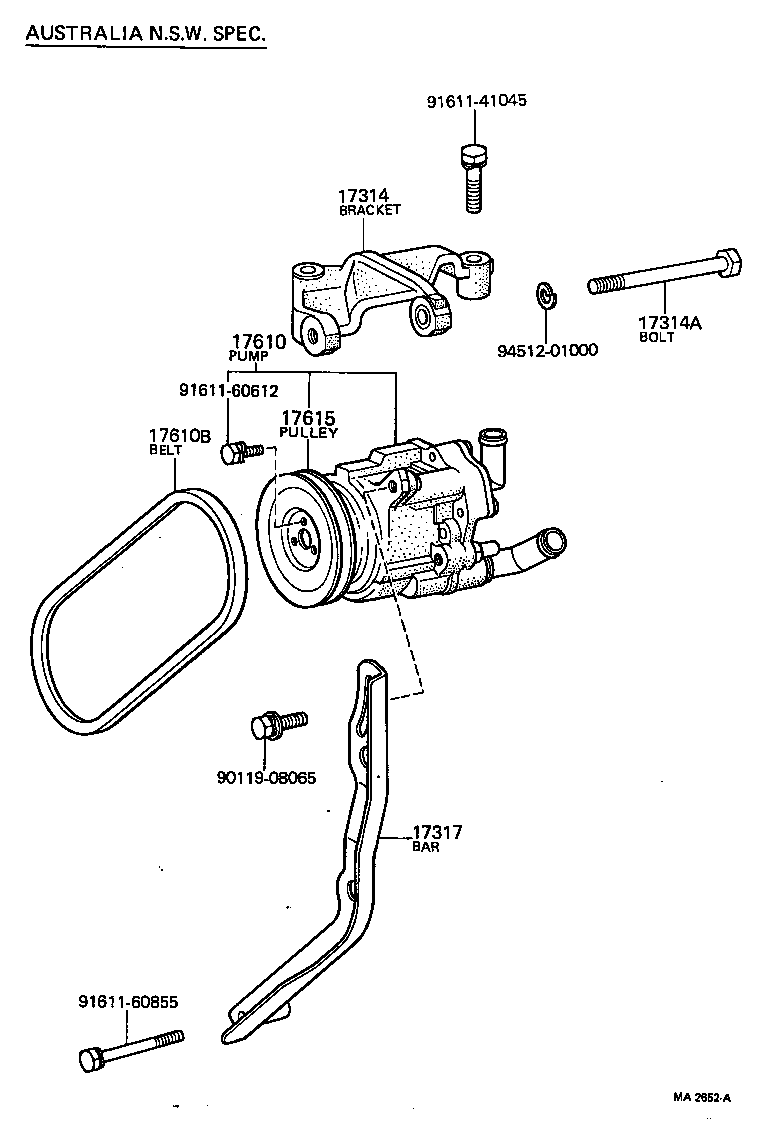

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17314 - BRACKET, AIR PUMP | ||||
| 17314-31010 |
12R..RN20,25..4H AUSTRALIA N.S.W. SPEC. |
1 | ||
| 17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING) | ||||
| 91121-51090 |
12R..RN20,25..4H AUSTRALIA N.S.W. SPEC. |
1 | ||
| 17317 - BAR, AIR PUMP ADJUSTING, NO.1 | ||||
| 17031-31010 |
12R..RN20,25..4H AUSTRALIA N.S.W. SPEC. |
1 | ||
| 17610 - PUMP ASSY, AIR | ||||
| 17610-31030 |
12R..RN20,25..4H AUSTRALIA N.S.W. SPEC. |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 99521-10770 |
12R..RN20,25..4H AUSTRALIA N.S.W. SPEC. |
1 | ||
| 17615 - PULLEY(FOR AIR PUMP) | ||||
| 17615-31010 |
12R..RN20,25..4H AUSTRALIA N.S.W. SPEC. |
1 | ||
| Common parts | ||||
| 90119-08065 | ||||
| 91611-41045 | ||||
| 91611-60612 | ||||
| 91611-60855 | ||||
| 94512-01000 | ||||
