RN20-JR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

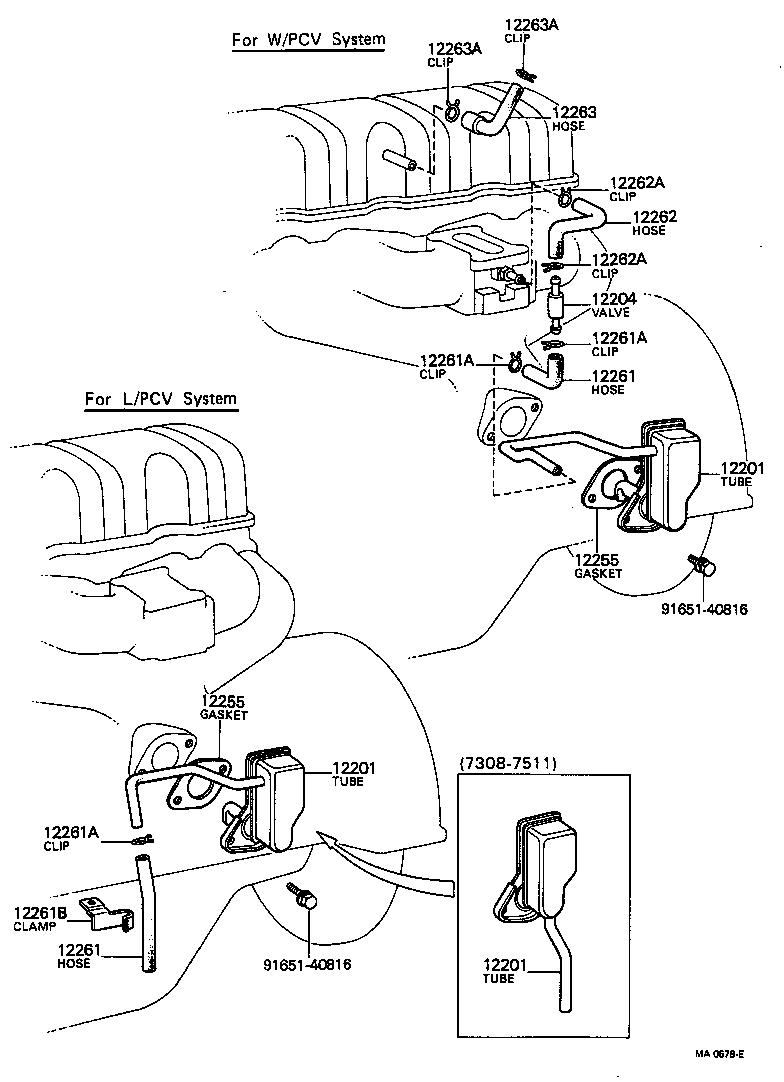

(7205-7511)12R

Click highlighted areas on diagram

diagram 12201 12201 12201 12204 12255 12255 12261 12261 12261A 12261A 12261A 12261B 12262 12262A 12262A 12263 12263A 12263A 9165140816 9165140816
Part # Description Qty Price
12201 - TUBE SUB-ASSY, VENTILATION
12201-31030

12R..RN20,25

W/PCV

 1
12201-31040

12R..RN2#

L/PCV

 1
12201-31050

12R..RN20,25

L/PCV

 1
12201 - TUBE SUB-ASSY, VENTILATION
12201-31030

12R..RN20,25

W/PCV

 1
12201-31040

12R..RN2#

L/PCV

 1
12201-31050

12R..RN20,25

L/PCV

 1
12201 - TUBE SUB-ASSY, VENTILATION
12201-31030

12R..RN20,25

W/PCV

 1
12201-31040

12R..RN2#

L/PCV

 1
12201-31050

12R..RN20,25

L/PCV

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-31020

12R#..RN20,25

 1
12255 - GASKET, VENTILATION
12255-25010

12R..RN20,25

 1
12255 - GASKET, VENTILATION
12255-25010

12R..RN20,25

 1
12261 - HOSE, VENTILATION
90445-20051

12R..RN2#

L/PCV

 1
90910-05023

12R..RN20,25

W/PCV

 1
12261 - HOSE, VENTILATION
90445-20051

12R..RN2#

L/PCV

 1
90910-05023

12R..RN20,25

W/PCV

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

12R..RN20,25

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

12R..RN20,25

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20020

12R..RN20,25

 2
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
90461-10701

12R..RN2#

L/PCV

 1
12262 - HOSE, VENTILATION, NO.2
12262-31020

12R..RN20,25

W/PCV

 1
90445-14013

12R#..RN20,25

W/PCV

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

12R#..RN20,25

 2
90467-16010

12R..RN20,25

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

12R#..RN20,25

 2
90467-16010

12R..RN20,25

 2
12263 - HOSE, VENTILATION, NO.3
12263-31021

12R#..RN20,25

W/PCV

 1
12263-31011

12R..RN2#

W/PCV

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-16010

12R..RN2#

 1
90467-20020

12R..RN2#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-16010

12R..RN2#

 1
90467-20020

12R..RN2#

 1
Common parts
91651-40816

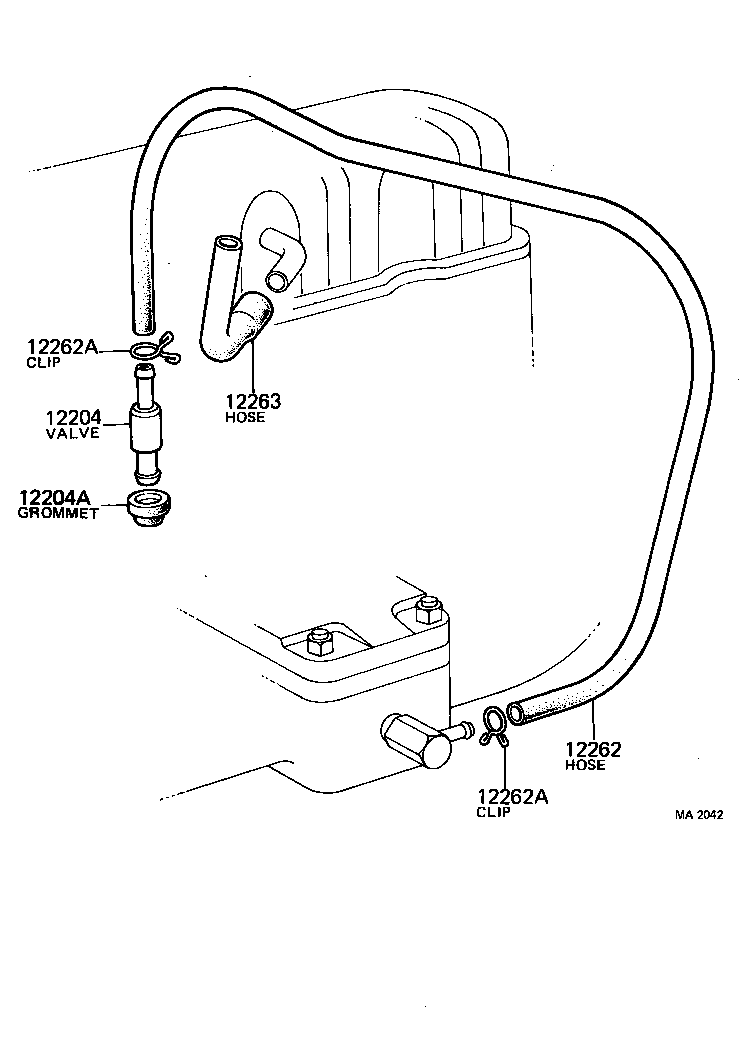

(7511-7807)12R#

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-31020

12R#..RN20,25

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

12R#,18R..RN2#

 1
12262 - HOSE, VENTILATION, NO.2
12262-31020

12R..RN20,25

W/PCV

 1
90445-14013

12R#..RN20,25

W/PCV

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

12R#..RN20,25

 2
90467-16010

12R..RN20,25

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

12R#..RN20,25

 2
90467-16010

12R..RN20,25

 2
12263 - HOSE, VENTILATION, NO.3
12263-31021

12R#..RN20,25

W/PCV

 1
12263-31011

12R..RN2#

W/PCV

 1

(1107- )2KDFTV..KUN10,35..DLX..GCC,IDN,LA,SA; (1109-1210)2KDFTV..KUN25..MA ; (1

Click highlighted areas on diagram

W/O(INTERCOOLER)

diagram 12261 12261A 12261A 12278 1703 90119T0249 91651B0814
Part # Description Qty Price
Common parts
90119-T0249
91651-B0814
Linked diagrams
1703
