LN67R-MDN (1995)

Toyota Hilux

Production Aug 1995 - Jul 1998
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )2L,3L

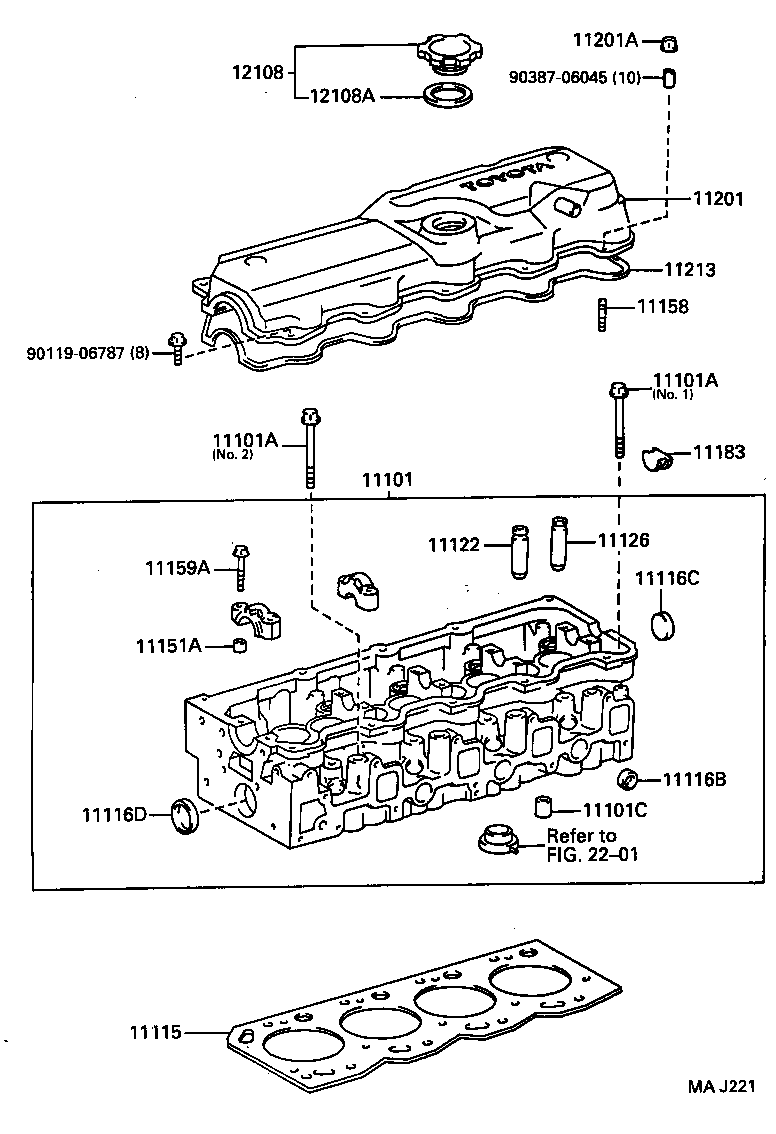

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101C 11115 11116B 11116C 11116D 11122 11126 11151A 11158 11159A 11183 11201 11201A 11213 12108 12108A 2201 9011906787 9038706045
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-54131

3L..LN57,67

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02060

L,2L..LN5#,6#

*12-1.25PX112-24

 18
90910-02080

2L,3L..LN5#,67

NO.1

 14
90910-02081

2L,3L..LN5#,67

NO.2

 4
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02060

L,2L..LN5#,6#

*12-1.25PX112-24

 18
90910-02080

2L,3L..LN5#,67

NO.1

 14
90910-02081

2L,3L..LN5#,67

NO.2

 4
11101C - TUBE(FOR CYLINDER HEAD)
90440-15003

2L,3L..LN5#,67

 4
11115 - GASKET, CYLINDER HEAD
11115-54072B0

3L..LN57,67

MARK B,MARK B

 1
11115-54072D0

3L..LN57,67

MARK D,MARK D

 1
11115-54072F0

3L..LN57,67

MARK F,MARK F

 1
11115-54073B0

3L..LN57,67

MARK B,MARK B

 1
11115-54073D0

3L..LN57,67

MARK D,MARK D

 1
11115-54073F0

3L..LN57,67

MARK F,MARK F

 1
11116B - PLUG, TIGHT, NO.2
96411-41200

L,2L..LN5#,6#

OD=12

 4
96411-42500

2L,3L..LN5#,67

OD=25

 7
11116C - PLUG, TIGHT, NO.3
96411-45000

L,2L..LN5#,6#

OD=50

 1
96411-43000

2L,3L..LN5#,67

OD=30

 1
11116D - PLUG, TIGHT, NO.4
96411-44500

2L,3L..LN5#,67

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-54011

L,2L..LN5#,6#

STD,STD

 4
11123-54020

2L,3L..LN5#,67

O/S 0.05,O/S 0.05

 4
11122-54020

2L,3L..LN5#,67

STD,STD

 4
11123-54011

L,2L..LN5#,6#

O/S 0.05,O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54011

L,2L..LN5#,6#

STD,STD

 4
11123-54011

L,2L..LN5#,6#

O/S 0.05,O/S 0.05

 4
11123-54020

2L,3L..LN5#,67

O/S 0.05,O/S 0.05

 4
11122-54020

2L,3L..LN5#,67

STD,STD

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11001

L,2L..LN5#,6#

L=11,OD=11,L=11,OD=11

 6
90253-11021

2L,3L..LN5#,67

L=8,OD=11,L=8,OD=11

 10
90253-11021

2L,3L..LN5#,67

L=8,OD=11,L=8,OD=11

 7
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-80816

2L,3L..LN5#,67

S=9 & 9,L=25

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08191

L,2L..LN5#,6#

*8-1.25PX55-30

 3
90105-08166

2L,3L..LN5#,67

 10
11183 - PLUG, SEMICIRCULAR
11183-54011

L,2L..LN5#,6#

 1
11183-54020

2L,3L..LN5#,67

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-54050

L,2L..LN5#,6#

 1
11210-54041

2L,3L..LN5#,67

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

L,2L..LN5#,6#

 3
90179-06319

2L,3L..LN5#,67

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-54030

L,2L..LN5#,6#

 1
11213-54050

2L,3L..LN5#,67

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

L,2L..LN5#,6#

 1
12180-70020

2L,3L..LN5#,67

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-70010

2L,3L..LN5#,67

 1
90430-37140

L,2L..LN5#,6#

 1
Common parts
90119-06787
90387-06045
Linked diagrams
2201
