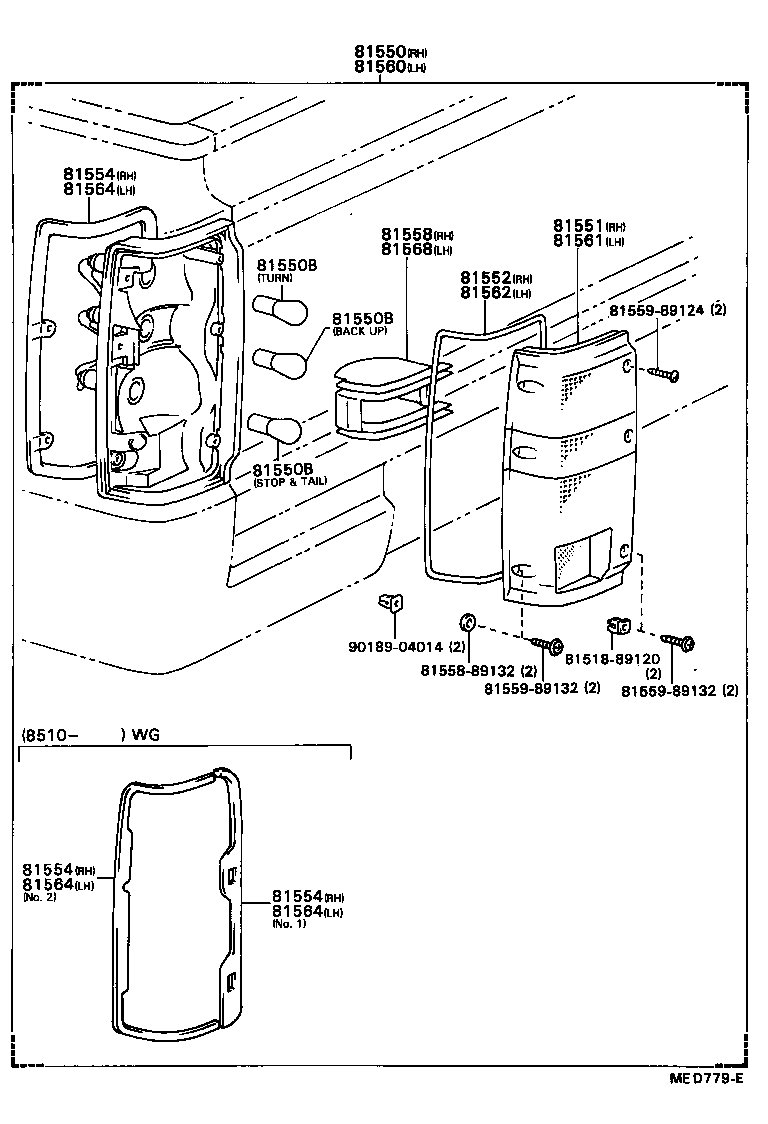

LN65R-MRP (1985)
Toyota Hilux
(8308- )LN5#,6#,RN5#,6#,YN50,51,52,55,57,58,6#..T1,TW,WG..CBU ; (8608-8808)GEN..
GEN=COSTARICA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-39825 |
LN5#,6#,YN50,55,57,6#..(T1,TW)..(ARL,GEN,SA)..CBU |
1 | ||
| 81550-39825 |
LN5#,6#,YN50,55,57,6#..(T1,TW)..(ARL,GEN,SA)..CBU |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
YN65..4F;YN65..ARL,SA;LN5#,6#,YN50,52,55,57,60..ARL,GEN,ME,SA 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
YN65..4F;YN65..ARL,SA;LN5#,6#,YN50,52,55,57,60..ARL,GEN,ME,SA 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-21210 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# 12V 21/5W,12V 21/5W(STOP & TAIL) |
2 | ||
| 99132-21210 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# 12V 21/5W,12V 21/5W(STOP & TAIL) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
YN65..4F;YN65..ARL,SA;LN5#,6#,YN50,52,55,57,60..ARL,GEN,ME,SA 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
YN65..4F;YN65..ARL,SA;LN5#,6#,YN50,52,55,57,60..ARL,GEN,ME,SA 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-21210 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# 12V 21/5W,12V 21/5W(STOP & TAIL) |
2 | ||
| 99132-21210 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# 12V 21/5W,12V 21/5W(STOP & TAIL) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
YN65..4F;YN65..ARL,SA;LN5#,6#,YN50,52,55,57,60..ARL,GEN,ME,SA 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-11230 |
YN65..4F;YN65..ARL,SA;LN5#,6#,YN50,52,55,57,60..ARL,GEN,ME,SA 12V 23W,12V 23W(TURN OR BACK UP) |
4 | ||
| 99132-21210 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# 12V 21/5W,12V 21/5W(STOP & TAIL) |
2 | ||
| 99132-21210 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# 12V 21/5W,12V 21/5W(STOP & TAIL) |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-89131 |
YN65..4F..CBU;YN65..(ARL,SA)..CBU;LN5#,6#,YN50,52,55,57,60..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81551-89131 |
YN65..4F..CBU;YN65..(ARL,SA)..CBU;LN5#,6#,YN50,52,55,57,60..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-89131 |
LN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81552-89131 |
LN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH | ||||
| 81557-89131 |
LN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81557-89131 |
LN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-39785 |
LN5#,6#,YN50,55,57,6#..(T1,TW)..(ARL,GEN,SA)..CBU |
1 | ||
| 81560-39785 |
LN5#,6#,YN50,55,57,6#..(T1,TW)..(ARL,GEN,SA)..CBU |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-89131 |
YN65..4F..CBU;YN65..(ARL,SA)..CBU;LN5#,6#,YN50,52,55,57,60..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81561-89131 |
YN65..4F..CBU;YN65..(ARL,SA)..CBU;LN5#,6#,YN50,52,55,57,60..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-89131 |
LN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81552-89131 |
LN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH | ||||
| 81557-89131 |
LN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| 81557-89131 |
LN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU |
1 | ||
| Common parts | ||||
| 81518-89120 | ||||
| 81558-89132 | ||||
| 81559-89124 | ||||
| 81559-89132 | ||||
| 90189-04014 | ||||
(9708-0108)CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 81279-91D01 | ||||
| 81519-87010 | ||||
| 90075-10019 | ||||
| 90189-04144 | ||||
| Linked diagrams | ||||
| 8115 | ||||
