LN65R-MRP (1985)
Toyota Hilux

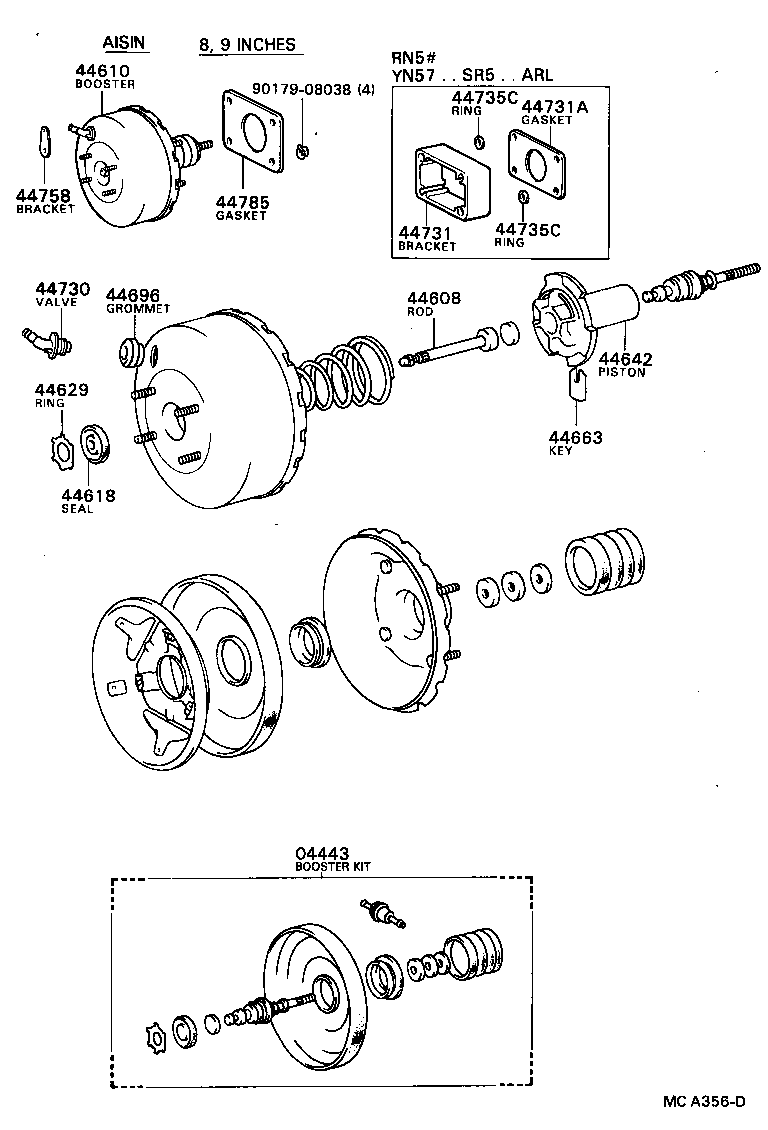

ILLUST NO. 1 OF 2(8308-9201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16080 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35320 |
LN5#,6# AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35450 |
YN50,55,56,57,65,67..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35310 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35480 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44610-35500 |
LN5#,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35460 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44730-10010 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35070 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

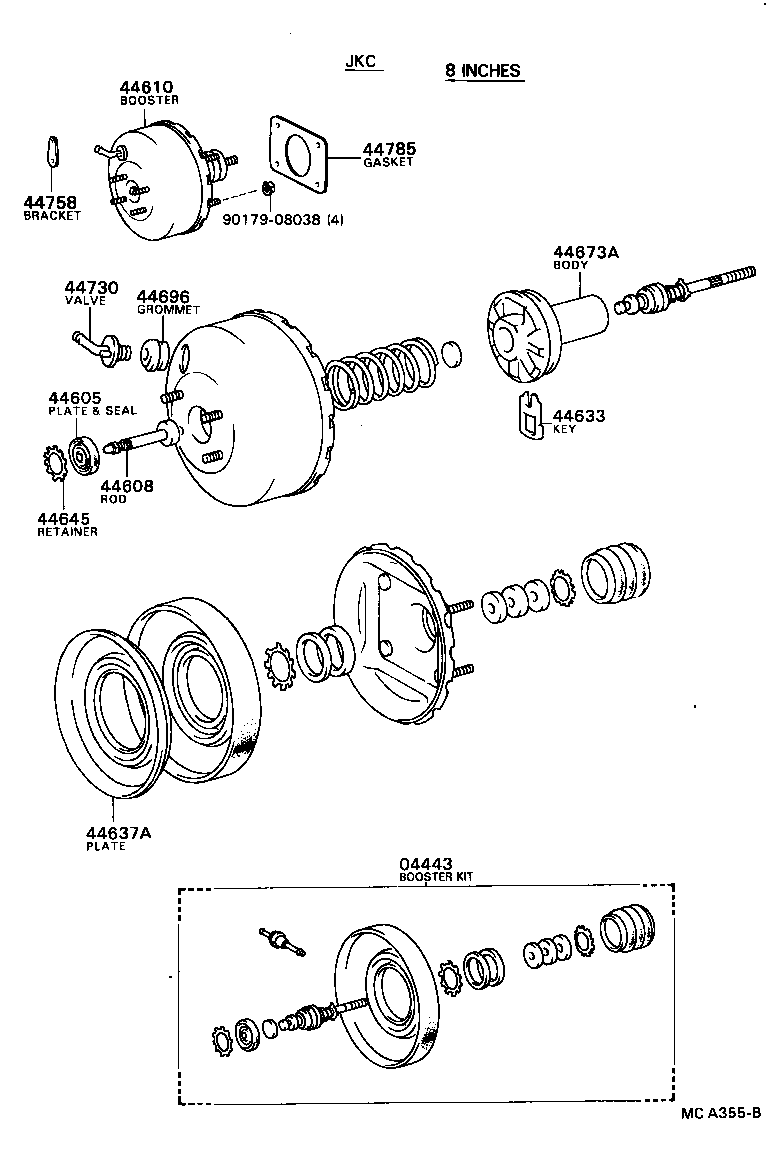

ILLUST NO. 1 OF 2(8308-9407) ; (9407- )LN5#,6#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16080 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35320 |
LN5#,6# AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35450 |
YN50,55,56,57,65,67..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35310 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35480 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44610-35500 |
LN5#,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35460 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642-27120 |
LN6#,YN6#..(DLX,STD)..(GEN,ME) AISIN,8INCHES,FR DRUM |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44730-10010 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35070 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
