LN65R-MRP (1985)
Toyota Hilux
(8308-9508)L,2L

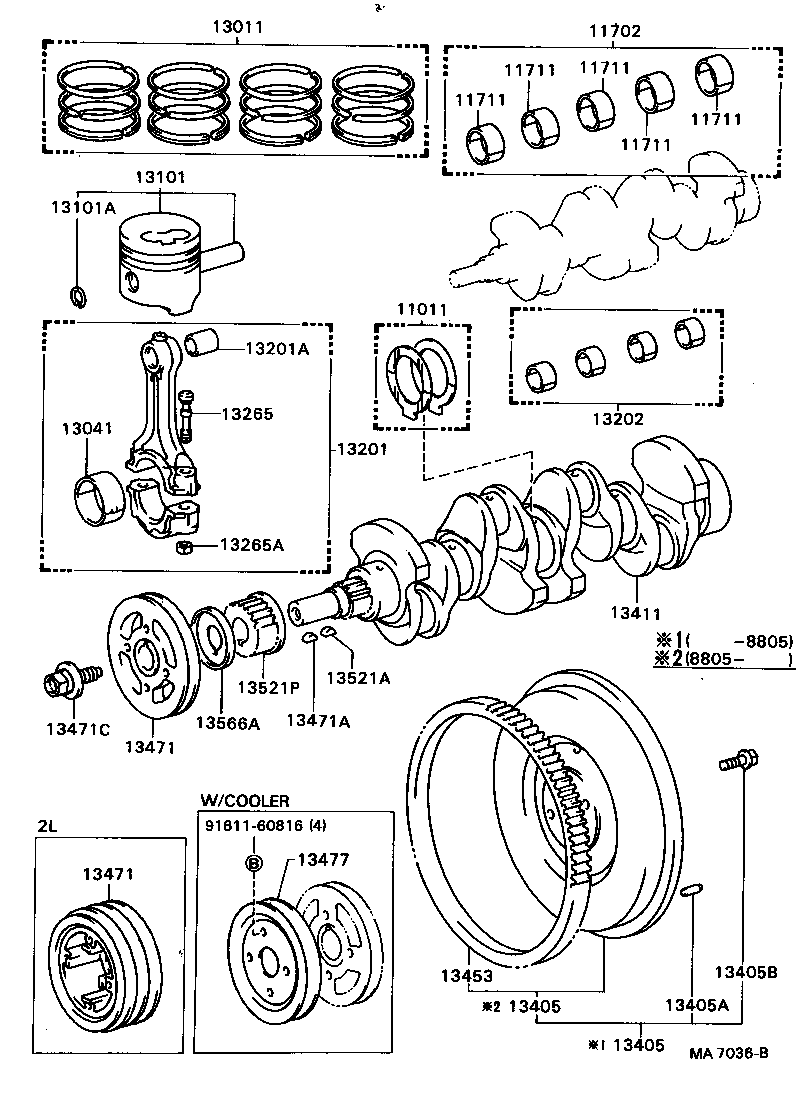

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-54010 |
L,2L..LN5#,6# O/S 0.125,O/S 0.125 |
1 | ||
| 11011-54010 |
L,2L..LN5#,6# STD,STD |
1 | ||
| 11013-54010 |
L,2L..LN5#,6# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-54060 |
L,2L..LN5#,6# U/S 0.50,U/S 0.50 |
1 | ||
| 11704-54060 |
L,2L..LN5#,6# U/S 0.25,U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406003 |
L,2L..LN5#,6# MARK 3,MARK 3 |
5 | ||
| 11701-5406002 |
L,2L..LN5#,6# MARK 2,MARK 2 |
5 | ||
| 11701-5406001 |
L,2L..LN5#,6# MARK 1,MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406003 |
L,2L..LN5#,6# MARK 3,MARK 3 |
5 | ||
| 11701-5406002 |
L,2L..LN5#,6# MARK 2,MARK 2 |
5 | ||
| 11701-5406001 |
L,2L..LN5#,6# MARK 1,MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406003 |
L,2L..LN5#,6# MARK 3,MARK 3 |
5 | ||
| 11701-5406002 |
L,2L..LN5#,6# MARK 2,MARK 2 |
5 | ||
| 11701-5406001 |
L,2L..LN5#,6# MARK 1,MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406003 |
L,2L..LN5#,6# MARK 3,MARK 3 |
5 | ||
| 11701-5406002 |
L,2L..LN5#,6# MARK 2,MARK 2 |
5 | ||
| 11701-5406001 |
L,2L..LN5#,6# MARK 1,MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406003 |
L,2L..LN5#,6# MARK 3,MARK 3 |
5 | ||
| 11701-5406002 |
L,2L..LN5#,6# MARK 2,MARK 2 |
5 | ||
| 11701-5406001 |
L,2L..LN5#,6# MARK 1,MARK 1 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-54060 |
2L..LN51,56,6# O/S 0.50 |
1 | ||
| 13011-54060 |
2L..LN51,56,6# STD,STD |
1 | ||
| 13013-54061 |
2L..LN5#,6# O/S 0.50,O/S 0.50 |
1 | ||
| 13011-54061 |
2L..LN5#,6# STD,STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401203 |
L,2L..LN5#,6#..ARL,EUR,GEN MARK 3,MARK 3 |
4 | ||
| 13041-5401202 |
L,2L..LN5#,6#..ARL,EUR,GEN MARK 2,MARK 2 |
4 | ||
| 13041-5401201 |
L,2L..LN5#,6#..ARL,EUR,GEN MARK 1,MARK 1 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-54060 |
2L..LN51,56,6# STD,STD |
4 | ||
| 13103-54060 |
2L..LN51,56,6# O/S 0.50,O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
L,2L..LN50,51,55,56,60,61,65 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59016 |
L,2L..LN5#,6# |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73083 |
L,2L..LN5#,6# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-54012 |
L,2L..LN5#,6#..ARL,EUR,GEN U/S 0.50 |
1 | ||
| 13204-54012 |
L,2L..LN5#,6#..ARL,EUR,GEN U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-54011 |
L,2L..LN5#,6# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10005 |
L,2L..LN5#,6# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59066 |
2L..LN51,56,6#..MTM |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59066 |
2L..LN51,56,6#..MTM |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
L,2L..LN50,51,55,56,60,61,65..MTM L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12011 |
L,2L..LN5#,6#..MTM |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54030 |
2L..LN51,56,6# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-54010 |
L,2L,3L..LN5#,6#..MTM |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54020 |
2L..LN51,56,6# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54020 |
2L..LN51,56,6# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
L,2L..LN5#,6# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14005 |
L,2L..LN5#,6# *14-1.5PX40-31 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
L,2L..LN5#,6# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54020 |
L,2L..LN5#,6# |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54010 |
L,2L..LN5#,6# |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
