LN65R-KRP (1984)

Toyota Hilux

Production Aug 1984 - Aug 1985
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9201)LN60,65,YN65,67..RHD..GEN

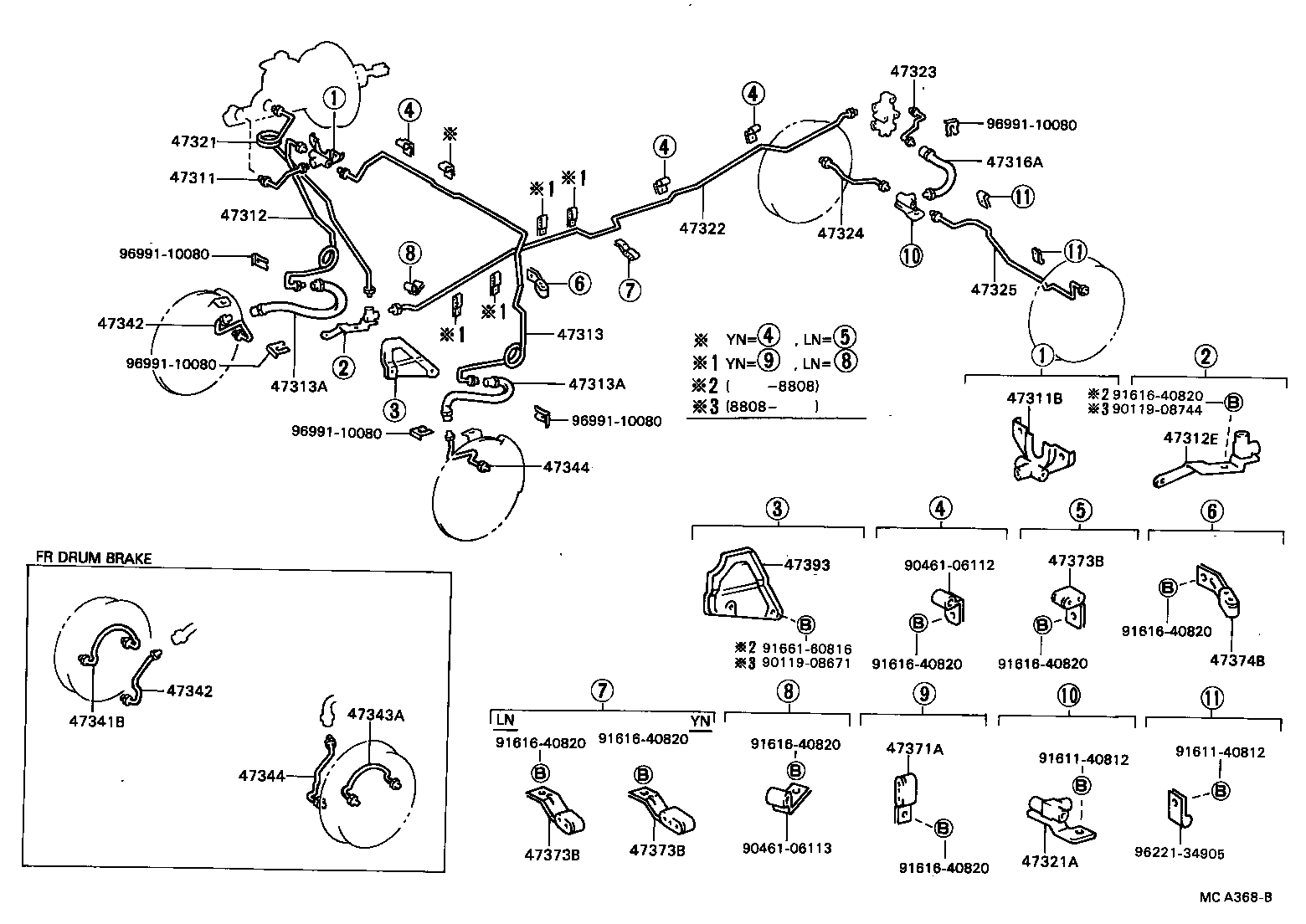

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47316A 47321 47321A 47322 47323 47324 47325 47341B 47342 47342 47343A 47344 47344 47371A 47373B 47373B 47373B 47374B 47393 9011908671 9011908744 9046106112 9046106113 9161140812 9161140812 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9166160816 9622134905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35330

LN6#,YN6#..(DLX,STD)..(GEN,ME)

FR DRUM BRAKE

 1
47311-35350

LN6#,YN60,63,65,67..RHD

FR DISC BRAKE

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

LN5#,6#,RN5#,YN50,52,55,56,6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35440

LN60,65,YN65,67..RHD..GEN

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..GEN,ME

W/TANDEM MASTER CYLINDER

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35310

LN60,65,YN60,65,67..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02383

LN60,65,67,RN67,YN60,62,65,67

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02383

LN60,65,67,RN67,YN60,62,65,67

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34805

LN6#,YN6#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35210

YN57..SR5..(GEN,SA);YN57..RHD..(DLX,STD);LN5#,60,65,YN50,51,55,56,58,60,65,67..RHD

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10162

LN60,61,65,RN6#,YN6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35300

LN60,65,67,RN67,YN60,62,65,67

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35060

LN6#,YN6#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35080

LN6#,YN6#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35090

LN6#,YN6#

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47342-35010

LN6#,YN6#..(DLX,STD)..(GEN,ME)

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35030

LN60,65,YN60,62,65,67

FR DISC BRAKE

 1
47341-35040

LN6#,YN6#..(DLX,STD)..(GEN,ME)

FR DRUM BRAKE

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35030

LN60,65,YN60,62,65,67

FR DISC BRAKE

 1
47341-35040

LN6#,YN6#..(DLX,STD)..(GEN,ME)

FR DRUM BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47342-35010

LN6#,YN6#..(DLX,STD)..(GEN,ME)

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35030

LN60,65,YN60,62,65,67

FR DISC BRAKE

 1
47343-35040

LN6#,YN6#..(DLX,STD)..(GEN,ME)

FR DRUM BRAKE

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35030

LN60,65,YN60,62,65,67

FR DISC BRAKE

 1
47343-35040

LN6#,YN6#..(DLX,STD)..(GEN,ME)

FR DRUM BRAKE

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35030

LN6#,RN67,YN60,63,65,67..RHD

SIDE RAIL SIDE

 4
47373B - CLAMP, BRAKE TUBE, NO.3
47372-35020

LN6#

SIDE RAIL SIDE

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47372-35020

LN6#

SIDE RAIL SIDE

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47372-35020

LN6#

SIDE RAIL SIDE

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35010

LN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD

DASH DANEL SIDE

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35060

LN60,65,67

 1
Common parts
90119-08671
90119-08744
90461-06112
90461-06113
91611-40812
91616-40820
91661-60816
96221-34905
96991-10080

ILLUST NO. 3 OF 3(9708-0108) ; (0108- )LN152..IV3 ; (0108-)KDN190..DCB ; (0108- )LN147,152

Click highlighted areas on diagram

W(LSPV)

diagram 04477 31478D 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47933 47935 47935A 47936 47937 9011908B11 9017008016 9020108062 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 91641H0820 91641H0820 9413000802 9413000802 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
Common parts
90119-08B11
90170-08016
90201-08062
90201-23360
91131-50840
91641-H0820
94130-00802
94512-00800
94612-10800
