LN65L-MRW (1983)
Toyota Hilux

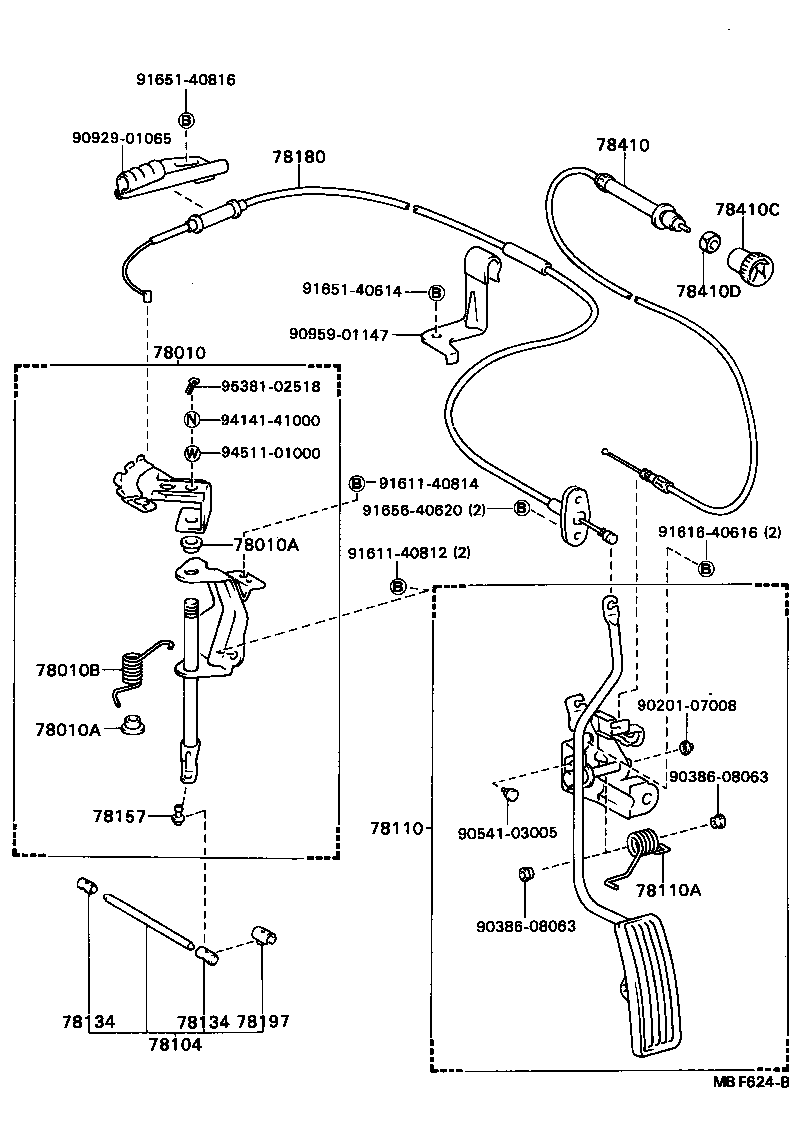

(8308-8408)LN50,55..LHD ; (8408- )LN51,56,65..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-89104 |
LN51,56,60,61,65..MTM |
1 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-23080 |
LN51,56,60,61,65..MTM |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89105 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78104-89106 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89124 |
LN65..LHD |
1 | ||
| 78120-89118 |
LN5#,65..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26060 |
LN50,51,55,56,65..LHD |
1 | ||
| 90508-14075 |
YN50,52,55,56,57,6#..LHD |
1 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78157-10010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-89130 |
YN50,52,55,56,57,60,62,65,67..LHD..(T1,TW) |
1 | ||
| 78180-89134 |
LN50,51,55,56,65..LHD |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78401-89108 |
LN5#,65..LHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-89102 |
LN5#,6# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90170-11006 |
LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90541-03005 | ||||
| 90929-01065 | ||||
| 90959-01147 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91616-40616 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91656-40620 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 95381-02518 | ||||

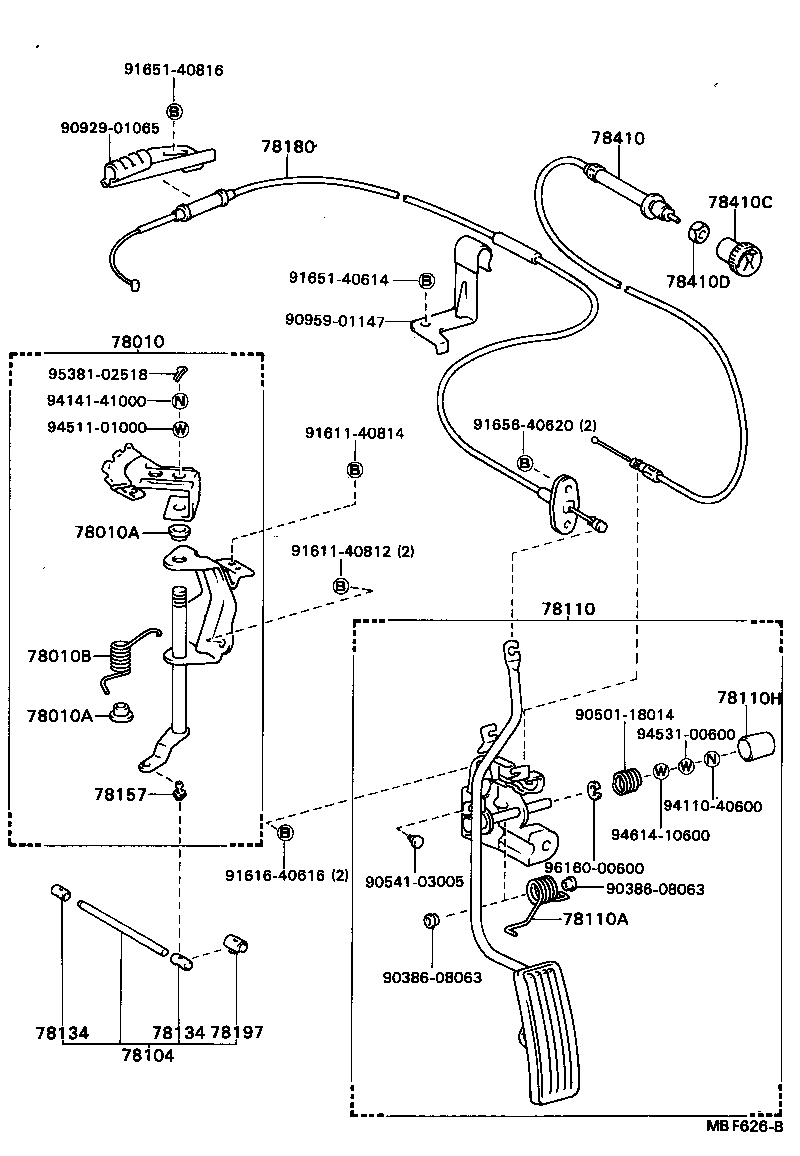

(8308-8408)LN65..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-89104 |
LN51,56,60,61,65..MTM |
1 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-23080 |
LN51,56,60,61,65..MTM |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89105 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78104-89106 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89124 |
LN65..LHD |
1 | ||
| 78120-89118 |
LN5#,65..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26060 |
LN50,51,55,56,65..LHD |
1 | ||
| 90508-14075 |
YN50,52,55,56,57,6#..LHD |
1 | ||
| 78110H - COVER (FOR ACCELERATOR PEDAL ROD) | ||||
| 78116-22010 |
LN6#,YN6# |
1 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78134 - END, ACCELERATOR CONNECTING ROD | ||||
| 78134-10010 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78157-10010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-89130 |
YN50,52,55,56,57,60,62,65,67..LHD..(T1,TW) |
1 | ||
| 78180-89134 |
LN50,51,55,56,65..LHD |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
LN50,51,55,56,60,61,65 |
2 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78401-89108 |
LN5#,65..LHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-89102 |
LN5#,6# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90170-11006 |
LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 90386-08063 | ||||
| 90501-18014 | ||||
| 90541-03005 | ||||
| 90929-01065 | ||||
| 90959-01147 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91616-40616 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91656-40620 | ||||
| 94110-40600 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94531-00600 | ||||
| 94614-10600 | ||||
| 95381-02518 | ||||
| 96160-00600 | ||||

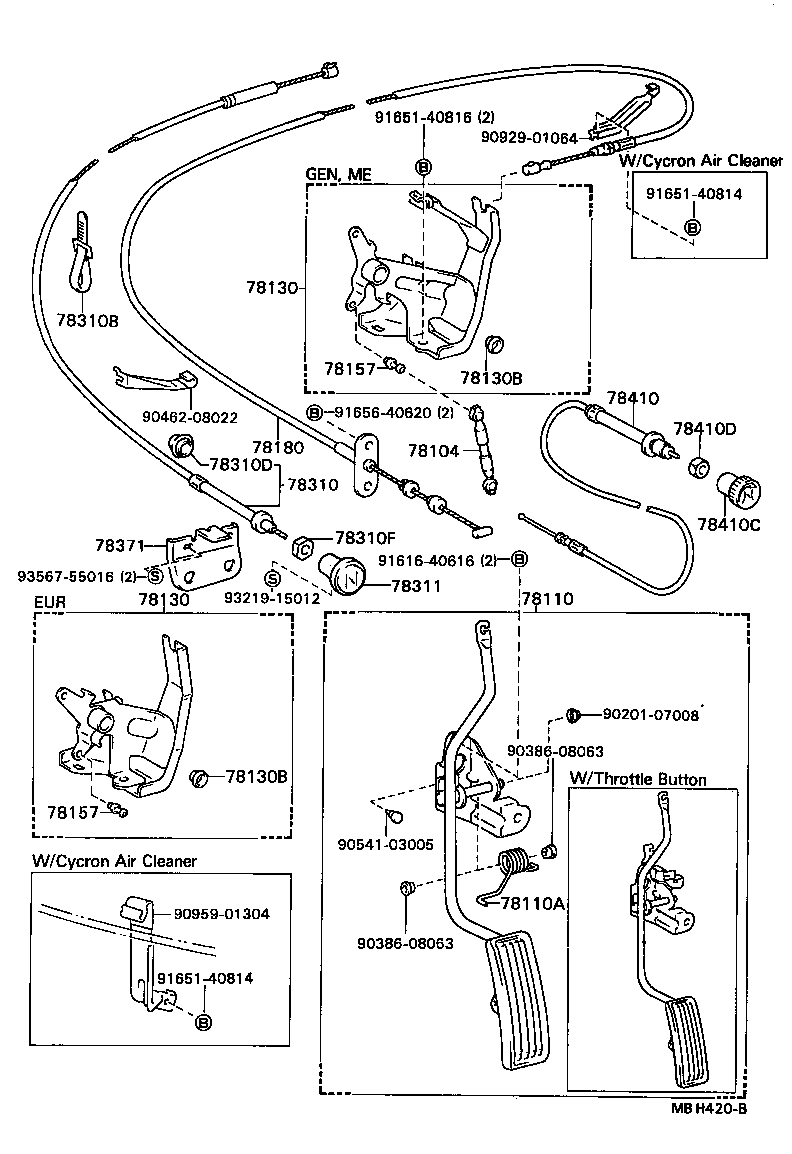

(8408- )YN60,62,65,67..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-89105 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78104-89106 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89124 |
LN65..LHD |
1 | ||
| 78120-89118 |
LN5#,65..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26060 |
LN50,51,55,56,65..LHD |
1 | ||
| 90508-14075 |
YN50,52,55,56,57,6#..LHD |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-89109 |
YN55,56,57,60,63,65,67..ARL,EUR |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-89109 |
YN55,56,57,60,63,65,67..ARL,EUR |
1 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08003 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08003 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78157-10010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-10010 |
LN50,51,55,56,60,61,65 |
1 | ||
| 78157-10010 |
YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-89130 |
YN50,52,55,56,57,60,62,65,67..LHD..(T1,TW) |
1 | ||
| 78180-89134 |
LN50,51,55,56,65..LHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78401-89108 |
LN5#,65..LHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-89102 |
LN5#,6# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 90170-11006 |
LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90462-08022 | ||||
| 90541-03005 | ||||
| 90929-01064 | ||||
| 90959-01304 | ||||
| 91616-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-40620 | ||||
| 93219-15012 | ||||
| 93567-55016 | ||||
