LN65L-MRP3 (1986)

Toyota Hilux

Production Aug 1986 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9201)LN65,YN60,62,65,67..LHD

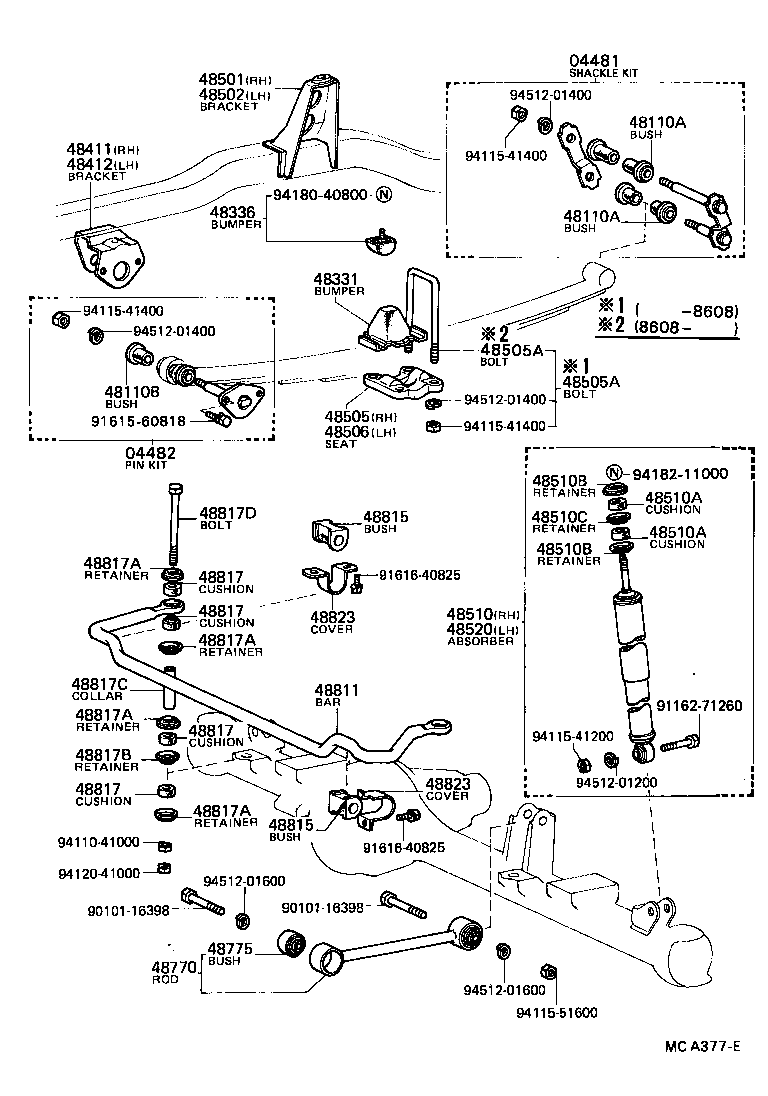

Click highlighted areas on diagram

diagram 04481 04482 48110A 48110A 48110B 48331 48336 48411 48412 48501 48502 48505 48505A 48505A 48506 48510 48510A 48510A 48510B 48510B 48510C 48520 48770 48775 48811 48815 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817C 48817D 48823 48823 9010116398 9010116398 9116271260 9161560818 9161640825 9161640825 9411041000 9411541200 9411541400 9411541400 9411541400 9411551600 9412041000 9418040800 9418211000 9451201200 9451201400 9451201400 9451201400 9451201600 9451201600
Part # Description Qty Price
04481 - SHACKLE KIT, FRONT SPRING
04481-35040

LN60,65,67,RN67,YN60,62,65,67

 2
04482 - PIN KIT, FRONT SPRING
04482-35030

LN60,65,67,RN67,YN60,62,65,67

 2
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18007

LN60,65,67,RN67,YN60,62,65,67

L=56

 4
90385-18046

LN60,65,67,RN67,YN60,62,65,67

L=37

 4
48110A - BUSH(FOR FRONT SPRING SHACKLE)
90385-18007

LN60,65,67,RN67,YN60,62,65,67

L=56

 4
90385-18046

LN60,65,67,RN67,YN60,62,65,67

L=37

 4
48110B - BUSH(FOR FRONT SPRING PIN)
90385-18046

LN60,65,67,RN67,YN60,62,65,67

 4
48331 - BUMPER, FRONT SPRING, NO.1
48304-35110

LN60,65,67,RN67,YN60,62,65,67

LH

 1
48304-35100

LN60,65,67,RN67,YN60,62,65,67

RH

 1
48336 - BUMPER, FRONT SPRING, NO.2
48305-29045

LN60,65,67,RN67,YN60,62,65,67

 2
48411 - BRACKET, FRONT SPRING(FOR FRONT RH)
48411-35040

LN60,65,RN67,YN60,62,65,67

 1
48412 - BRACKET, FRONT SPRING(FOR FRONT LH)
48411-35040

LN60,65,RN67,YN60,62,65,67

 1
48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48512-35040

LN60,65,RN67,YN60,62,65,67

 1
48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48512-35040

LN60,65,RN67,YN60,62,65,67

 1
48505 - SEAT, FRONT SPRING, RH
48471-35010

LN60,65,67,RN67,YN60,62,65,67

 1
48505A - BOLT, U(FOR FRONT SPRING)
90118-14214

LN60,65,YN60,62,65,67

L=152

 2
90118-14213

LN60,65,YN60,62,65,67

L=188

 2
48505A - BOLT, U(FOR FRONT SPRING)
90118-14214

LN60,65,YN60,62,65,67

L=152

 2
90118-14213

LN60,65,YN60,62,65,67

L=188

 2
48506 - SEAT, FRONT SPRING, LH
48472-35020

LN60,65,67,RN67,YN60,62,65,67

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-39455

LN6#,YN6#..EUR,GEN,ME

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LN6#,RN61,YN6#

T=15

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

LN6#,RN61,YN6#

T=15

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

LN6#,RN61,YN6#

ID=10.5

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

LN6#,RN61,YN6#

ID=10.5

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02007

LN6#,YN6#

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39455

LN6#,YN6#..EUR,GEN,ME

 1
48770 - ROD SUB-ASSY, TORQUE
48760-35020

LN60,65,67,RN67,YN60,62,65,67

 1
48775 - BUSH, TORQUE ROD
48725-35010

LN60,65,67,RN67,YN60,62,65,67

 2
48811 - BAR, STABILIZER, FRONT
48811-35091

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-20030

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 2
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-20030

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02034

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 2
48817C - COLLAR(FOR STABILIZER BAR)
90440-14003

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 2
48817D - BOLT(FOR FRONT STABILIZER)
90101-10058

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 2
48823 - COVER, STABILIZER LINK(FOR FRONT)
48823-35030

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 2
48823 - COVER, STABILIZER LINK(FOR FRONT)
48823-35030

LN65,YN60,62,65,67..LHD..(EUR,GEN)

 2
Common parts
90101-16398
91162-71260
91615-60818
91616-40825
94110-41000
94115-41200
94115-41400
94115-51600
94120-41000
94180-40800
94182-11000
94512-01200
94512-01400
94512-01600
