LN65L-MRP3 (1986)

Toyota Hilux

Production Aug 1986 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9508)L,2L

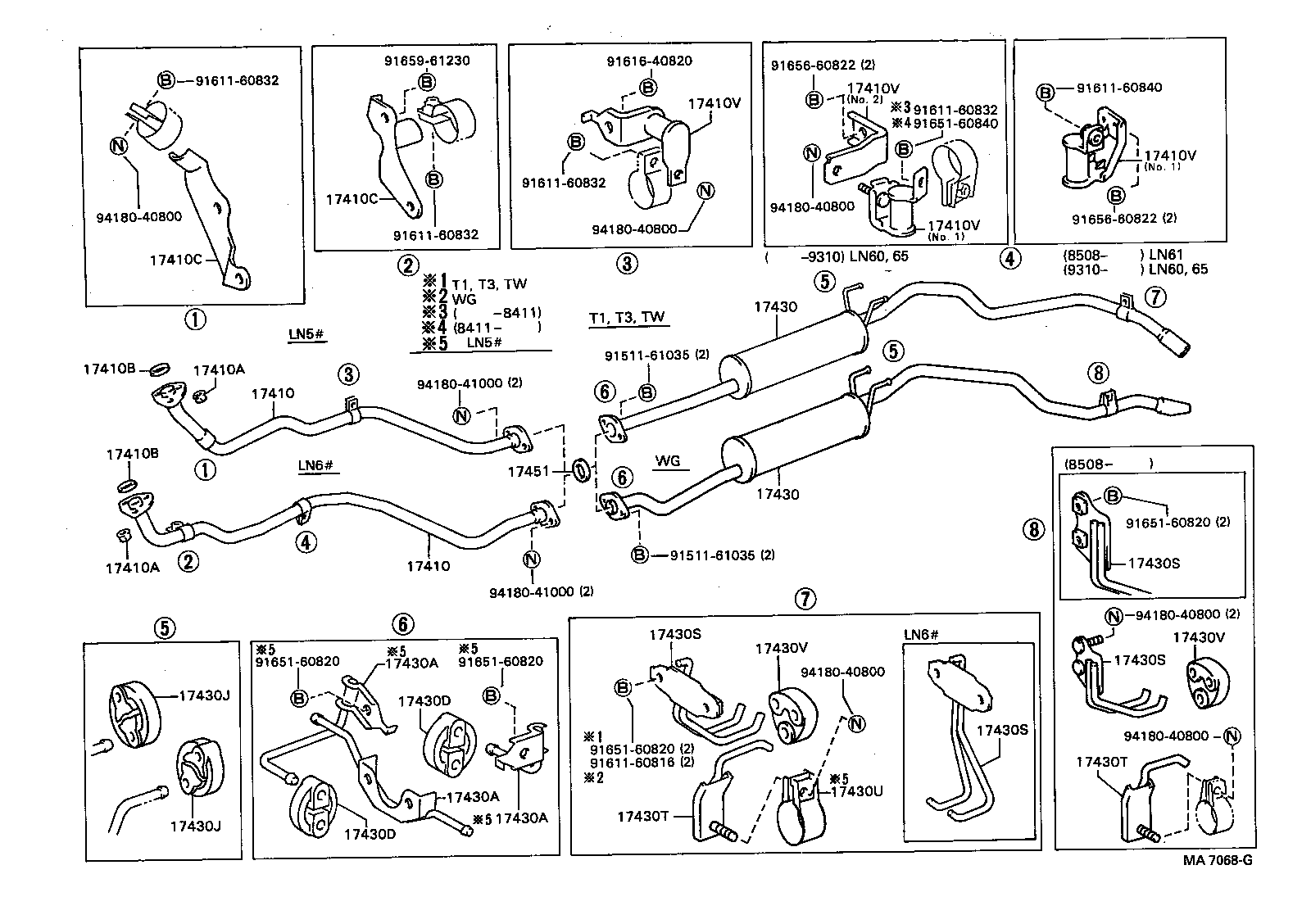

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410V 17410V 17410V 17410V 17430 17430 17430A 17430A 17430A 17430D 17430D 17430J 17430J 17430S 17430S 17430S 17430S 17430T 17430T 17430U 17430V 17430V 17451 9151161035 9151161035 9161160816 9161160832 9161160832 9161160832 9161160832 9161160840 9161640820 9165160820 9165160820 9165160820 9165160820 9165160840 9165660822 9165660822 9165961230 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54290

2L..LN65

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-54290

2L..LN65

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

L,2L,1Y#,2Y,3Y..LN5#,6#,YN5#,6#

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

L,2L,1Y#,2Y,3Y..LN5#,6#,YN5#,6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

L,2L..LN5#,6#

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

L,2L..LN5#,6#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-54130

L,2L..LN5#,65..4FC,5F

 1
17571-54170

2L..LN61,65

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-54130

L,2L..LN5#,65..4FC,5F

 1
17571-54170

2L..LN61,65

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54060

2L..LN60,65

NO.2

 1
17562-54090

2L..LN60;2L..LN65..GEN

NO.1

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54060

2L..LN60,65

NO.2

 1
17562-54090

2L..LN60;2L..LN65..GEN

NO.1

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54060

2L..LN60,65

NO.2

 1
17562-54090

2L..LN60;2L..LN65..GEN

NO.1

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17572-54060

2L..LN60,65

NO.2

 1
17562-54090

2L..LN60;2L..LN65..GEN

NO.1

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54350

2L,3Y..LN6#,YN6#..T1,TW

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-54350

2L,3Y..LN6#,YN6#..T1,TW

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35080

2L,3Y,4Y..LN60,65,YN60,62,65,67

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35080

2L,3Y,4Y..LN60,65,YN60,62,65,67

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35080

2L,3Y,4Y..LN60,65,YN60,62,65,67

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

L,22R#,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

L,22R#,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

L,22R#,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

L,22R#,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-54020

2L,3Y,4Y..LN60,65,YN60,62,65,67..T1,TW

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-54020

2L,3Y,4Y..LN60,65,YN60,62,65,67..T1,TW

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-54020

2L,3Y,4Y..LN60,65,YN60,62,65,67..T1,TW

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-54020

2L,3Y,4Y..LN60,65,YN60,62,65,67..T1,TW

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

L,22R,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,67,YN5#,6#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

L,22R,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,67,YN5#,6#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35010

L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,61,YN5#,6#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35010

L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,61,YN5#,6#

 1
17451 - GASKET, EXHAUST PIPE
90917-06025

2L..LN65..GEN;2L..LN65..TW..EUR;2L..LN65..EUR..IV;2L,3Y,4Y..LN60,61,YN6#;2L..LN65..XTR..(ARL,EUR)

 1
Common parts
91511-61035
91611-60816
91611-60832
91611-60840
91616-40820
91651-60820
91651-60840
91656-60822
91659-61230
94180-40800
94180-41000
