LN65L-MR3 (1986)

Toyota Hilux

Production Aug 1986 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )LN5#,6#,RN5#,YN5#,6#

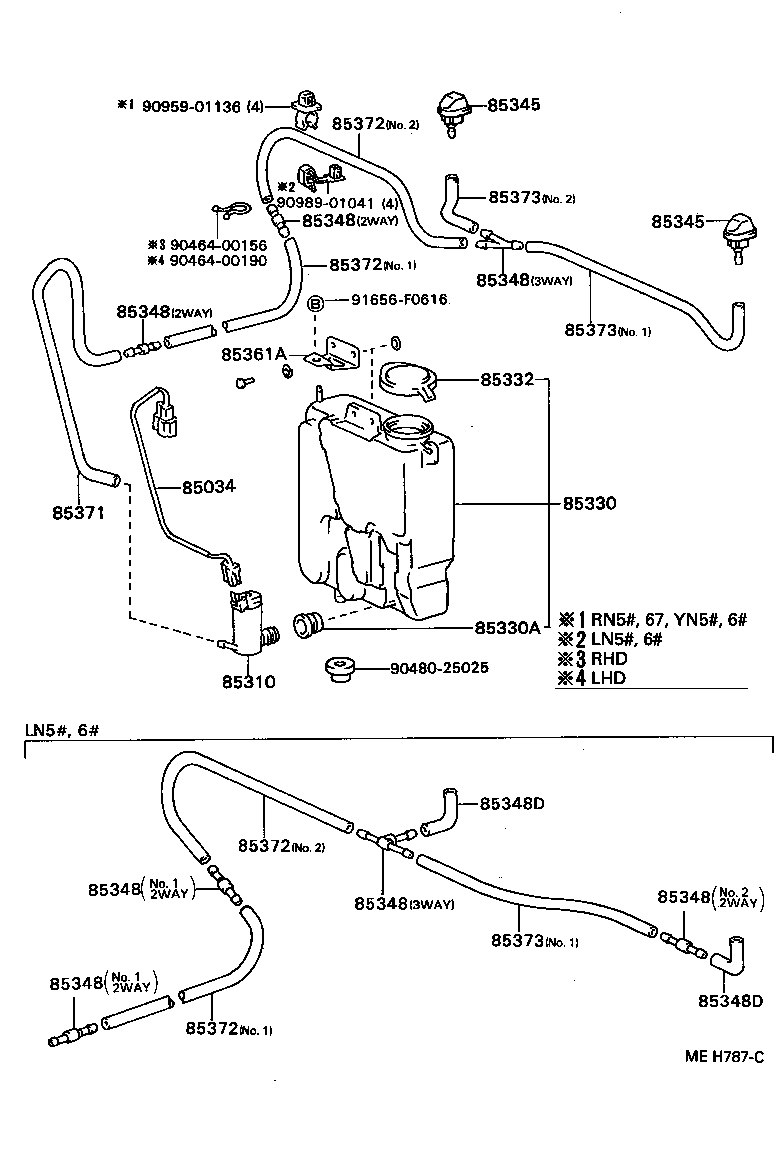

Click highlighted areas on diagram

diagram 85034 85310 85330 85330A 85332 85345 85345 85348 85348 85348 85348 85348 85348 85348 85348D 85348D 85361A 85371 85372 85372 85372 85372 85373 85373 85373 9046400156 9046400190 9048025025 9095901136 9098901041 91656F0616
Part # Description Qty Price
85034 - WIRE, WASHER
85034-89101

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-89121

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-89105

LN5#,6#,RN5#,YN5#,6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-89105

LN5#,6#,RN5#,YN5#,6#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-89121

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33334

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)

*H,L=400

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

LN5#,6#,YN5#,6#

*H,L=700,NO.2

 1
90446-06013

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

*H,L=800,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

LN5#,6#,YN5#,6#

*H,L=700,NO.2

 1
90446-06013

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

*H,L=800,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

LN5#,6#,YN5#,6#

*H,L=700,NO.2

 1
90446-06013

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

*H,L=800,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

LN5#,6#,YN5#,6#

*H,L=700,NO.2

 1
90446-06013

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

*H,L=800,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

LN5#,6#,YN5#,6#

*H,L=100,NO.1,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

LN5#,6#,YN5#,6#

*H,L=100,NO.1,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

LN5#,6#,YN5#,6#

*H,L=100,NO.1,NO.2

 1
Common parts
90464-00156
90464-00190
90480-25025
90959-01136
90989-01041
91656-F0616

(0408-0808)TH ; (0408-0903)ARL,GCC,GEN,IDN,MA,PHL,SA

Click highlighted areas on diagram

diagram 827110K070 8271116820 8271152070 8271152090 85035 85035 85301 85310 85330 85330A 85332 85336D 85348 85348G 85371 85372 85373 85373 9011906818 90119T0144 9046707076A0
Part # Description Qty Price
Common parts
82711-0K070
82711-16820
82711-52070
82711-52090
90119-06818
90119-T0144
90467-07076A0
