LN61RG-MDQ (1985)
Toyota Hilux
Production
Aug 1985
-
Mar 1989
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508-8607)2L

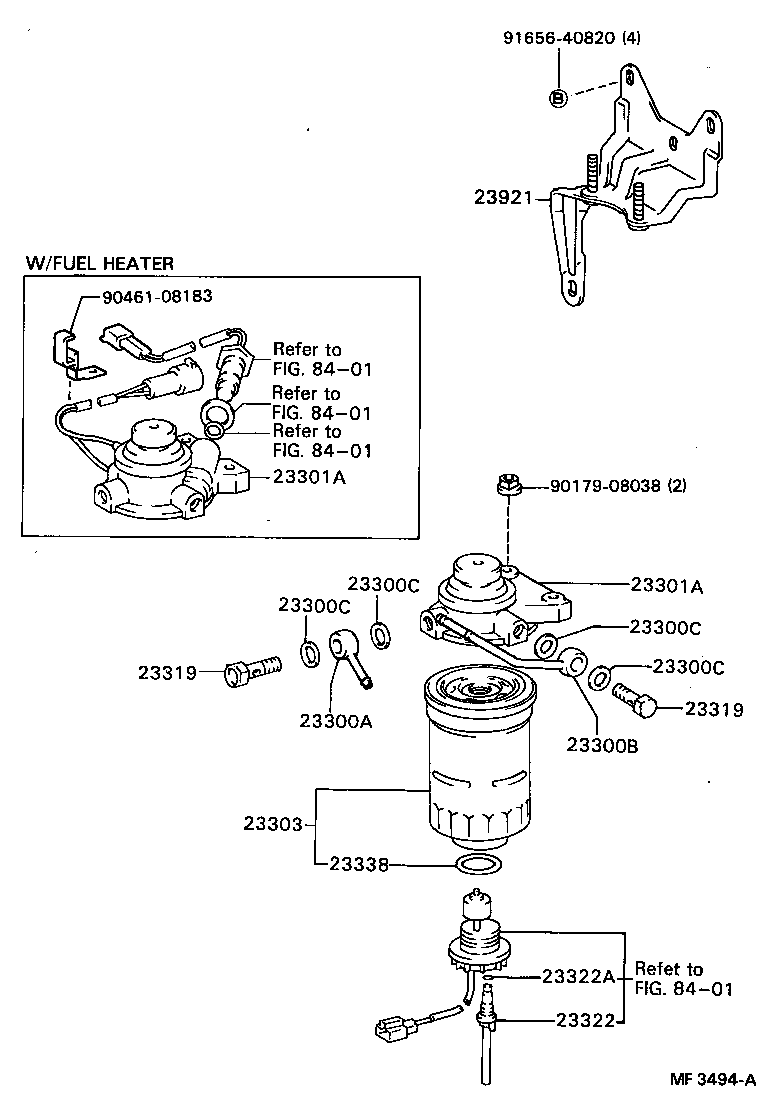

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90405-08016 |
2L..LN5#,6# |
1 | ||
| 90405-08016 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
L,2L..LN5#,6# |
1 | ||
| 23323-54160 |
2L..LN5#,6# |
1 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-64010 |
2L..LN5#,6# |
1 | ||
| 23301-54300 |
2L..LN5#,6# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-64010 |
2L..LN5#,6# |
1 | ||
| 23301-54300 |
2L..LN5#,6# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-54071 |
L,2L..LN5#,6# |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
L,2L..LN5#,6# |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
L,2L..LN5#,6# |
2 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-54010 |
L,2L..LN5#,6# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
L,2L,3L..LN5#,6# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
L,2L..LN5#,6# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54090 |
L,2L..LN5#,6#..RHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90461-08183 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
