LN57R-MDPN (1995)

Toyota Hilux

Production Aug 1995 - Jul 1998
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )2L,3L

Click highlighted areas on diagram

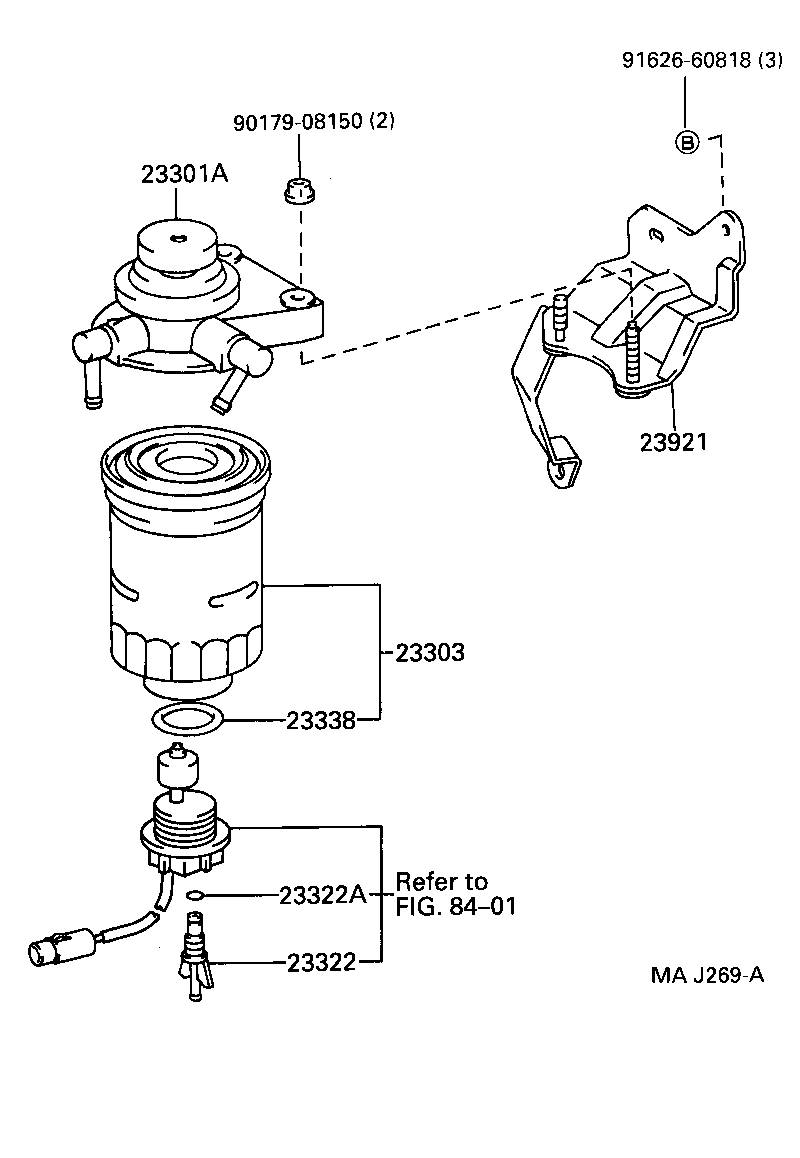

diagram 23301A 23303 23322 23322A 23338 23921 8401 9017908150 9162660818
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54410

2L,3L..LN5#,67

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-54071

L,2L..LN5#,6#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-54010

L,2L..LN5#,6#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

L,2L,3L..LN5#,6#

 1
23338 - GASKET(FOR WARNING SWITCH)
23338-54010

L,2L..LN5#,6#

 1
23921 - SUPPORT, FUEL FILTER
23921-54090

L,2L..LN5#,6#..RHD

 1
23921-54270

2L,3L..LN5#,67

 1
Common parts
90179-08150
91626-60818
Linked diagrams
8401
