LN56R-PRQ (1983)
Toyota Hilux
(8308-8808)2L..LN56..4FC ; (8308- )L,2L..LN55,56,65..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

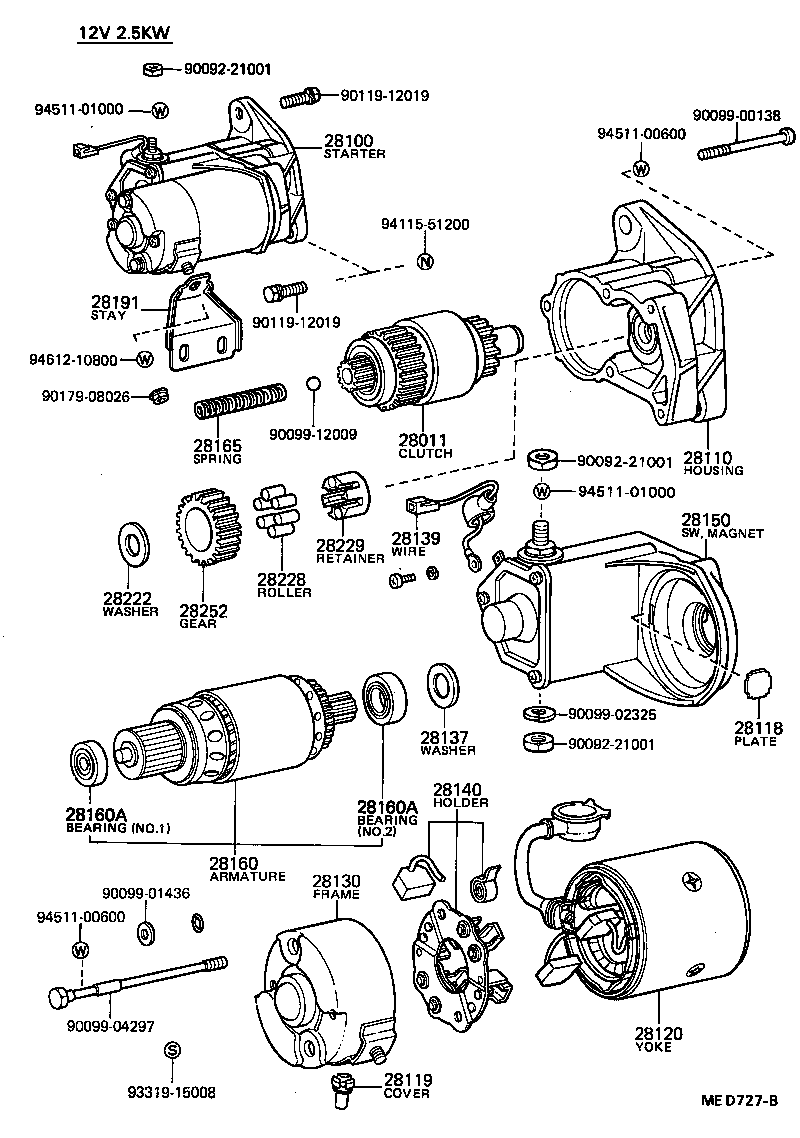

| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28011-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54090 |
2L..LN56..4FC 12V 2.7KW,12V 2.5KW |
1 | ||
| 28100-54061 |
2L..LN56..4FC 12V 2.5KW,12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28115-54011 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28119-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28120-47040 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28120-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-54060 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54023 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28139-54090 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28140-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-54051 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28150-54011 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28150-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28160-47040 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2L..LN56..4FC 12V 2.5KW,NO.1 |
1 | ||
| 90099-10119 |
2L..LN56..4FC 12V 2.5KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L..LN5#,6# 12V 2.0KW,NO.2 |
1 | ||
| 28253-54070 |
L,2L..LN5#,6# 12V 2.0KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
2L..LN56..4FC 12V 2.5KW,NO.1 |
1 | ||
| 90099-10119 |
2L..LN56..4FC 12V 2.5KW,NO.2 |
1 | ||
| 90099-10131 |
L,2L..LN5#,6# 12V 2.0KW,NO.2 |
1 | ||
| 28253-54070 |
L,2L..LN5#,6# 12V 2.0KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28165-26040 |
L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28191 - STAY, STARTER | ||||
| 28191-54010 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2L..LN56..4FC 12V 2.5KW |
6 | ||
| 28228-26040 |
L,22R#,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| 28229-26040 |
L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28254-77090 |
2L..LN56..4FC 12V 2.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08026 | ||||
| 93319-15008 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
