Toyota Hilux LN56 RADIATOR GRILLE

Manufacturers Home
Toyota
GR
HILUX
LN56R-MRN (1984)
5351 - RADIATOR GRILLE

LN56R-MRN (1984)

Toyota Hilux

Production Aug 1984 - Jul 1998

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8308-8608)

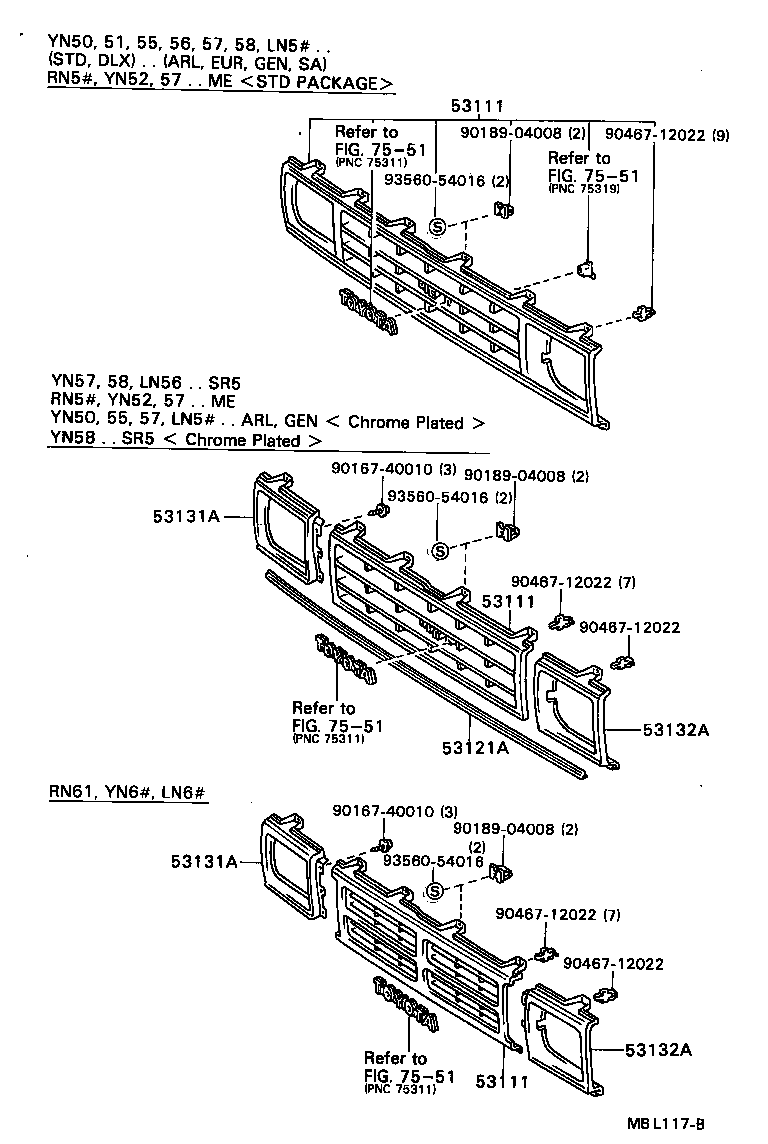

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-89109	LN5#,YN50,55,56,57..STD	08/1983 - 08/1986	1
53111-89126	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53100-89118	LN5#,YN50,51,55,56,57,58..STD	08/1986 - 07/1994	1
53111-89128	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53111-89128	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53111 - GRILLE, RADIATOR
53100-89109	LN5#,YN50,55,56,57..STD	08/1983 - 08/1986	1
53111-89126	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53100-89118	LN5#,YN50,51,55,56,57,58..STD	08/1986 - 07/1994	1
53111-89128	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53111-89128	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53111 - GRILLE, RADIATOR
53100-89109	LN5#,YN50,55,56,57..STD	08/1983 - 08/1986	1
53111-89126	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53100-89118	LN5#,YN50,51,55,56,57,58..STD	08/1986 - 07/1994	1
53111-89128	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53111-89128	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53131A - DOOR, HEADLAMP, RH
53131-89111	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53131-89114	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53131-89114	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53131A - DOOR, HEADLAMP, RH
53131-89111	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53131-89114	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53131-89114	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53132A - DOOR, HEADLAMP, LH
53132-89110	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53132-89113	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53132-89113	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53132A - DOOR, HEADLAMP, LH
53132-89110	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53132-89113	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53132-89113	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
Common parts
90167-40010
90189-04008
90467-12008
93560-54020
Linked diagrams
7551

(8608-9407)

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-89109	LN5#,YN50,55,56,57..STD	08/1983 - 08/1986	1
53111-89126	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53100-89118	LN5#,YN50,51,55,56,57,58..STD	08/1986 - 07/1994	1
53111-89128	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53111-89128	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53111 - GRILLE, RADIATOR
53100-89109	LN5#,YN50,55,56,57..STD	08/1983 - 08/1986	1
53111-89126	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53100-89118	LN5#,YN50,51,55,56,57,58..STD	08/1986 - 07/1994	1
53111-89128	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53111-89128	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53111 - GRILLE, RADIATOR
53100-89109	LN5#,YN50,55,56,57..STD	08/1983 - 08/1986	1
53111-89126	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53100-89118	LN5#,YN50,51,55,56,57,58..STD	08/1986 - 07/1994	1
53111-89128	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53111-89128	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53131A - DOOR, HEADLAMP, RH
53131-89111	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53131-89114	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53131-89114	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53131A - DOOR, HEADLAMP, RH
53131-89111	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53131-89114	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53131-89114	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53132A - DOOR, HEADLAMP, LH
53132-89110	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53132-89113	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53132-89113	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53132A - DOOR, HEADLAMP, LH
53132-89110	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53132-89113	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53132-89113	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
Common parts
90167-40010
90189-04008
90467-12022
93560-54016
Linked diagrams
7551

(9407- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-89109	LN5#,YN50,55,56,57..STD	08/1983 - 08/1986	1
53111-89126	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53100-89118	LN5#,YN50,51,55,56,57,58..STD	08/1986 - 07/1994	1
53111-89128	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53111-89128	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53131A - DOOR, HEADLAMP, RH
53131-89111	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53131-89114	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
53131-89114	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53132A - DOOR, HEADLAMP, LH
53132-89110	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1987 - 08/1988	1
53132-89113	LN5#,6#,RN58,67	07/1994 - 07/1998	1
53132-89113	LN5#,YN57 THAILAND SPEC,CHROME PLATED	08/1988 - 07/1994	1
Common parts
90167-40010
90189-04008
90467-12022
93560-54016
Linked diagrams
7551

(9708-0108) ; (0108-0109)ARL,SA,TH ; (0109-0203)SA

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90467-12040
93560-13012
Linked diagrams
7551

LN56R-MRN (1984)

(8308-8608)

(8608-9407)

(9407- )

(9708-0108) ; (0108-0109)ARL,SA,TH ; (0109-0203)SA
