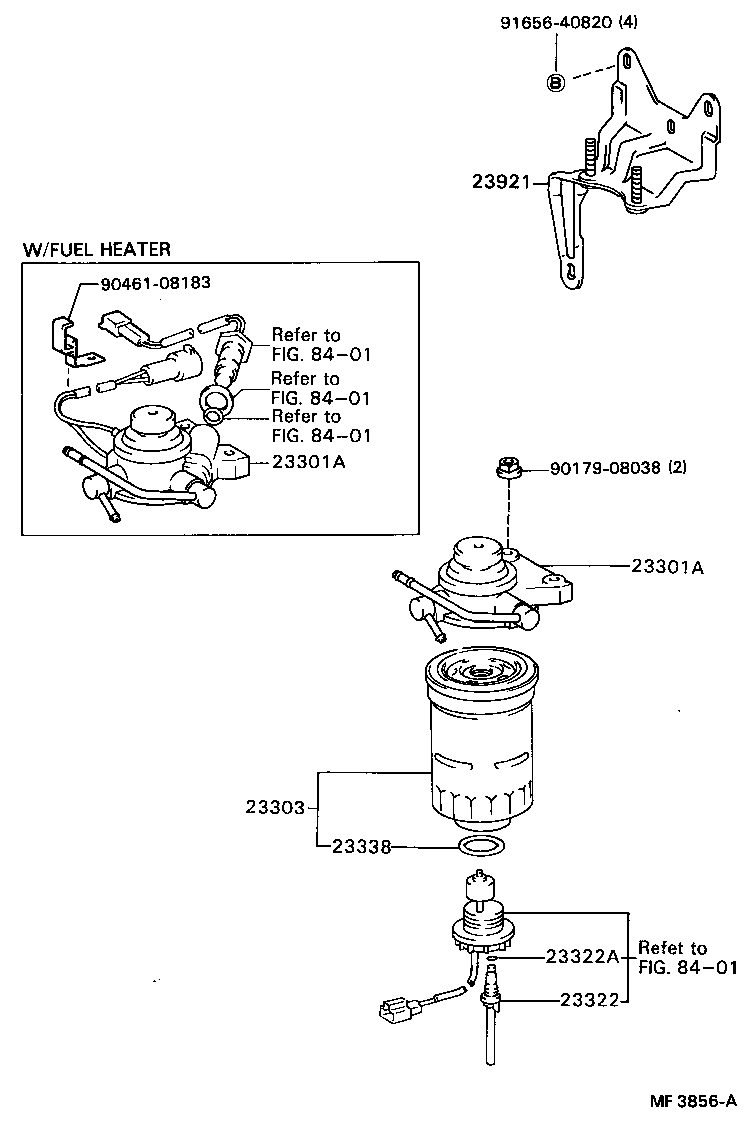

LN56R-MRN (1984)
Toyota Hilux
(9508- )2L,3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54310 |
2L..LN5#,6# |
1 | ||
| 23301-64010 |
2L..LN5#,6# |
1 | ||
| 23301-54410 |
2L,3L..LN5#,67 |
1 | ||
| 23301-54300 |
2L..LN5#,6# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-54071 |
L,2L..LN5#,6# |
1 | ||
| 23303-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-54010 |
L,2L..LN5#,6# |
1 | ||
| 23322-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
L,2L,3L..LN5#,6# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
L,2L..LN5#,6# |
1 | ||
| 23344-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54090 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23921-54180 |
2L..LN5#,6#..RHD |
1 | ||
| 23921-54270 |
2L,3L..LN5#,67 |
1 | ||
| Common parts | ||||
| 90179-08150 | ||||
| 91626-60818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8308-8508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22501A - PUMP SUB-ASSY, PRIMING | ||||
| 22501-54010 |
L,2L..LN5#,6# |
1 | ||
| 22501B - GASKET(FOR PRIMING PUMP) | ||||
| 23344-54020 |
L,2L..LN5#,6# |
1 | ||
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90405-08016 |
2L..LN5#,6# |
1 | ||
| 90405-08016 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90405-08016 |
2L..LN5#,6# |
1 | ||
| 90405-08016 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
L,2L..LN5#,6# |
1 | ||
| 23323-54160 |
2L..LN5#,6# |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
L,2L..LN5#,6# |
1 | ||
| 23323-54160 |
2L..LN5#,6# |
1 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-54080 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-54071 |
L,2L..LN5#,6# |
1 | ||
| 23303-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23310C - VALVE SUB-ASSY, FUEL FILTER | ||||
| 23316-54010 |
L,2L..LN5#,6# |
2 | ||
| 23310C - VALVE SUB-ASSY, FUEL FILTER | ||||
| 23316-54010 |
L,2L..LN5#,6# |
2 | ||
| 23314 - SPRING, FUEL FILTER | ||||
| 23314-54010 |
L,2L..LN5#,6# |
1 | ||
| 23318 - BOLT, UNION | ||||
| 23323-54020 |
L,2L..LN5#,6# |
1 | ||
| 23318A - GASKET(FOR UNION BOLT) | ||||
| 15318-44010 |
L,2L..LN5#,6# |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
L,2L..LN5#,6# |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
L,2L..LN5#,6# |
2 | ||
| 23321A - GASKET, FUEL FILTER CAP | ||||
| 23312-54010 |
L,2L..LN5#,6# |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-54010 |
L,2L..LN5#,6# |
1 | ||
| 23322-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
L,2L,3L..LN5#,6# |
1 | ||
| 23323 - NUT(FOR FUEL FILTER CASE SUPPORT) | ||||
| 23323-54010 |
L,2L..LN5#,6# |
1 | ||
| 23329B - FLOAT, LEVEL WARNING | ||||
| 23329-54010 |
L,2L..LN5#,6# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
L,2L..LN5#,6# |
1 | ||
| 23344-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54090 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23921-54180 |
2L..LN5#,6#..RHD |
1 | ||
| 23921-54270 |
2L,3L..LN5#,67 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54090 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23921-54180 |
2L..LN5#,6#..RHD |
1 | ||
| 23921-54270 |
2L,3L..LN5#,67 |
1 | ||
| Common parts | ||||
| 90179-10033 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8508-8607)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90405-08016 |
2L..LN5#,6# |
1 | ||
| 90405-08016 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
L,2L..LN5#,6# |
1 | ||
| 23323-54160 |
2L..LN5#,6# |
1 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
L,2L..LN5#,6# |
4 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54310 |
2L..LN5#,6# |
1 | ||
| 23301-64010 |
2L..LN5#,6# |
1 | ||
| 23301-54410 |
2L,3L..LN5#,67 |
1 | ||
| 23301-54300 |
2L..LN5#,6# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54310 |
2L..LN5#,6# |
1 | ||
| 23301-64010 |
2L..LN5#,6# |
1 | ||
| 23301-54410 |
2L,3L..LN5#,67 |
1 | ||
| 23301-54300 |
2L..LN5#,6# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-54071 |
L,2L..LN5#,6# |
1 | ||
| 23303-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
L,2L..LN5#,6# |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
L,2L..LN5#,6# |
2 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-54010 |
L,2L..LN5#,6# |
1 | ||
| 23322-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
L,2L,3L..LN5#,6# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
L,2L..LN5#,6# |
1 | ||
| 23344-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54090 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23921-54180 |
2L..LN5#,6#..RHD |
1 | ||
| 23921-54270 |
2L,3L..LN5#,67 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90461-08183 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8607-9508)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54310 |
2L..LN5#,6# |
1 | ||
| 23301-64010 |
2L..LN5#,6# |
1 | ||
| 23301-54410 |
2L,3L..LN5#,67 |
1 | ||
| 23301-54300 |
2L..LN5#,6# |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54310 |
2L..LN5#,6# |
1 | ||
| 23301-64010 |
2L..LN5#,6# |
1 | ||
| 23301-54410 |
2L,3L..LN5#,67 |
1 | ||
| 23301-54300 |
2L..LN5#,6# |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-54071 |
L,2L..LN5#,6# |
1 | ||
| 23303-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-54010 |
L,2L..LN5#,6# |
1 | ||
| 23322-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
L,2L,3L..LN5#,6# |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23338-54010 |
L,2L..LN5#,6# |
1 | ||
| 23344-64010 |
2L,3L..LN5#,6# |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54090 |
L,2L..LN5#,6#..RHD |
1 | ||
| 23921-54180 |
2L..LN5#,6#..RHD |
1 | ||
| 23921-54270 |
2L,3L..LN5#,67 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90461-08183 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
