LN56L-MDC3 (1986)

Toyota Hilux

Production Aug 1986 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

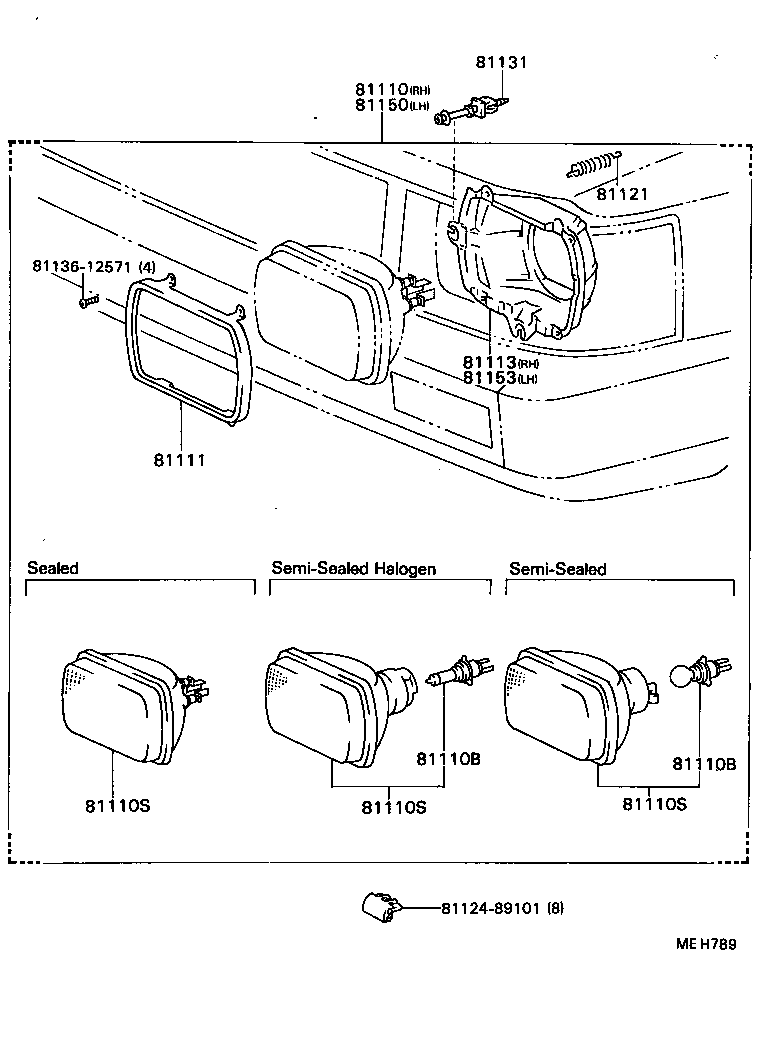

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81110S 81110S 81110S 81111 81113 81121 8112489101 81131 8113612571 81150 81153
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80375

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

SEALED,HALOGEN,WHITE

 1
81110-80372

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

*SSB,HALOGEN,YELLOW

 1
81110-80367

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

SEALED

 1
81110-80369

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

*SSB,WHITE

 1
81110-80371

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

*SSB,HALOGEN,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LN5#,60,65,RN61,YN50,55,56,57,60,62,65,67..EUR,GEN

12V 60/55W,*HAL *WH,12V 60/55W,*SSB,HALOGEN,WHITE

 2
90981-13016

LN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 60/55W,*HAL *YE,12V 60/55W,*SSB,HALOGEN,YELLOW

 2
90981-13013

LN5#,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN

12V 45/40W,WHITE,12V 45/40W,*SSB,WHITE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

LN5#,60,65,RN61,YN50,55,56,57,60,62,65,67..EUR,GEN

12V 60/55W,*HAL *WH,12V 60/55W,*SSB,HALOGEN,WHITE

 2
90981-13016

LN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 60/55W,*HAL *YE,12V 60/55W,*SSB,HALOGEN,YELLOW

 2
90981-13013

LN5#,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN

12V 45/40W,WHITE,12V 45/40W,*SSB,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

LN5#,65,RN61,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 60/55W,*HWS,12V 60/55W,*SSB,HALOGEN,WHITE

 2
90981-04020

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

12V 65/35W,*HAL,*WB,12V 65/35W,SEALED,HALOGEN

 2
90981-04004

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

12V 65/55W,*WB,12V 65/55W,SEALED

 2
90981-04006

LN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

 2
90981-04009

LN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 60/55W,*HYS,12V 60/55W,*SSB,HALOGEN,YELLOW

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

LN5#,65,RN61,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 60/55W,*HWS,12V 60/55W,*SSB,HALOGEN,WHITE

 2
90981-04020

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

12V 65/35W,*HAL,*WB,12V 65/35W,SEALED,HALOGEN

 2
90981-04004

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

12V 65/55W,*WB,12V 65/55W,SEALED

 2
90981-04006

LN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

 2
90981-04009

LN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 60/55W,*HYS,12V 60/55W,*SSB,HALOGEN,YELLOW

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

LN5#,65,RN61,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 60/55W,*HWS,12V 60/55W,*SSB,HALOGEN,WHITE

 2
90981-04020

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

12V 65/35W,*HAL,*WB,12V 65/35W,SEALED,HALOGEN

 2
90981-04004

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

12V 65/55W,*WB,12V 65/55W,SEALED

 2
90981-04006

LN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

 2
90981-04009

LN5#,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

12V 60/55W,*HYS,12V 60/55W,*SSB,HALOGEN,YELLOW

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-89136

LN5#,6#,RN5#,YN5#,6#

 2
81121 - SPRING, HEADLAMP TENSION
81121-14670

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-89103

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

W/SELF LOCKING NUT

 4
81150 - HEADLAMP ASSY, LH
81150-80365

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

*SSB,HALOGEN,WHITE

 1
81150-80363

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

*SSB,WHITE

 1
81150-80366

LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN50,51,55,65,YN50,55,56,57,60,62,65,67..LHD..(EUR,GEN)

*SSB,HALOGEN,YELLOW

 1
81150-80369

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

SEALED,HALOGEN,WHITE

 1
81150-80361

LN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)

SEALED

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89136

LN5#,6#,RN5#,YN5#,6#

 2
Common parts
81124-89101
81136-12571

(0408-0808)ARL,GCC,GEN,IDN,PHL,TH ; (0408-0809)MA ; (0408-0810)LA,SA ; (0507-0812)A
