LN55R-KRB (1983)
Toyota Hilux

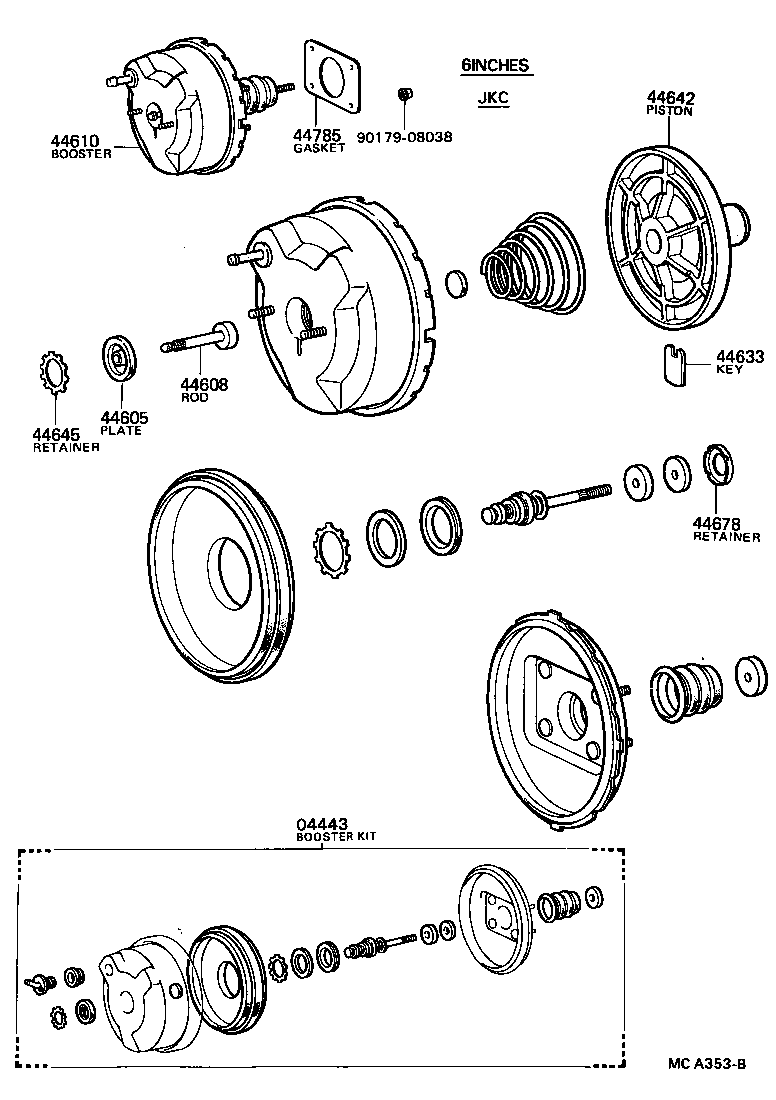

ILLUST NO. 1 OF 2(8308-8608)YN50,55,57..RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16080 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35320 |
LN5#,6# AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35310 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 04443-35370 |
LN50,55..RHD..GEN JKC,6INCHES |
1 | ||
| 04443-35400 |
YN50,55,57..RHD..GEN JKC,8INCHES,FR DRUM |
1 | ||
| 04443-35360 |
YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
LN50,55..GEN |
1 | ||
| 44605-22021 |
YN50,52,55,57..GEN,ME |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44608-14040 |
LN50,55,YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44608-32020 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35480 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44610-35560 |
LN50,55..RHD..GEN JKC,6INCHES |
1 | ||
| 44610-35500 |
LN5#,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35600 |
YN50,55,57..RHD..GEN JKC,8INCHES,FR DRUM |
1 | ||
| 44610-35460 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35540 |
YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
LN50,55,YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44633-28130 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642-27120 |
LN50,55..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44642-20080 |
LN50,55,YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
LN50,55..GEN JKC |
1 | ||
| 44645-22020 |
YN50,52,55,57..GEN,ME JKC |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
LN50,55,YN50,55,57..RHD..GEN |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8308-9201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16080 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35320 |
LN5#,6# AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35310 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 04443-35370 |
LN50,55..RHD..GEN JKC,6INCHES |
1 | ||
| 04443-35400 |
YN50,55,57..RHD..GEN JKC,8INCHES,FR DRUM |
1 | ||
| 04443-35360 |
YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
LN50,55..GEN |
1 | ||
| 44605-22021 |
YN50,52,55,57..GEN,ME |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44608-14040 |
LN50,55,YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44608-32020 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35480 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44610-35560 |
LN50,55..RHD..GEN JKC,6INCHES |
1 | ||
| 44610-35500 |
LN5#,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35600 |
YN50,55,57..RHD..GEN JKC,8INCHES,FR DRUM |
1 | ||
| 44610-35460 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35540 |
YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
LN50,55,YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44633-28130 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
YN50,52,55,57..GEN,ME |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
LN50,55..GEN JKC |
1 | ||
| 44645-22020 |
YN50,52,55,57..GEN,ME JKC |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-30480 |
YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44730-10010 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35070 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8308-9407) ; (9407- )LN5#,6#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16080 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35320 |
LN5#,6# AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35310 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 04443-35370 |
LN50,55..RHD..GEN JKC,6INCHES |
1 | ||
| 04443-35400 |
YN50,55,57..RHD..GEN JKC,8INCHES,FR DRUM |
1 | ||
| 04443-35360 |
YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44608-14040 |
LN50,55,YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44608-32020 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35480 |
LN50,55,6#..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44610-35560 |
LN50,55..RHD..GEN JKC,6INCHES |
1 | ||
| 44610-35500 |
LN5#,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35600 |
YN50,55,57..RHD..GEN JKC,8INCHES,FR DRUM |
1 | ||
| 44610-35460 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35540 |
YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642-27120 |
LN50,55..RHD..GEN AISIN,8INCHES,FR DRUM |
1 | ||
| 44642-20080 |
LN50,55,YN50,55,57..RHD..GEN JKC,6INCHES |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44730-10010 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35070 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 2 OF 2(8308- )LN5#,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-35030 |
LN50,51,55,56,60,61,65..RHD |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-35030 |
LN50,51,55,56,60,61,65..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44730-10010 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44730-10010 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09082 |
LN5#,6# |
1 | ||
| 90405-09079 |
LN50,55 |
1 | ||
| 90405-09078 |
LN50,55 W/COOLER |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09082 |
LN5#,6# |
1 | ||
| 90405-09079 |
LN50,55 |
1 | ||
| 90405-09078 |
LN50,55 W/COOLER |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35040 |
LN50,55..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 44771-35010 |
LN50,51,55,56,60,61,65..RHD W/TANDEM MASTER CYLINDER |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-35040 |
LN50,55..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 44771-35010 |
LN50,51,55,56,60,61,65..RHD W/TANDEM MASTER CYLINDER |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
LN50,51,55,56,60,61,65 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
LN50,51,55,56,60,61,65 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
LN50,51,55,56,60,61,65 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16002 |
LN50,51,55,56,60,61,65 |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35230 |
LN5#,60,65 |
1 | ||
| 44773-35240 |
YN50,55,56,57,60,63,65,67..RHD |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35230 |
LN5#,60,65 |
1 | ||
| 44773-35240 |
YN50,55,56,57,60,63,65,67..RHD |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| Common parts | ||||
| 91651-G0614 | ||||
