LN55R-KR (1983)
Toyota Hilux
Production
Aug 1983
-
Aug 1984
Engine
L
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )YN50,51,55,56,57,58,60,63,65,67..RHD

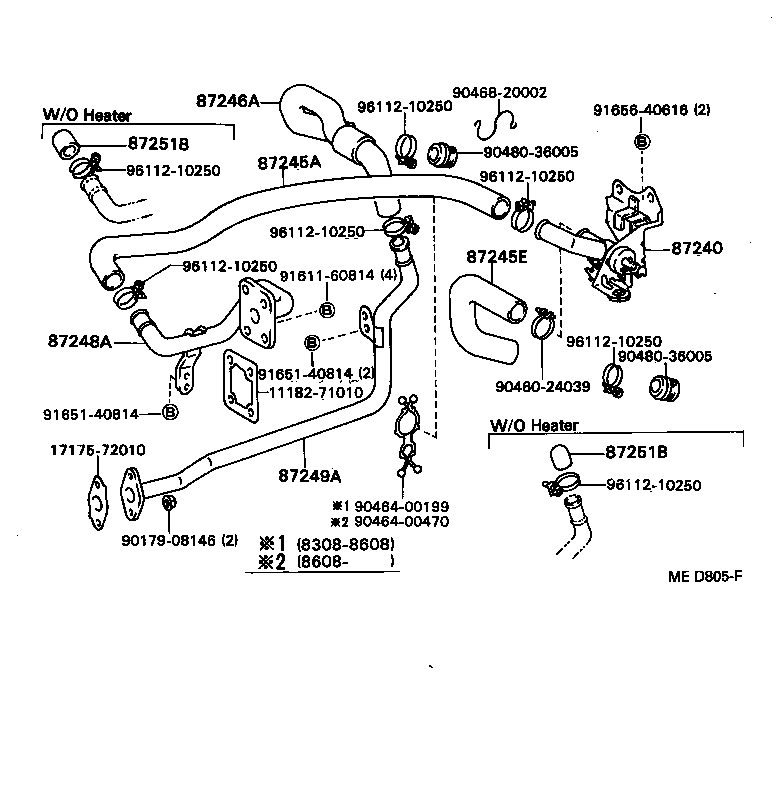

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-89115 |
LN5#,6#,YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-89149 |
LN5#,6# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-89146 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-89153 |
LN5#,6# |
1 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LN5#,60,65,YN50,52,55,57,6#..GEN,ME W/O HEATER |
2 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LN5#,60,65,YN50,52,55,57,6#..GEN,ME W/O HEATER |
2 | ||
| Common parts | ||||
| 11182-71010 | ||||
| 17175-72010 | ||||
| 90179-08146 | ||||
| 90460-24039 | ||||
| 90464-00199 | ||||
| 90464-00470 | ||||
| 90468-20002 | ||||
| 90480-36005 | ||||
| 91611-60814 | ||||
| 91651-40814 | ||||
| 91656-40616 | ||||
| 96112-10250 | ||||
(8308-9407)LN5#,6#..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30230 |
LN5#,6# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-89115 |
LN5#,6#,YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-89149 |
LN5#,6# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-89146 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-89153 |
LN5#,6# |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
LN5#,6# |
1 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LN5#,60,65,YN50,52,55,57,6#..GEN,ME W/O HEATER |
2 | ||
| 87251B - PLUG, HEATER WATER | ||||
| 90339-16007 |
LN5#,60,65,YN50,52,55,57,6#..GEN,ME W/O HEATER |
2 | ||
| 87264 - BRACKET, HEATER WATER HOSE | ||||
| 87263-89108 |
LN5#,6# |
1 | ||
| Common parts | ||||
| 87398-89106 | ||||
| 90460-24039 | ||||
| 90463-15002 | ||||
| 90464-00199 | ||||
| 90464-00470 | ||||
| 90480-36005 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| 96112-10250 | ||||
