LN50R-MR3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1984
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN5#,YN5#

Click highlighted areas on diagram

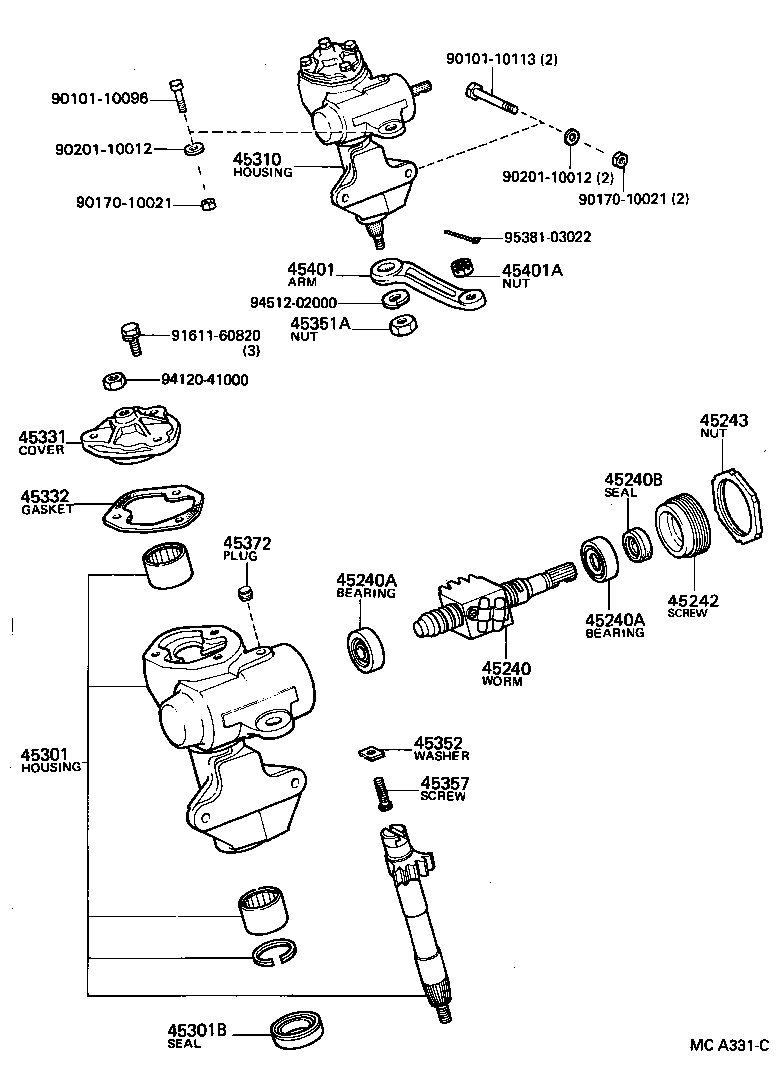

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010110096 9010110113 9017010021 9017010021 9020110012 9020110012 9161160820 9412041000 9451202000 9538103022
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-14050

LN5#,YN50,55,56,57..RHD

 1
45240A - BEARING(FOR STEERING WORM)
90369-19001

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
45240A - BEARING(FOR STEERING WORM)
90369-19001

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-19001

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-22040

LN5#,YN50,51,55,56,57,58..RHD

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-30060

LN5#,YN50,55,56,57..RHD

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-35091

LN5#,RN58,YN50,51,55,56,57,58..RHD

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-28027

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-35080

LN5#,RN58,YN50,51,55,56,57,58..RHD

 1
45331 - COVER, SECTOR SHAFT END
45304-35050

LN5#,YN50,55,56,57..RHD

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-22020

LN5#,RN58,YN50,51,55,56,57,58..RHD

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-14020

LN5#,YN50,55,56,57..RHD

T=2.04,T=2.04

 1
45352-14040

LN5#,YN50,55,56,57..RHD

T=2.12,T=2.12

 1
45352-14060

LN5#,YN50,55,56,57..RHD

T=2.20,T=2.20

 1
45352-14030

LN5#,YN50,55,56,57..RHD

T=2.08,T=2.08

 1
45352-14010

LN5#,YN50,55,56,57..RHD

T=2.00,T=2.00

 1
45352-14050

LN5#,YN50,55,56,57..RHD

T=2.16,T=2.16

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-30040

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45401 - ARM SUB-ASSY, PITMAN
45411-35210

LN5#,RN58,YN50,51,55,56,57,58..RHD

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
Common parts
90101-10096
90101-10113
90170-10021
90201-10012
91611-60820
94120-41000
94512-02000
95381-03022

(8308- )LN5#,RN5#,YN5#

Click highlighted areas on diagram

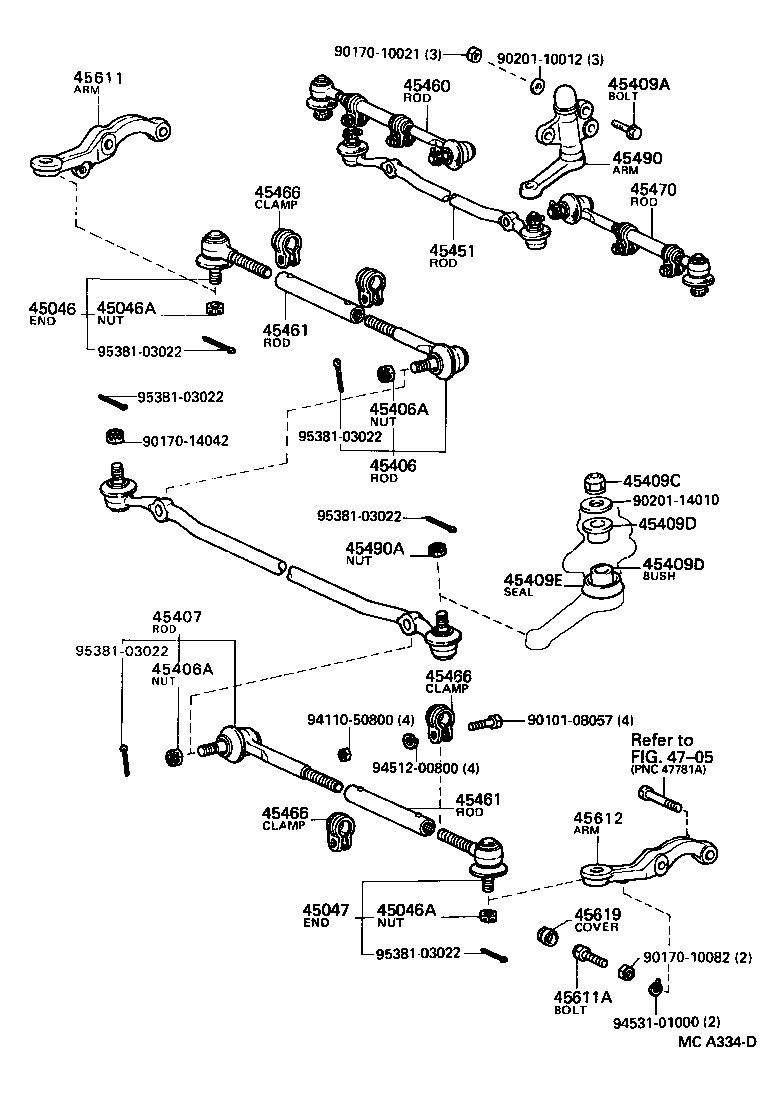

diagram 45046 45046A 45046A 45047 45406 45406A 45406A 45407 45409A 45409C 45409D 45409D 45409E 45451 45460 45461 45461 45466 45466 45466 45470 45490 45490A 45611 45611A 45612 45619 4705 9010108057 9017010021 9017010082 9017014042 9020110012 9020114010 9411050800 9451200800 9453101000 9538103022 9538103022 9538103022 9538103022 9538103022 9538103022
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-39165

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN5#,6#,RN5#,6#,YN5#,6#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN5#,6#,RN5#,6#,YN5#,6#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-39165

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-39115

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LN5#,61,RN5#,61,YN5#,63

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

LN5#,61,RN5#,61,YN5#,63

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-39115

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
90101-10113

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

*10-1.25PX93-25

 3
45409C - NUT(FOR IDLER ARM SUPPORT)
94184-61400

LN5#,61,RN5#,61,YN5#,63

 1
45409D - BUSH(FOR IDLER ARM)
90385-18068

LN5#,61,RN5#,61,YN5#,63

 2
45409D - BUSH(FOR IDLER ARM)
90385-18068

LN5#,61,RN5#,61,YN5#,63

 2
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012

LN5#,61,RN5#,61,YN5#,63

 1
45451 - ROD, STEERING RELAY
45450-39105

LN5#,YN50,51,55,56,57,58..RHD

 1
45460 - ROD ASSY, TIE, RH
45460-39215

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45461 - ROD, STEERING TIE
45465-35020

LN5#,RN5#,YN5#

 2
45461 - ROD, STEERING TIE
45465-35020

LN5#,RN5#,YN5#

 2
45466 - CLAMP, TIE ROD END
45466-30020

YN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F

 4
45466 - CLAMP, TIE ROD END
45466-30020

YN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F

 4
45466 - CLAMP, TIE ROD END
45466-30020

YN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F

 4
45470 - ROD ASSY, TIE, LH
45460-39215

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
45490 - ARM ASSY, STEERING IDLER
45490-35130

LN5#,RN58,YN50,51,55,56,57,58..RHD

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

YN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-35120

LN5#,RN5#,YN5#

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

LN5#,RN5#,YN5#

 2
45612 - ARM, STEERING KNUCKLE, LH
45612-35120

LN5#,RN5#,YN5#

 1
45619 - COVER, KNUCKLE STOPPER
45619-14020

LN5#,RN5#,YN5#

 2
Common parts
90101-08057
90170-10021
90170-10082
90170-14042
90201-10012
90201-14010
94110-50800
94512-00800
94531-01000
95381-03022
