LN50R-MR (1983)
Toyota Hilux
(8308- )4FC..GEN ; (8308- )LN60,65,YN65,67..RHD ; (8308- )LN5#,61,67,RN58,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35330 |
LN5#,YN50,52,55,56 TANDEM MASTER CYLINDER |
1 | ||
| 47311-35320 |
LN50,55,YN50,55,57..GEN SINGLE M/C |
1 | ||
| 47311-35330 |
LN50,55,YN50,52,55,57..GEN,ME TANDEM M/C,FR DRUM |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10111 |
LN5#,6#,RN5#,YN50,52,55,56,6# |
1 | ||
| 90413-10067 |
LN50,55,YN50,55,57..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35490 |
LN50,55,YN50,55,57..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 47312-35400 |
LN5#,YN50,55,57..RHD..GEN W/TANDEM MASTER CYLINDER |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10153 |
LN50,55,YN50,55,57..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 90412-10108 |
LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..GEN,ME W/TANDEM MASTER CYLINDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35280 |
LN5#,YN50,51,55,56,58..RHD W/TANDEM MASTER CYLINDER |
1 | ||
| 47313-35330 |
LN50,55,YN50,55,57..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02446 |
LN5#,RN5#,YN50,52,55,56 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02446 |
LN5#,RN5#,YN50,52,55,56 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35170 |
LN5#,YN50,55,56..ARL,EUR,GEN,SA |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34305 |
LN5#,YN5# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35210 |
YN57..SR5..(GEN,SA);YN57..RHD..(DLX,STD);LN5#,60,65,YN50,51,55,56,58,60,65,67..RHD |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10152 |
LN5#,YN5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35240 |
LN50,YN50..GEN SINGLE M/C |
1 | ||
| 47322-35220 |
LN50,YN50..GEN TANDEM M/C,W/O DSPV |
1 | ||
| 47322-35280 |
LN50,51,RN50,YN50,52..GEN,ME W/DSPV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35090 |
LN5#,RN5#,YN50,52,55,57..GEN,ME |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35060 |
LN5#,YN50,52,55,56 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35070 |
LN5#,YN50,52,55,56 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35080 |
LN5#,YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 47341-35090 |
LN5#,RN5#,YN5# FR DISC BRAKE |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35080 |
LN5#,YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35030 |
LN5#,RN58,YN50,51,55,56,57,58..RHD SIDE RAIL SIDE |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35010 |
LN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35010 |
LN5#..RHD DASH PANEL SIDE |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35010 |
LN5#..RHD DASH PANEL SIDE |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35010 |
LN5#..RHD DASH PANEL SIDE |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35010 |
LN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD DASH DANEL SIDE |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35050 |
LN5# |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35050 |
LN5# |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90461-06112 | ||||
| 91611-60812 | ||||
| 91616-40820 | ||||
| 91651-60820 | ||||
| 91661-60816 | ||||
| 96221-34905 | ||||
| 96991-10080 | ||||

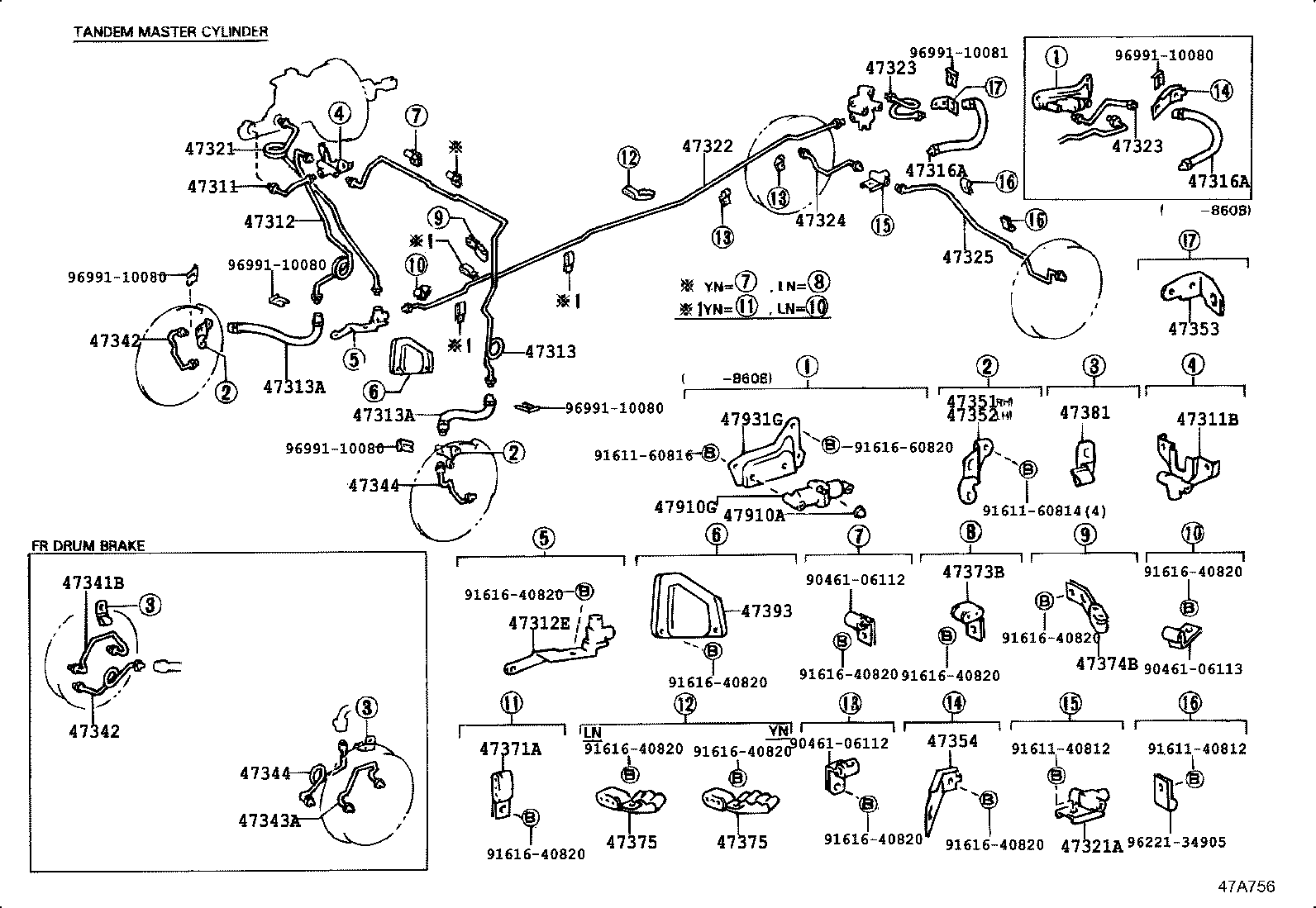

(8308- )LN50,51,55,56,60,61,65,YN50,51,55,56,57,58,60,63,65,67..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35330 |
LN5#,YN50,52,55,56 TANDEM MASTER CYLINDER |
1 | ||
| 47311-35320 |
LN50,55,YN50,55,57..GEN SINGLE M/C |
1 | ||
| 47311-35330 |
LN50,55,YN50,52,55,57..GEN,ME TANDEM M/C,FR DRUM |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10111 |
LN5#,6#,RN5#,YN50,52,55,56,6# |
1 | ||
| 90413-10067 |
LN50,55,YN50,55,57..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35490 |
LN50,55,YN50,55,57..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 47312-35400 |
LN5#,YN50,55,57..RHD..GEN W/TANDEM MASTER CYLINDER |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10153 |
LN50,55,YN50,55,57..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 90412-10108 |
LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..GEN,ME W/TANDEM MASTER CYLINDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35280 |
LN5#,YN50,51,55,56,58..RHD W/TANDEM MASTER CYLINDER |
1 | ||
| 47313-35330 |
LN50,55,YN50,55,57..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02446 |
LN5#,RN5#,YN50,52,55,56 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02446 |
LN5#,RN5#,YN50,52,55,56 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34305 |
LN5#,YN5# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34305 |
LN5#,YN5# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-35210 |
YN57..SR5..(GEN,SA);YN57..RHD..(DLX,STD);LN5#,60,65,YN50,51,55,56,58,60,65,67..RHD |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10152 |
LN5#,YN5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35240 |
LN50,YN50..GEN SINGLE M/C |
1 | ||
| 47322-35220 |
LN50,YN50..GEN TANDEM M/C,W/O DSPV |
1 | ||
| 47322-35280 |
LN50,51,RN50,YN50,52..GEN,ME W/DSPV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35090 |
LN5#,RN5#,YN50,52,55,57..GEN,ME |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-35090 |
LN5#,RN5#,YN50,52,55,57..GEN,ME |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35060 |
LN5#,YN50,52,55,56 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35070 |
LN5#,YN50,52,55,56 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47342-35020 |
LN50,55,YN50,52,55,57..GEN,ME |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35080 |
LN5#,YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 47341-35090 |
LN5#,RN5#,YN5# FR DISC BRAKE |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35080 |
LN5#,YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 47341-35090 |
LN5#,RN5#,YN5# FR DISC BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47342-35020 |
LN50,55,YN50,52,55,57..GEN,ME |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35080 |
LN5#,YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35080 |
LN5#,YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-35100 |
LN50,55,YN50,52,55,57..GEN,ME |
1 | ||
| 47351-35140 |
LN5#,RN5#,YN50,51,52,55,56,58 FR DISC BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-35120 |
LN5#,RN5#,YN50,51,52,55,56,58 FR DISC BRAKE |
1 | ||
| 47352-35100 |
LN50,55,YN50,52,55,57..GEN,ME |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-35070 |
LN5#,RN5#,YN50,52,55,57..GEN,ME |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35030 |
LN5#,RN58,YN50,51,55,56,57,58..RHD SIDE RAIL SIDE |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35010 |
LN5#..RHD DASH PANEL SIDE |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35010 |
LN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD DASH DANEL SIDE |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35050 |
LN50,51,55,56..RCB,XTR |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35050 |
LN50,51,55,56..RCB,XTR |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47382-35010 |
LN50,55,YN50,52,55,57..GEN,ME LH |
1 | ||
| 47381-35020 |
LN50,55,YN50,52,55,57..GEN,ME RH |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35050 |
LN5# |
1 | ||
| 47910A - CAP, BLEEDER PLUG | ||||
| 31478-30010 |
LN5#,6#,RN5#,6#,YN5#,6# |
1 | ||
| 47910G - VALVE ASSY, DECELERATION SENSING PROPORTIONING | ||||
| 47910-35060 |
LN5#,RN5#,YN50,52,55,57..GEN,ME |
1 | ||
| 47931G - BRACKET, DECELERATION SENSING VALVE | ||||
| 47931-35070 |
LN5#,RN5#,YN50,52,55,57..GEN,ME |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 91611-40812 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91616-40820 | ||||
| 91616-60820 | ||||
| 96221-34905 | ||||
| 96991-10080 | ||||
| 96991-10081 | ||||

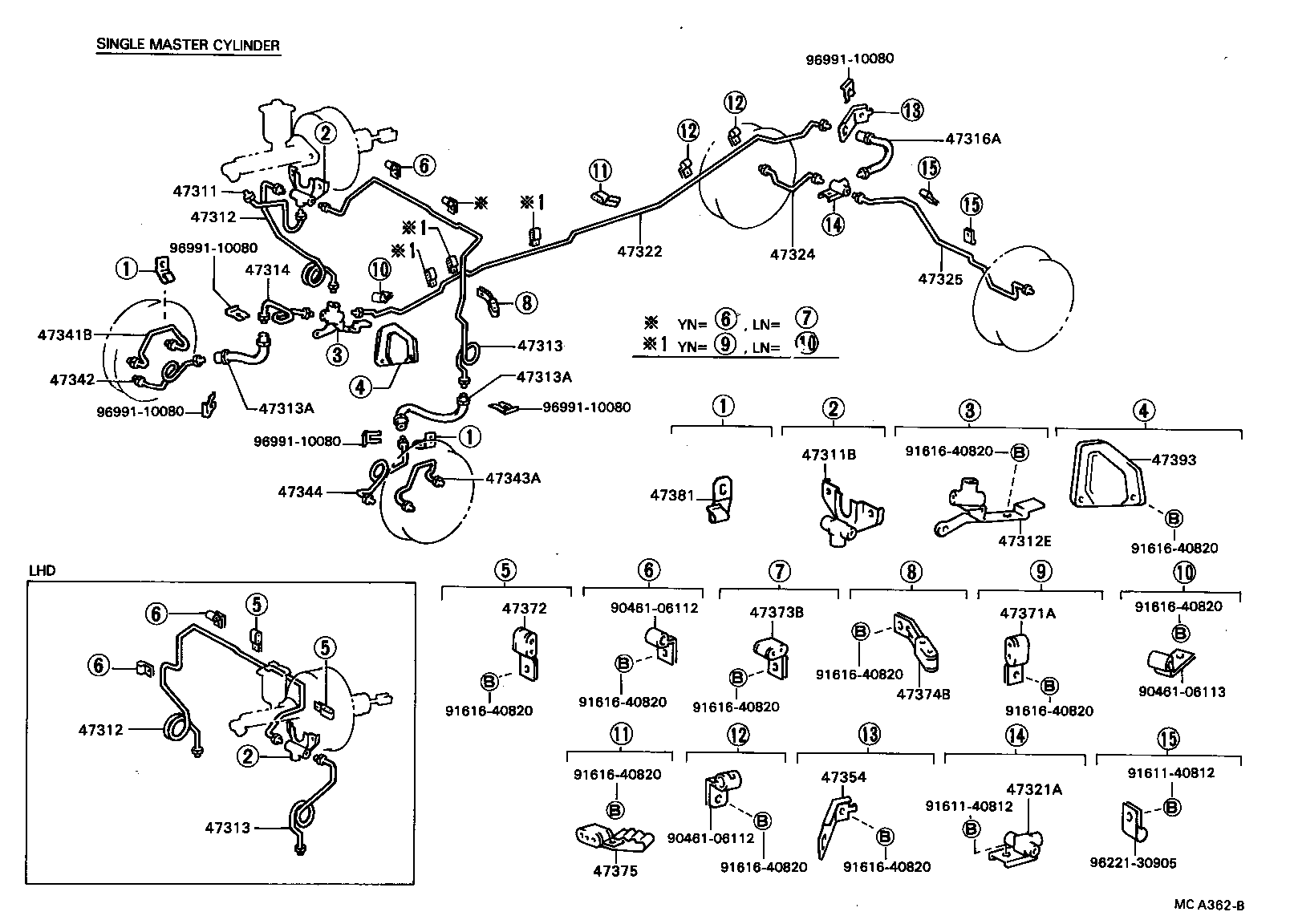

(8308-8408)LN50,55,YN50,55,57..GEN ; (8408-8608)LN5#,YN50,55,57..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-35330 |
LN5#,YN50,52,55,56 TANDEM MASTER CYLINDER |
1 | ||
| 47311-35320 |
LN50,55,YN50,55,57..GEN SINGLE M/C |
1 | ||
| 47311-35330 |
LN50,55,YN50,52,55,57..GEN,ME TANDEM M/C,FR DRUM |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10111 |
LN5#,6#,RN5#,YN50,52,55,56,6# |
1 | ||
| 90413-10067 |
LN50,55,YN50,55,57..GEN SINGLE MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35490 |
LN50,55,YN50,55,57..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 47312-35400 |
LN5#,YN50,55,57..RHD..GEN W/TANDEM MASTER CYLINDER |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-35490 |
LN50,55,YN50,55,57..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 47312-35400 |
LN5#,YN50,55,57..RHD..GEN W/TANDEM MASTER CYLINDER |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10153 |
LN50,55,YN50,55,57..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 90412-10108 |
LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..GEN,ME W/TANDEM MASTER CYLINDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35280 |
LN5#,YN50,51,55,56,58..RHD W/TANDEM MASTER CYLINDER |
1 | ||
| 47313-35330 |
LN50,55,YN50,55,57..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35280 |
LN5#,YN50,51,55,56,58..RHD W/TANDEM MASTER CYLINDER |
1 | ||
| 47313-35330 |
LN50,55,YN50,55,57..RHD..GEN W/SINGLE MASTER CYLINDER |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02446 |
LN5#,RN5#,YN50,52,55,56 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02446 |
LN5#,RN5#,YN50,52,55,56 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35170 |
LN5#,YN50,55,56..ARL,EUR,GEN,SA |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34305 |
LN5#,YN5# |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10152 |
LN5#,YN5# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35240 |
LN50,YN50..GEN SINGLE M/C |
1 | ||
| 47322-35220 |
LN50,YN50..GEN TANDEM M/C,W/O DSPV |
1 | ||
| 47322-35280 |
LN50,51,RN50,YN50,52..GEN,ME W/DSPV |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35060 |
LN5#,YN50,52,55,56 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35070 |
LN5#,YN50,52,55,56 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47342-35020 |
LN50,55,YN50,52,55,57..GEN,ME |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35080 |
LN5#,YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 47341-35090 |
LN5#,RN5#,YN5# FR DISC BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47342-35020 |
LN50,55,YN50,52,55,57..GEN,ME |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35080 |
LN5#,YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-35070 |
LN5#,RN5#,YN50,52,55,57..GEN,ME |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-35030 |
LN5#,RN58,YN50,51,55,56,57,58..RHD SIDE RAIL SIDE |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35010 |
LN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-35010 |
LN5#..RHD DASH PANEL SIDE |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-35010 |
LN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD DASH DANEL SIDE |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-35050 |
LN50,51,55,56..RCB,XTR |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47382-35010 |
LN50,55,YN50,52,55,57..GEN,ME LH |
1 | ||
| 47381-35020 |
LN50,55,YN50,52,55,57..GEN,ME RH |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-35050 |
LN5# |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 91611-40812 | ||||
| 91616-40820 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||
ILLUST NO. 2 OF 2(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47910A - CAP, BLEEDER PLUG | ||||
| 31478-30010 |
LN5#,6#,RN5#,6#,YN5#,6# |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27020 |
LN5#,6#,RN5#,6#,YN5#,6# |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LN5#,6#,RN5#,6#,YN5#,6# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-35050 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-35030 |
LN5#,RN5#,YN5# |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LN5#,6#,RN5#,6#,YN5#,6# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
LN5#,RN5#,YN5# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LN5#,6#,RN5#,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90179-10016 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91616-60820 | ||||
| 94110-40800 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 3 OF 3(9708-0108) ; (0108- )LN152..IV3 ; (0108-)KDN190..DCB ; (0108- )LN147,152
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08B11 | ||||
| 90170-08016 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91641-H0820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
