LN50L-KR3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1984
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN5#,YN5#..T1

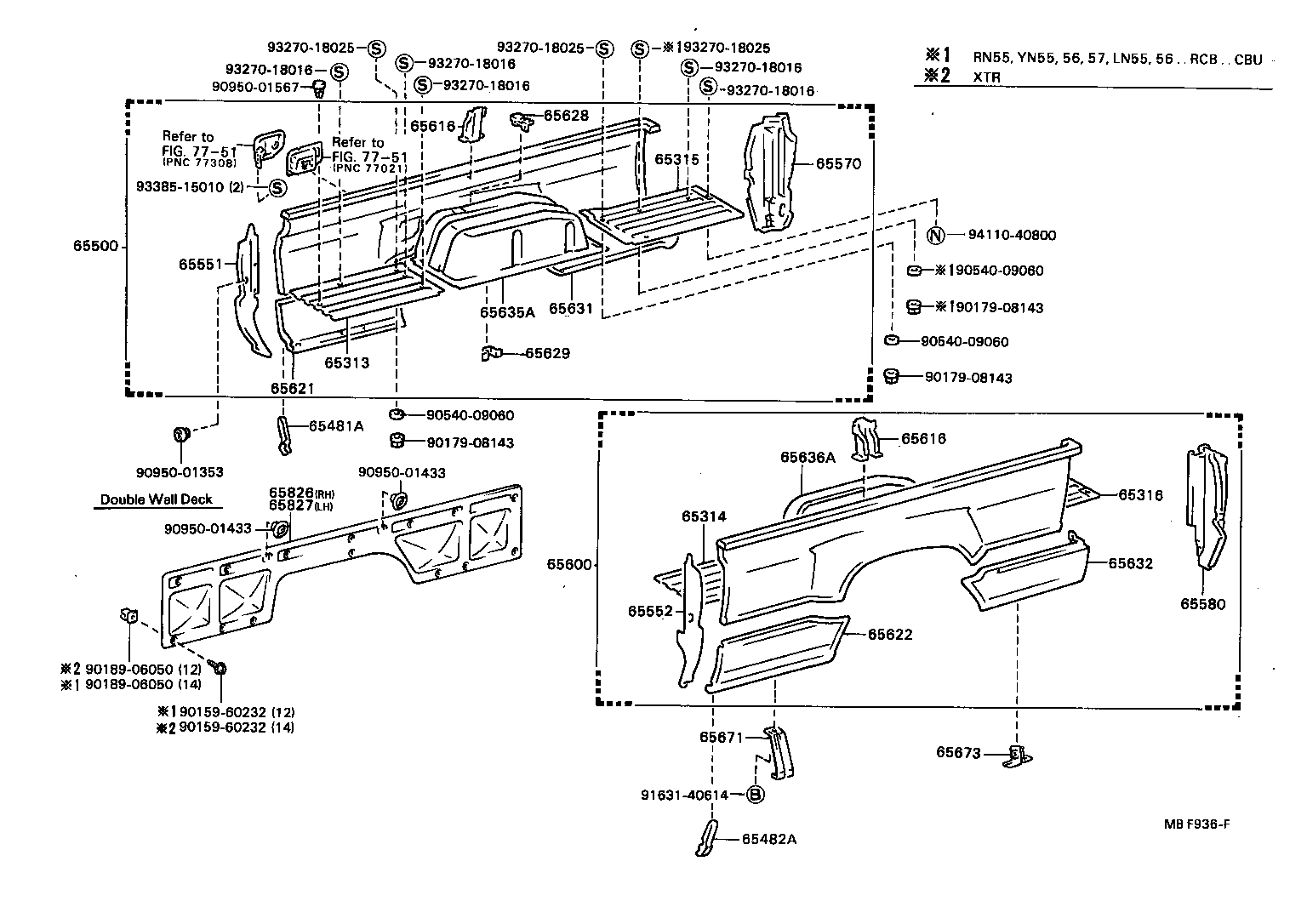

Click highlighted areas on diagram

diagram 65313 65314 65315 65316 65481A 65482A 65500 65551 65552 65570 65580 65600 65616 65616 65621 65622 65628 65629 65631 65632 65635A 65636A 65671 65673 65826 65827 7751 7751 9015960232 9015960232 9017908143 9017908143 9017908143 9018906050 9018906050 9054009060 9054009060 9054009060 9095001353 9095001433 9095001433 9095001567 9163140614 9327018016 9327018016 9327018016 9327018016 9327018016 9327018025 9327018025 9327018025 9338515010 9411040800
Part # Description Qty Price
Common parts
90159-60232
90179-08143
90189-06050
90540-09060
90950-01353
90950-01433
90950-01567
91631-40614
93270-18016
93270-18025
93385-15010
94110-40800
Linked diagrams
7751
