LN50L-KR (1983)
Toyota Hilux

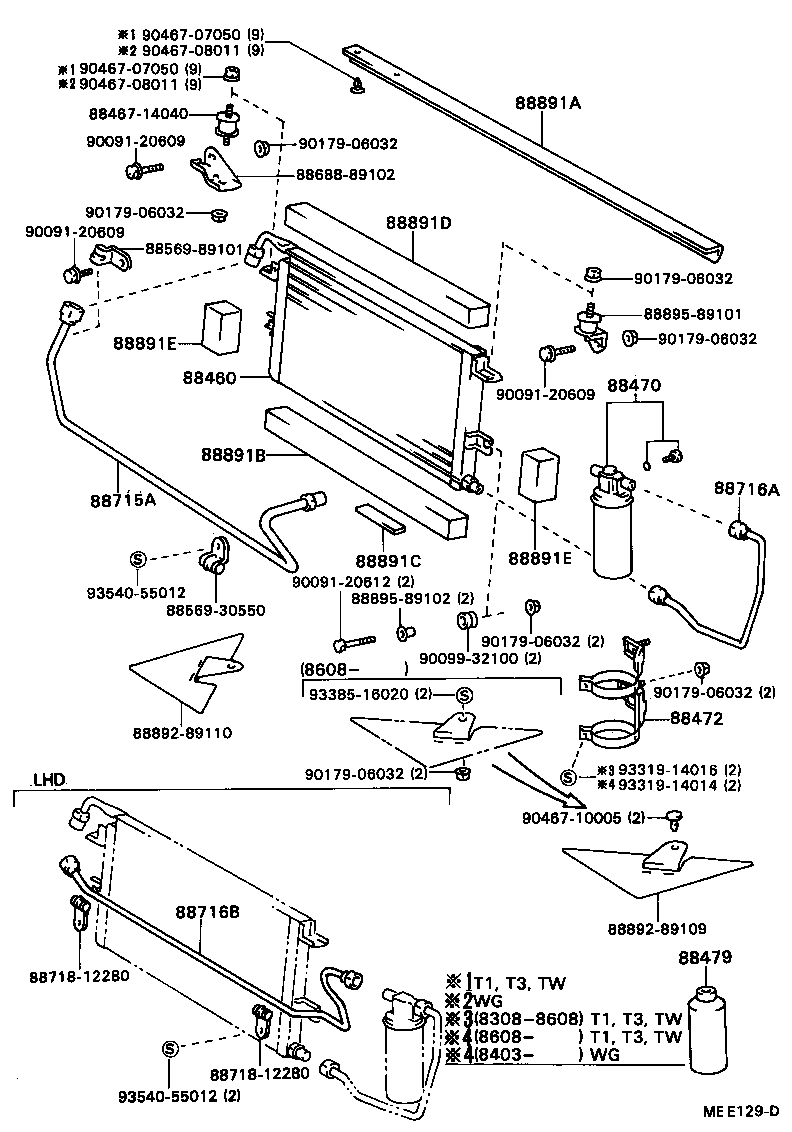

(8308-8408)YN50,52,55,57,6#..T1,T3,TW..ARL,GEN,ME,SA ; (8403-8408)YN60..ARL ; (8408
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89109 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89109 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,60,63,65,67..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,60,63,65,67..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) 400G |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89132 |
LN56..LHD..RCB..EUR..CBU;LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89133 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-89103 |
LN50,51,55,56,60,61,65,RN50,55,YN5#,6#..ARL,GEN,ME,SA |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89101 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) 50X560 |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89107 |
LN5#,6#,YN50,52,55,57,6#..ARL,GEN,ME,SA 10X120 |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88893-89114 |
LN5#,6#..ARL,GEN,SA 10X15X540 |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89103 |
LN5#,6#..ARL,GEN,SA |
2 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89103 |
LN5#,6#..ARL,GEN,SA |
2 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88578-89112 | ||||
| 88578-89113 | ||||
| 88688-89102 | ||||
| 88718-12280 | ||||
| 88892-89111 | ||||
| 88892-89112 | ||||
| 88895-89101 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90091-20612 | ||||
| 90099-32100 | ||||
| 90179-06032 | ||||
| 90467-07050 | ||||
| 90467-08011 | ||||
| 91651-41020 | ||||
| 93319-14014 | ||||
| 93319-14016 | ||||
| 93540-55012 | ||||
(8308-8408)LN5#,6#..ARL,GEN,SA ; (8408- )LN5#,6#..ARL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89109 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89109 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,60,63,65,67..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,60,63,65,67..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) 400G |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89132 |
LN56..LHD..RCB..EUR..CBU;LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89133 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-89103 |
LN50,51,55,56,60,61,65,RN50,55,YN5#,6#..ARL,GEN,ME,SA |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89101 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) 50X560 |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89107 |
LN5#,6#,YN50,52,55,57,6#..ARL,GEN,ME,SA 10X120 |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88893-89114 |
LN5#,6#..ARL,GEN,SA 10X15X540 |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89103 |
LN5#,6#..ARL,GEN,SA |
2 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89103 |
LN5#,6#..ARL,GEN,SA |
2 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88569-30550 | ||||
| 88569-89101 | ||||
| 88688-89102 | ||||
| 88718-12280 | ||||
| 88892-89109 | ||||
| 88892-89110 | ||||
| 88895-89101 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90091-20612 | ||||
| 90099-32100 | ||||
| 90179-06032 | ||||
| 90467-07050 | ||||
| 90467-08011 | ||||
| 90467-10005 | ||||
| 93319-14014 | ||||
| 93319-14016 | ||||
| 93385-16020 | ||||
| 93540-55012 | ||||

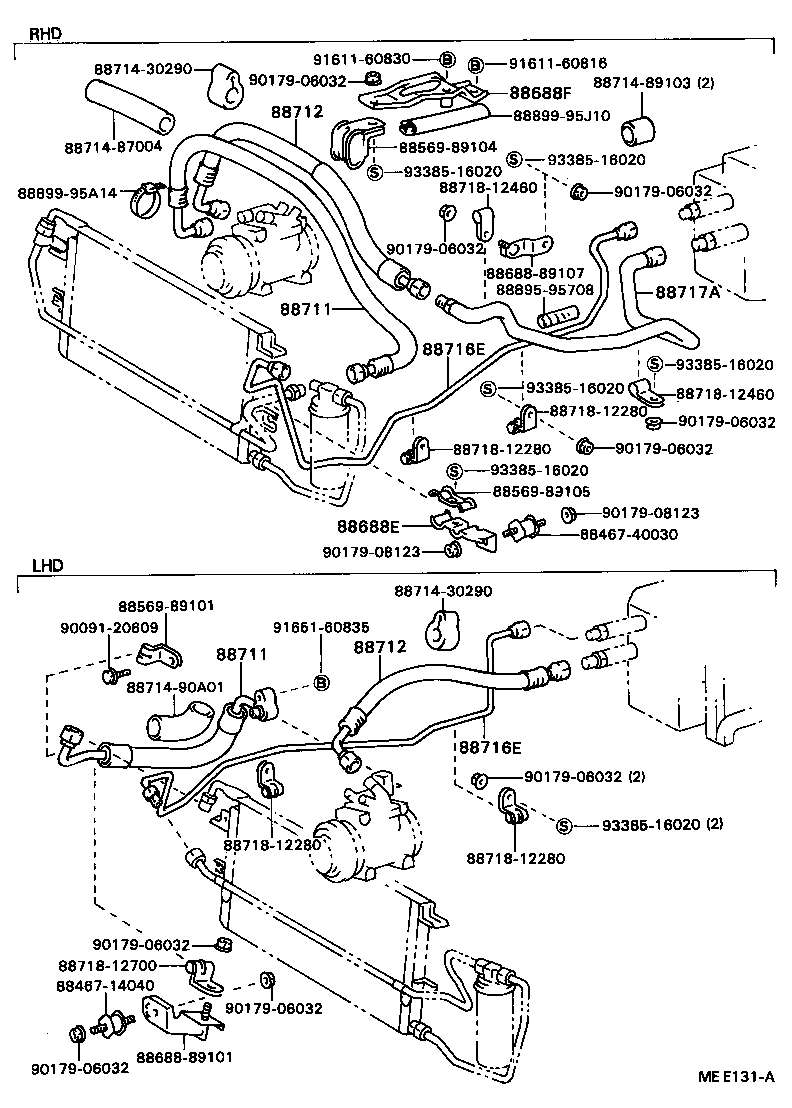

(8308-8408)YN50,52,55,57,6#..T1,T3,TW..ARL,GEN,ME,SA ; (8403-8408)YN60..ARL ; (8408
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89117 |
LN50,55,65..LHD..GEN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89117 |
LN50,55,65..LHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89121 |
LN5#,65..LHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89121 |
LN5#,65..LHD..GEN |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89136 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89136 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| Common parts | ||||
| 82711-95704 | ||||
| 88467-14040 | ||||
| 88569-12130 | ||||
| 88569-89101 | ||||
| 88569-89103 | ||||
| 88688-89103 | ||||
| 88688-89104 | ||||
| 88688-89114 | ||||
| 88714-12050 | ||||
| 88714-12140 | ||||
| 88714-30290 | ||||
| 88714-87004 | ||||
| 88714-89104 | ||||
| 88718-12280 | ||||
| 88718-12460 | ||||
| 88718-95J18 | ||||
| 88899-14120 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 91651-60816 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
(8308-8408)LN5#,6#..ARL,GEN,SA ; (8408- )LN5#,6#..ARL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89117 |
LN50,55,65..LHD..GEN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89117 |
LN50,55,65..LHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89121 |
LN5#,65..LHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89121 |
LN5#,65..LHD..GEN |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89136 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89136 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-40030 | ||||
| 88569-89101 | ||||
| 88569-89104 | ||||
| 88569-89105 | ||||
| 88688-89101 | ||||
| 88688-89107 | ||||
| 88714-30290 | ||||
| 88714-87004 | ||||
| 88714-89103 | ||||
| 88714-90A01 | ||||
| 88718-12280 | ||||
| 88718-12460 | ||||
| 88718-12700 | ||||
| 88895-95708 | ||||
| 88899-95A14 | ||||
| 88899-95J10 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 90179-08123 | ||||
| 91611-60816 | ||||
| 91611-60830 | ||||
| 91651-60835 | ||||
| 93385-16020 | ||||
(8403-8408)SR5..ME ; (8408- )RN50,55,YN50,52,55,57,6#..GEN,ME ; (8708-8808)YN56,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89109 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,60,63,65,67..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) 400G |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89132 |
LN56..LHD..RCB..EUR..CBU;LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..(T1,T3,TW)..(ARL,GEN,ME,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89133 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-89103 |
LN50,51,55,56,60,61,65,RN50,55,YN5#,6#..ARL,GEN,ME,SA |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89101 |
LN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(ARL,GEN,ME,SA) 50X560 |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88893-89114 |
LN5#,6#..ARL,GEN,SA 10X15X540 |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89103 |
LN5#,6#..ARL,GEN,SA |
2 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89103 |
LN5#,6#..ARL,GEN,SA |
2 | ||
| Common parts | ||||
| 88718-12280 | ||||
| 90119-06159 | ||||
| 90119-06256 | ||||
| 90179-06026 | ||||
| 90467-08011 | ||||
| 93567-55014 | ||||
(8403-8408)SR5..ME ; (8408- )RN50,55,YN50,52,55,57,6#..GEN,ME ; (8708-8808)YN56,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89117 |
LN50,55,65..LHD..GEN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89117 |
LN50,55,65..LHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89121 |
LN5#,65..LHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89121 |
LN5#,65..LHD..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89121 |
LN5#,65..LHD..GEN |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89136 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89136 |
LN50,55,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME) |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88569-22090 | ||||
| 88569-89101 | ||||
| 88569-89103 | ||||
| 88688-89101 | ||||
| 88688-89103 | ||||
| 88688-89114 | ||||
| 88714-30290 | ||||
| 88714-89104 | ||||
| 88718-12280 | ||||
| 88718-12700 | ||||
| 88899-14120 | ||||
| 90119-06159 | ||||
| 90179-06026 | ||||
| 90179-06032 | ||||
| 90464-00102 | ||||
| 91656-40616 | ||||
