LN46R-KRQ (1981)
Toyota Hilux
Production
Aug 1981
-
Jul 1983
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

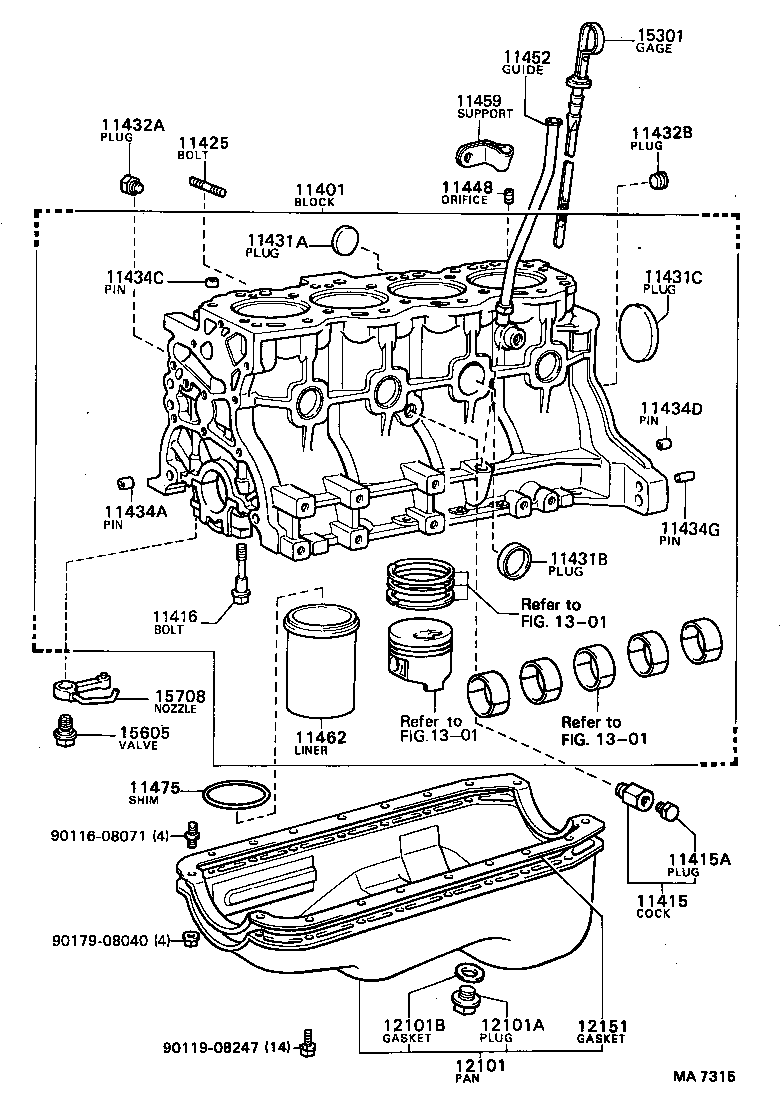

(8304-8307)L..LN36,46
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-39307 |
L..LN46..T1..ARL..CBU |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
L..LN3#,4# |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44500 |
L..LN46..T1..ARL..CBU OD=45 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
L..LN46..T1..ARL..CBU OD=40 |
5 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-32038 |
L..LN46..T1..ARL..CBU |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90072-34107 |
L..LN46..T1..ARL..CBU |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
L..LN3#,4# L=11,OD=11,L=11,OD=11 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
L..LN46..T1..ARL..CBU L=18,OD=8,L=18,OD=8 |
2 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
L..LN3#,4# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L..LN3#,4# |
1 | ||
| Common parts | ||||
| 90116-08071 | ||||
| 90119-08247 | ||||
| 90179-08040 | ||||
| Linked diagrams | ||||
| 1301 | ||||
(8308-9508)L,2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| Linked diagrams | ||||
| 1301 | ||||
