LN46R-KR3 (1981)

Toyota Hilux

Production Mar 1981 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8103-8307)LN36,46..RHD

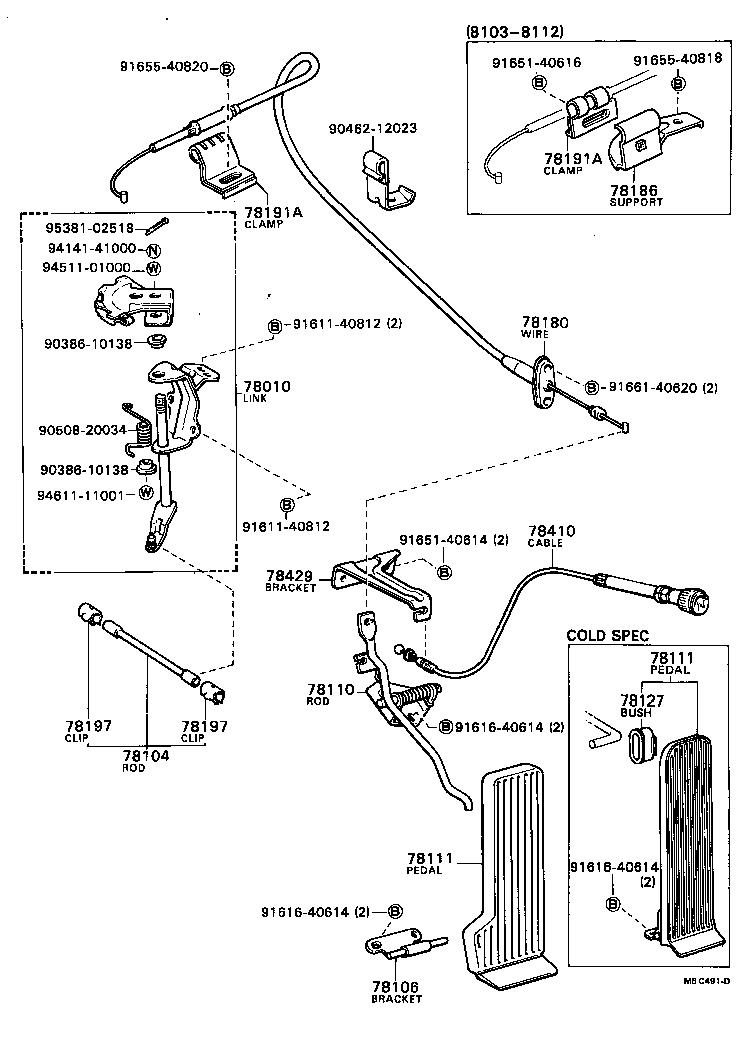

Click highlighted areas on diagram

diagram 78010 78104 78106 78110 78111 78111 78127 78180 78186 78191A 78191A 78197 78197 78410 78429 9038610138 9038610138 9046212023 9050820034 9161140812 9161140812 9161640614 9161640614 9161640614 9165140614 9165140616 9165540818 9165540820 9166140620 9414141000 9451101000 9461111001 9538102518
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78100-95110

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78011-95110

LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-95128

LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78111 - PEDAL, ACCELERATOR
78111-89102

LN3#,4#,RN3#,4#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-95118

LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)

 1
78180-95120

LN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10287

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10287

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-95113

LN36,46;RN36,46..ARL,GEN,SA

 1
Common parts
90386-10138
90462-12023
90508-20034
91611-40812
91616-40614
91651-40614
91651-40616
91655-40818
91655-40820
91661-40620
94141-41000
94511-01000
94611-11001
95381-02518
