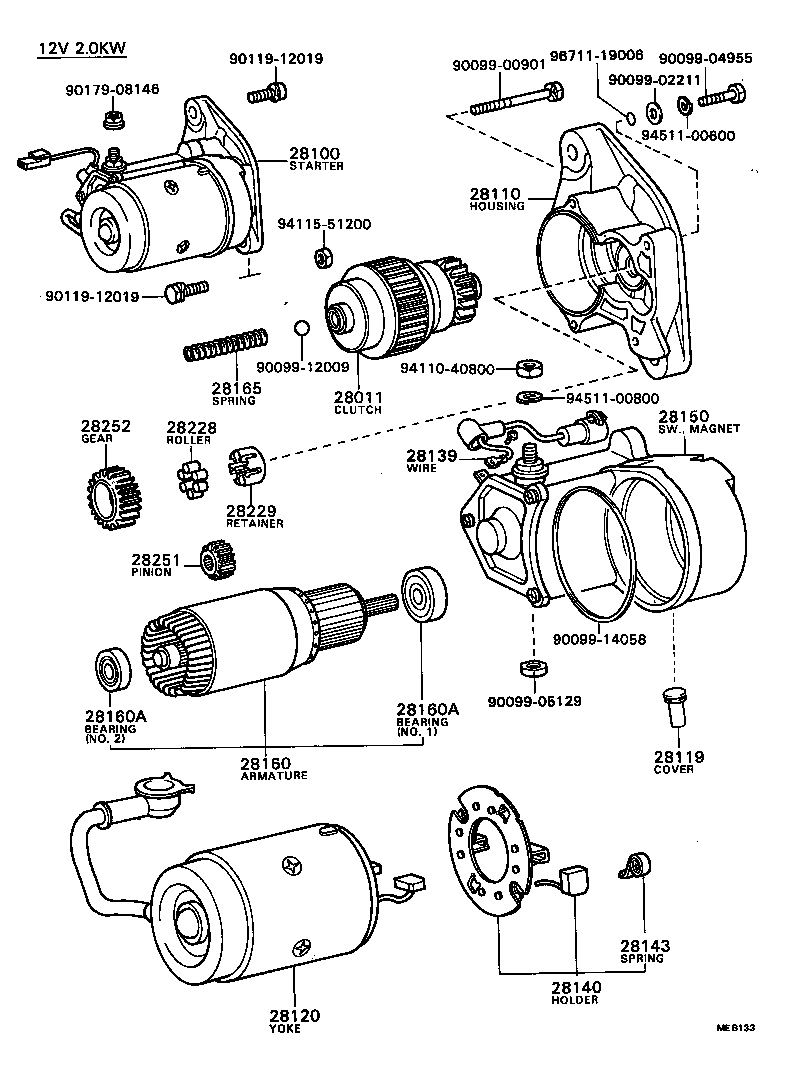

Toyota Hilux LN46 STARTER - JDM Part Detective

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28100 - STARTER ASSY
28100-54100	L..LN36,4#..EUR 12V 2.0KW,12V 2.0KW	08/1981 - 07/1983	1
28100-54052	L..LN36,4#..5F..EUR 12V 2.5KW,12V 2.5KW	08/1981 - 07/1983	1
28110 - HOUSING ASSY, STARTER DRIVE
28115-54011	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28119 - COVER, STARTER END FRAME
28119-77090	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28120 - YOKE ASSY, STARTER
28120-47040	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-54090	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-54051	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28160 - ARMATURE ASSY, STARTER
28160-47040	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28160A - BEARING, STARTER ARMATURE
90099-10119	L..LN36,4#..5F..EUR 12V 2.5KW,NO.1	08/1981 - 07/1983	1
90099-10107	L..LN36,4#..5F..EUR 12V 2.5KW,NO.2	08/1981 - 07/1983	1
28160A - BEARING, STARTER ARMATURE
90099-10119	L..LN36,4#..5F..EUR 12V 2.5KW,NO.1	08/1981 - 07/1983	1
90099-10107	L..LN36,4#..5F..EUR 12V 2.5KW,NO.2	08/1981 - 07/1983	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-56080	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	6
28229 - RETAINER, STARTER IDLE GEAR
28229-56080	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
28252 - GEAR, STARTER IDLE
28254-77090	L..LN36,4#..5F..EUR 12V 2.5KW	08/1981 - 07/1983	1
Common parts
90099-00901
90099-02211
90099-04955
90099-05129
90099-12009
90099-14058
90119-12019
90179-08146
94110-40800
94115-51200
94511-00600
94511-00800
96711-19006

LN46L-MRW (1981)

(8108-8307)L..LN36,4#..EUR
