LN46L-KRP (1981)

Toyota Hilux

Production Mar 1981 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN30,40,RN3#,4# ; (8103-8307)LN36,46..RHD

Click highlighted areas on diagram

diagram 85310 85330 85330A 85332 85345 85345 85348 85348 85360 85360 85361A 85361B 85371 85372 85373 85373 9046304032 9046310337 9046310338 9046310338 9046315617 9046400248 9165640616 9165640816 9354015014
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-89103

LN36,46..LHD

 1
85310-95110

LN36,46..LHD

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89110

LN36,46..LHD

 1
85330-95110

LN36,46..LHD

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

LN36,46..LHD

 1
90099-32089

LN36,46..LHD

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20060

LN36,46..LHD

 1
85332-16010

LN36,46..LHD

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-89104

LN3#,4#,RN3#,4#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-89104

LN3#,4#,RN3#,4#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

LN3#,4#,RN3#,4#

3 WAY

 1
85349-20010

LN36,46..LHD

2WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

LN3#,4#,RN3#,4#

3 WAY

 1
85349-20010

LN36,46..LHD

2WAY

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
53752-89107

LN36,46..LHD

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
53752-89107

LN36,46..LHD

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
53752-89106

LN36,46..LHD

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33346

LN36,46..LHD

*H,L=200

 1
90446-06013

LN36,46..LHD

*H,L=200

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

LN36,46..LHD

*H,L=710

 1
90446-06013

LN36,46..LHD

*H,L=700

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LN3#,4#,RN3#,4#

*H,L=100

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LN3#,4#,RN3#,4#

*H,L=100

 1
Common parts
90463-04032
90463-10337
90463-10338
90463-15617
90464-00248
91656-40616
91656-40816
93540-15014

(8103-8307)LN36,46..LHD

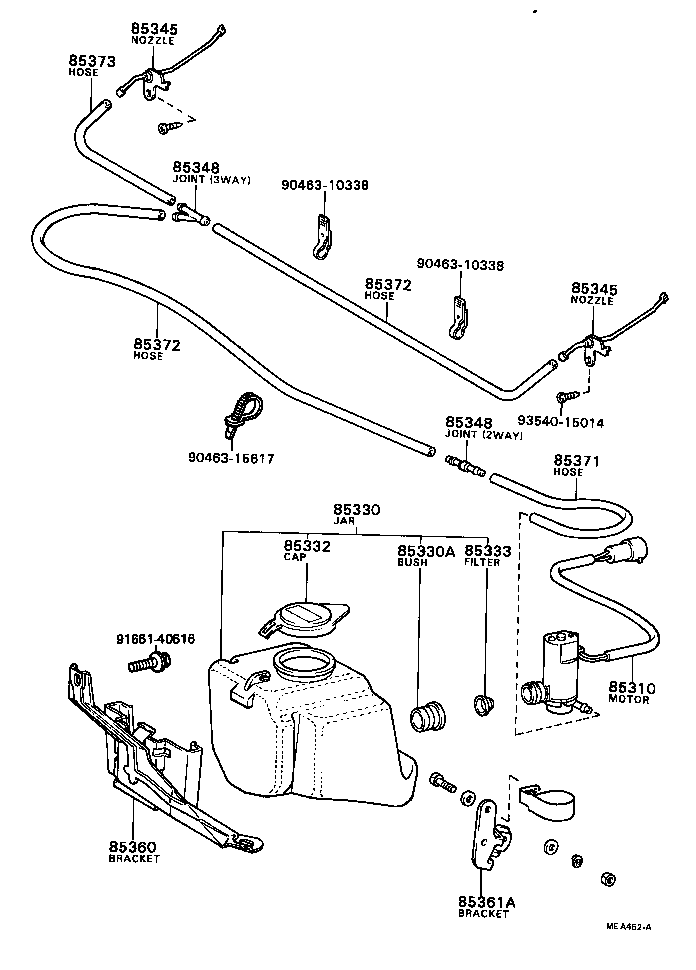

Click highlighted areas on diagram

diagram 85310 85330 85330A 85332 85333 85345 85345 85348 85348 85360 85361A 85371 85372 85372 85373 9046310338 9046310338 9046315617 9166140616 9354015014
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-89103

LN36,46..LHD

 1
85310-95110

LN36,46..LHD

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89110

LN36,46..LHD

 1
85330-95110

LN36,46..LHD

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

LN36,46..LHD

 1
90099-32089

LN36,46..LHD

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20060

LN36,46..LHD

 1
85332-16010

LN36,46..LHD

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20020

LN36,46..LHD

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-89104

LN3#,4#,RN3#,4#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-89104

LN3#,4#,RN3#,4#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

LN3#,4#,RN3#,4#

3 WAY

 1
85349-20010

LN36,46..LHD

2WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-14010

LN3#,4#,RN3#,4#

3 WAY

 1
85349-20010

LN36,46..LHD

2WAY

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
53752-89107

LN36,46..LHD

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
53752-89106

LN36,46..LHD

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33346

LN36,46..LHD

*H,L=200

 1
90446-06013

LN36,46..LHD

*H,L=200

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

LN36,46..LHD

*H,L=710

 1
90446-06013

LN36,46..LHD

*H,L=700

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

LN36,46..LHD

*H,L=710

 1
90446-06013

LN36,46..LHD

*H,L=700

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LN3#,4#,RN3#,4#

*H,L=100

 1
Common parts
90463-10338
90463-15617
91661-40616
93540-15014

(8308-8608)

Click highlighted areas on diagram

diagram 85034 85310 85330 85330A 85332 85342 85342 85345 85345 85348 85348 85348 85348 85348 85348 85348 85348D 85348D 85361A 85371 85372 85372 85372 85372 85373 85373 85373 9046310010 9046310337 9046400190 9048025025 9095901136 9098901041 9165640616
Part # Description Qty Price
Common parts
90463-10010
90463-10337
90464-00190
90480-25025
90959-01136
90989-01041
91656-40616
