LN46L-KR3 (1981)

Toyota Hilux

Production Mar 1981 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)

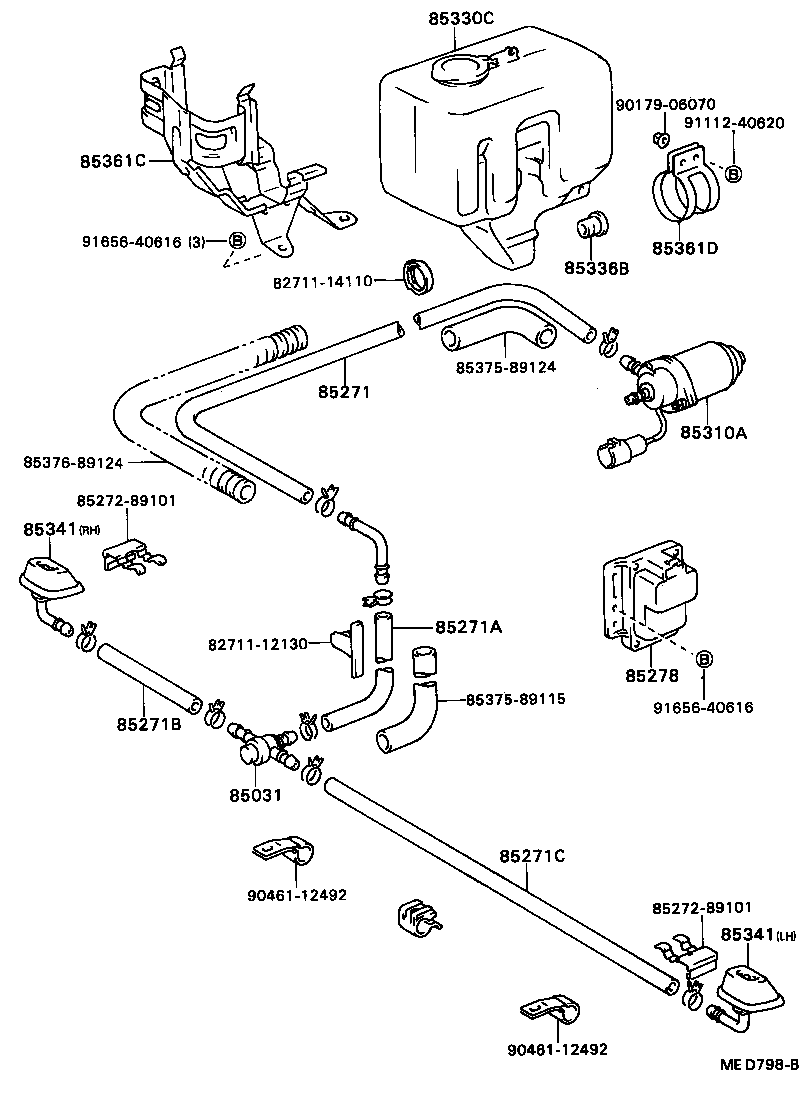

Click highlighted areas on diagram

diagram 8271112130 8271114110 85031 85271 85271A 85271B 85271C 8527289101 8527289101 85278 85310A 85330C 85336B 85341 85341 85361C 85361D 8537589115 8537589124 8537689124 9017906070 9046112492 9046112492 9111240620 9165640616 9165640616
Part # Description Qty Price
Common parts
82711-12130
82711-14110
85272-89101
85375-89115
85375-89124
85376-89124
90179-06070
90461-12492
91112-40620
91656-40616
