LN40R-QRS (1979)

Toyota Hilux

Production Nov 1979 - Aug 1981
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)

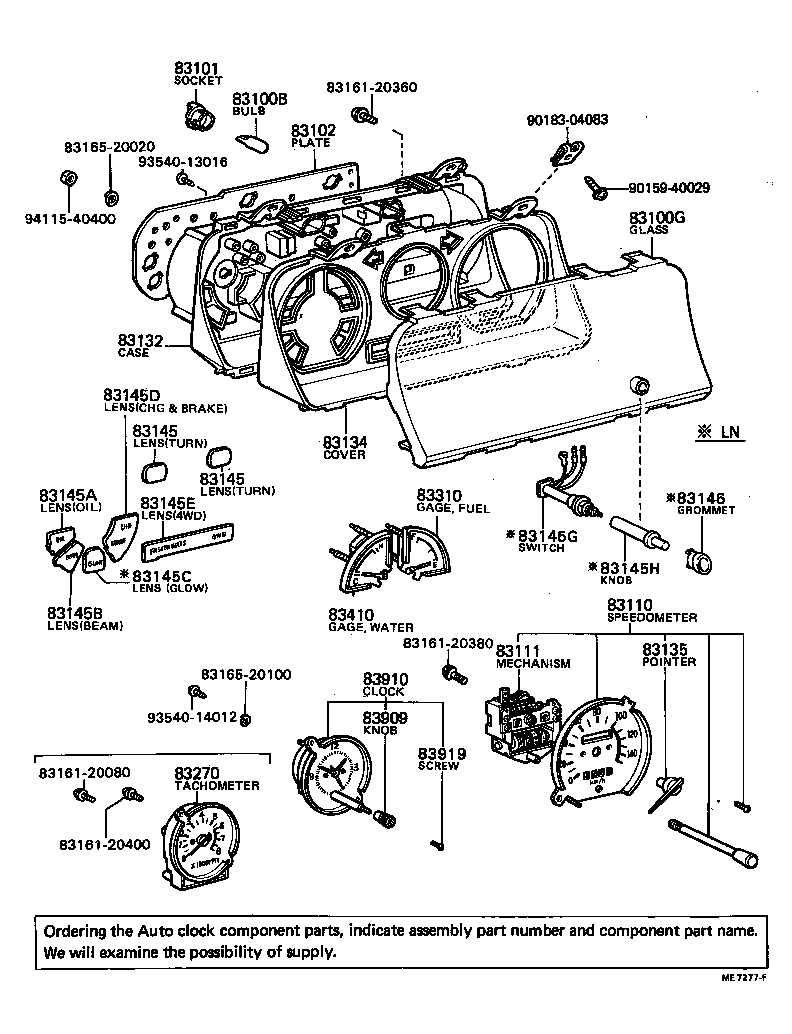

Click highlighted areas on diagram

diagram 83100B 83100G 83101 83102 83110 83111 83132 83134 83135 83145 83145 83145A 83145B 83145C 83145D 83145E 83145G 83145H 83146 8316120080 8316120360 8316120380 8316120400 8316520020 8316520100 83270 83310 83410 83909 83910 83919 9015940029 9018304083 9354013016 9354014012 9411540400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

LN3#,4#,RN3#,4#

12V 3.4W,12V 3.4W

 12
83100G - GLASS, COMBINATION METER
83138-89132

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

LN3#,4#,RN3#,4#

BULB=3.4W

 12
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83102-89130

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
83102-89130

RN36;RN46..ARL..IV3;RN30,31,4#..EUR,GEN,PHL,SA

 1
83110 - SPEEDOMETER ASSY
83110-89132

RN3#,4#..EUR,GEN,PHL,SA

KM

 1
83110-89135

RN3#,4#..EUR,GEN

MILE & KM

 1
83111 - MECHANISM, SPEEDOMETER
83112-89135

RN3#,4#..EUR,GEN

MILE

 1
83112-89132

RN3#,4#..EUR,GEN,PHL,SA

KM

 1
83132 - CASE, COMBINATION METER
83132-89130

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
83134 - COVER, COMBINATION METER, NO.1
83134-89237

LN3#,4#;RN46..ARL..CBU

 1
83134-89130

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 1
83135 - POINTER, SPEEDOMETER
83135-89130

LN3#,4#,RN3#,4#

 1
83145 - LENS, METER, NO.1
83145-89114

LN3#,4#,RN3#,4#

 2
83145 - LENS, METER, NO.1
83145-89114

LN3#,4#,RN3#,4#

 2
83145A - LENS, METER, NO.2
83145-89113

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
83145-89220

LN3#,4#,RN3#,4#..EUR,GEN,PHL,SA

 1
83145B - LENS, METER, NO.3
83145-89112

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
83145-89213

LN3#,4#,RN3#,4#

 1
83145C - LENS, METER, NO.4
83145-89223

LN3#,4#;RN46..ARL..CBU

 1
83145D - LENS, METER, NO.5
83145-89111

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
83145-89219

LN3#,4#,RN3#,4#..EUR,GEN,PHL,SA

 1
83145E - LENS, METER, NO.6
83145-89119

RN30,31,40,41..EUR,GEN,PHL

 1
83310 - GAGE ASSY, FUEL RECEIVER
83310-89130

LN3#,4#,RN3#,4#

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-89130

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
83410-89173

LN3#,4#,RN3#,4#

 1
83410-89192

LN3#,4#,RN3#,4#..GEN

MIDDLE EAST COUNTRY SPEC

 1
Common parts
83161-20080
83161-20360
83161-20380
83161-20400
83165-20020
83165-20100
90159-40029
90183-04083
93540-13016
93540-14012
94115-40400
