Toyota Hilux LN40 SHIFT LEVER & RETAINER

LN40R-MRS (1979)

Toyota Hilux

Production Nov 1979 - Mar 1984

Engine L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

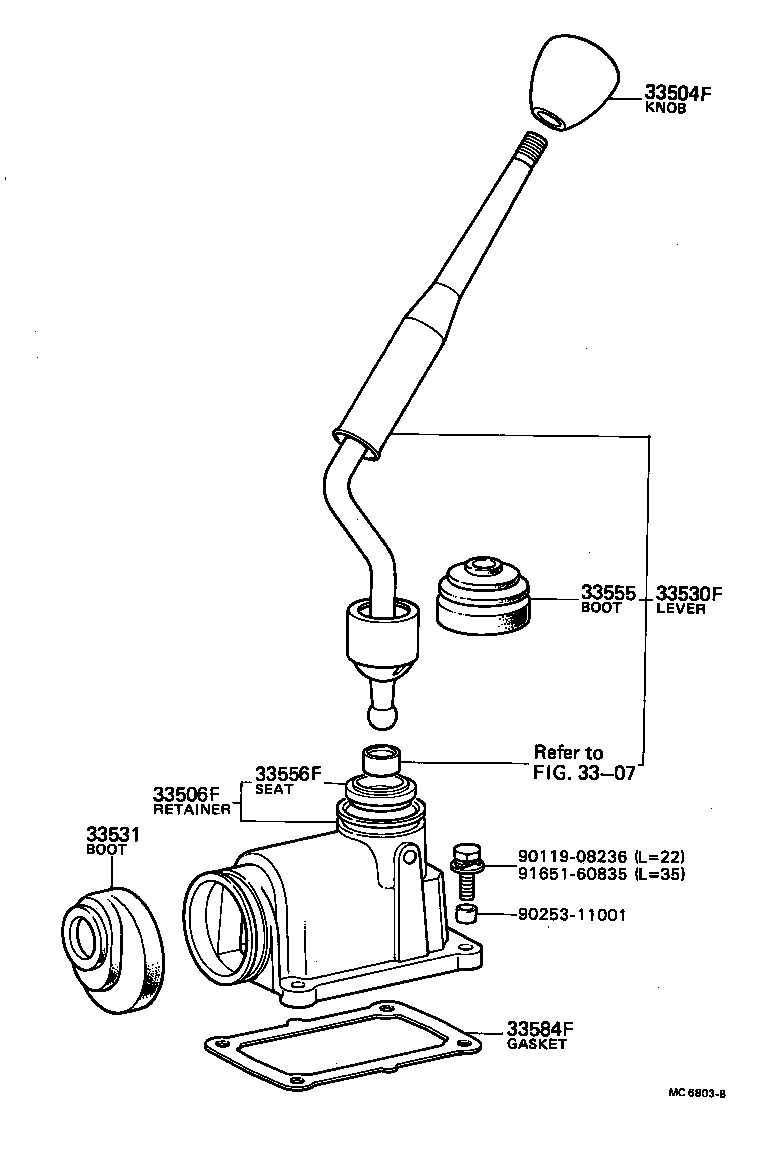

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2005204	LN40,RN31,41..5F URETHANE,BLUE,BLUE,TRIM8#	08/1981 - 07/1983	1
33504-22110	LN30,40..5F BLACK	11/1979 - 10/1980	1
33504-2005216	LN40,RN31,41..5F URETHANE,BROWN,BROWN,TRIM4#	08/1981 - 07/1983	1
33504-2005201	LN40,RN31,41..5F URETHANE,BLACK,BLACK,TRIM2#	08/1978 - 07/1983	1
33504-2211101	LN3#,4#..5F..STD BLACK,BLACK,TRIM2#	10/1980 - 03/1984	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35040	LN30,40..5F	08/1981 - 10/1983	1
33506-35010	LN30,40..5F	11/1979 - 08/1981	1
33506-35060	LN30,40..5F..RCB	10/1983 - 03/1984	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35060	LN30,40..RHD..5F	11/1979 - 03/1984	1
33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER)
33531-35010	LN30,40..5F	11/1979 - 10/1983	1
33555 - BOOT, SHIFT LEVER
33555-35040	LN46..TW;LN30,40..5F;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)	11/1979 - 03/1984	1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33505-35010	LN46..TW;LN30,40..5F;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)	11/1979 - 10/1983	1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-35031	LN30,40..5F	01/1981 - 10/1983	1
33584-35030	LN30,40..5F	11/1979 - 01/1981	1
33584-35050	LN30,40..5F..RCB	10/1983 - 03/1984	1
Common parts
90119-08236
90253-11001
91651-60835
Linked diagrams
3307

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2005204	LN40,RN31,41..5F URETHANE,BLUE,BLUE,TRIM8#	08/1981 - 07/1983	1
33504-22110	LN30,40..5F BLACK	11/1979 - 10/1980	1
33504-2005216	LN40,RN31,41..5F URETHANE,BROWN,BROWN,TRIM4#	08/1981 - 07/1983	1
33504-2005201	LN40,RN31,41..5F URETHANE,BLACK,BLACK,TRIM2#	08/1978 - 07/1983	1
33504-2211101	LN3#,4#..5F..STD BLACK,BLACK,TRIM2#	10/1980 - 03/1984	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35040	LN30,40..5F	08/1981 - 10/1983	1
33506-35010	LN30,40..5F	11/1979 - 08/1981	1
33506-35060	LN30,40..5F..RCB	10/1983 - 03/1984	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35060	LN30,40..RHD..5F	11/1979 - 03/1984	1
33555 - BOOT, SHIFT LEVER
33555-35040	LN46..TW;LN30,40..5F;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)	11/1979 - 03/1984	1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-35031	LN30,40..5F	01/1981 - 10/1983	1
33584-35030	LN30,40..5F	11/1979 - 01/1981	1
33584-35050	LN30,40..5F..RCB	10/1983 - 03/1984	1
Common parts
91611-60830
