LN40R-MRS (1979)
Toyota Hilux

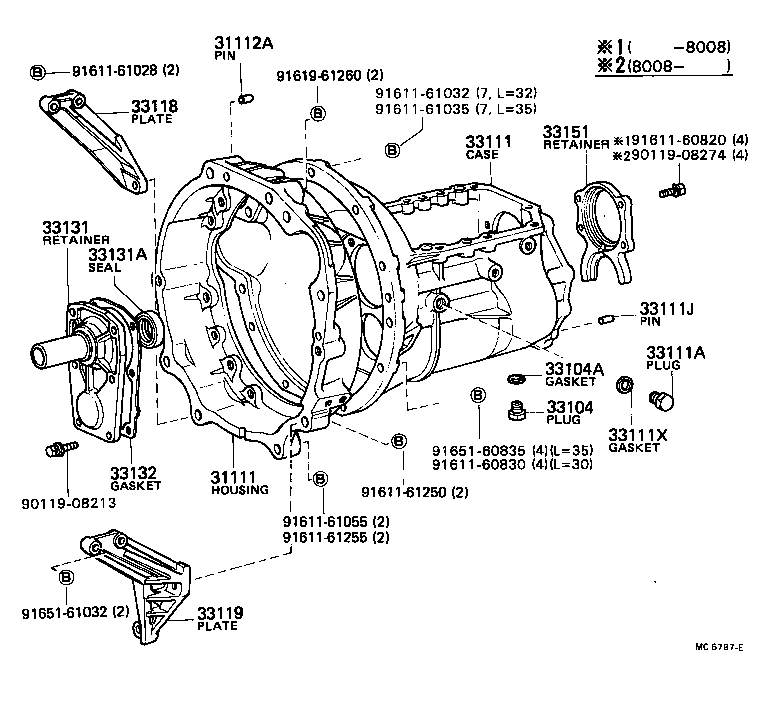

(7911-8310)LN3#,4#..5F,5H ; (8310-8312)LN40..ECB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31112-25010 |
LN30,40..5F,5H |
1 | ||
| 31111-22111 |
LN30,40..5F..RCB |
1 | ||
| 31112-35010 |
LN30,40..5F,5H |
1 | ||
| 31112A - PIN, DOWEL CLUTCH HOUSING | ||||
| 90250-10052 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
2 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LN3#,4#,RN3#,4# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
LN3#,4#,RN3#,4# |
1 | ||
| 12157-10010 |
LN3#,4#,RN3#,4# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-26040 |
RN30,40 |
1 | ||
| 33111-35040 |
LN30,40..5F,5H |
1 | ||
| 33111-35041 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33111-35042 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33101-35010 |
LN30,40..5F..RCB |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
RN31,41..DLX,STD;LN3#,4#,RN30,36,40,46 |
1 | ||
| 90341-18002 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;RN3#,40,41..DLX,STD |
1 | ||
| 90341-18006 |
LN3#,4#,RN3#,4# |
1 | ||
| 90341-18002 |
LN3#,4#,RN3#,4# |
1 | ||
| 90341-18006 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) L=16,OD=12 |
2 | ||
| 90250-12002 |
LN30,40..5F..RCB L=16,OD=12 |
4 | ||
| 90250-12216 |
LN30,40..5F,5H L=14,OD=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
LN3#,4#,RN3#,4# |
1 | ||
| 90430-18007 |
LN3#,4#,RN3#,4# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25020 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35021 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33131-26010 |
RN30,40 |
1 | ||
| 33131-35022 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33131-28010 |
LN30,40..5F..RCB |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H |
1 | ||
| 90311-30115 |
LN30,40..5F..RCB |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-35021 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33132-35022 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33132-28010 |
LN30,40..5F..RCB |
1 | ||
| 33132-30020 |
RN30,40 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35010 |
LN30,40..5F,5H |
1 | ||
| 33151-35011 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33151-28010 |
LN30,40..5F..RCB |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90119-08274 | ||||
| 91611-60820 | ||||
| 91611-60830 | ||||
| 91611-61028 | ||||
| 91611-61032 | ||||
| 91611-61035 | ||||
| 91611-61055 | ||||
| 91611-61250 | ||||
| 91611-61255 | ||||
| 91619-61260 | ||||
| 91651-60835 | ||||
| 91651-61032 | ||||

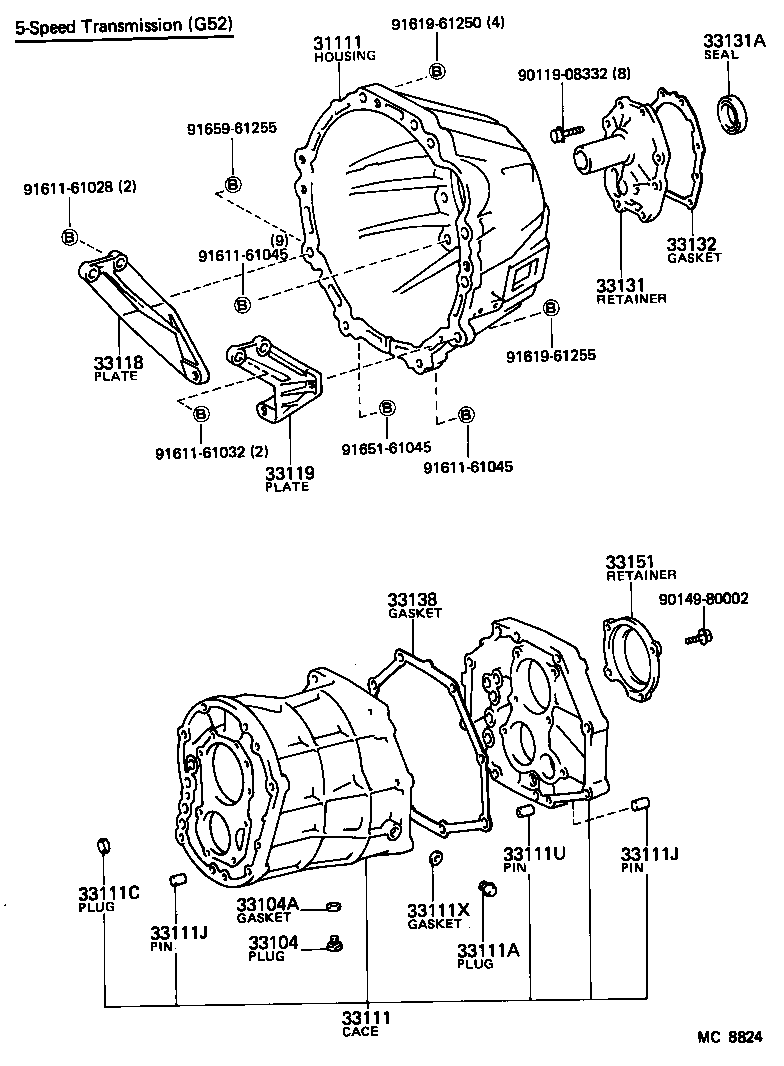

(8310- )5F..RCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31112-25010 |
LN30,40..5F,5H |
1 | ||
| 31111-22111 |
LN30,40..5F..RCB |
1 | ||
| 31112-35010 |
LN30,40..5F,5H |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LN3#,4#,RN3#,4# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
LN3#,4#,RN3#,4# |
1 | ||
| 12157-10010 |
LN3#,4#,RN3#,4# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-26040 |
RN30,40 |
1 | ||
| 33111-35040 |
LN30,40..5F,5H |
1 | ||
| 33111-35041 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33111-35042 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33101-35010 |
LN30,40..5F..RCB |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
RN31,41..DLX,STD;LN3#,4#,RN30,36,40,46 |
1 | ||
| 90341-18002 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;RN3#,40,41..DLX,STD |
1 | ||
| 90341-18006 |
LN3#,4#,RN3#,4# |
1 | ||
| 90341-18002 |
LN3#,4#,RN3#,4# |
1 | ||
| 90341-18006 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LN30,40..5F..RCB OD=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) L=16,OD=12 |
2 | ||
| 90250-12002 |
LN30,40..5F..RCB L=16,OD=12 |
4 | ||
| 90250-12216 |
LN30,40..5F,5H L=14,OD=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) L=16,OD=12 |
2 | ||
| 90250-12002 |
LN30,40..5F..RCB L=16,OD=12 |
4 | ||
| 90250-12216 |
LN30,40..5F,5H L=14,OD=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
LN30,40..5F..RCB L=14,OD=15 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
LN3#,4#,RN3#,4# |
1 | ||
| 90430-18007 |
LN3#,4#,RN3#,4# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25020 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35021 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33131-26010 |
RN30,40 |
1 | ||
| 33131-35022 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33131-28010 |
LN30,40..5F..RCB |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H |
1 | ||
| 90311-30115 |
LN30,40..5F..RCB |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-35021 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33132-35022 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33132-28010 |
LN30,40..5F..RCB |
1 | ||
| 33132-30020 |
RN30,40 |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33138-28010 |
LN30,40..5F..RCB |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35010 |
LN30,40..5F,5H |
1 | ||
| 33151-35011 |
LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 33151-28010 |
LN30,40..5F..RCB |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61032 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91651-61045 | ||||
| 91659-61255 | ||||
