LN40R-KRQ (1980)

Toyota Hilux

Production Apr 1980 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)ARL

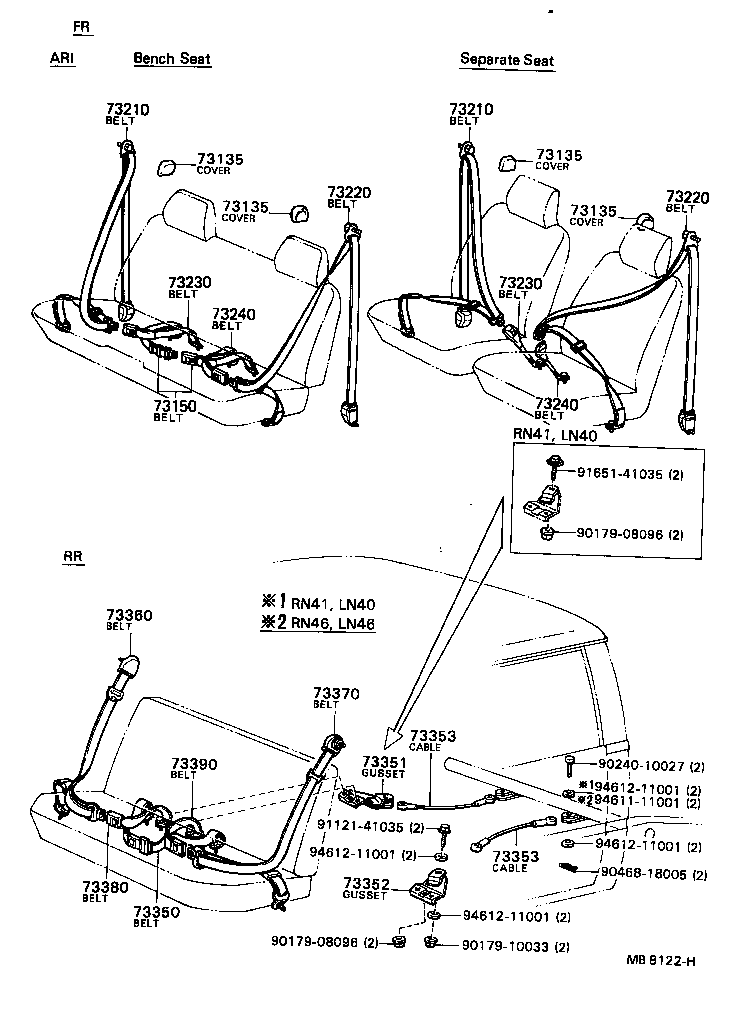

Click highlighted areas on diagram

diagram 73135 73135 73135 73135 73150 73210 73210 73220 73220 73230 73230 73240 73240 73350 73351 73352 73353 73353 73360 73370 73380 73390 9017908096 9017908096 9017910033 9024010027 9046818005 9112141035 9165141035 9461111001 9461211001 9461211001 9461211001 9461211001
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-8910104

LN4#,RN3#,4#..ARL

BLUE,BLUE,TRIM8#

 2
73135-8910101

LN4#,RN3#,4#..ARL

BLACK,BLACK,TRIM2#

 2
73135-8910105

LN4#,RN3#,4#..ARL

BEIGE,BEIGE,TRIM4#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-8910104

LN4#,RN3#,4#..ARL

BLUE,BLUE,TRIM8#

 2
73135-8910101

LN4#,RN3#,4#..ARL

BLACK,BLACK,TRIM2#

 2
73135-8910105

LN4#,RN3#,4#..ARL

BEIGE,BEIGE,TRIM4#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-8910104

LN4#,RN3#,4#..ARL

BLUE,BLUE,TRIM8#

 2
73135-8910101

LN4#,RN3#,4#..ARL

BLACK,BLACK,TRIM2#

 2
73135-8910105

LN4#,RN3#,4#..ARL

BEIGE,BEIGE,TRIM4#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-8910104

LN4#,RN3#,4#..ARL

BLUE,BLUE,TRIM8#

 2
73135-8910101

LN4#,RN3#,4#..ARL

BLACK,BLACK,TRIM2#

 2
73135-8910105

LN4#,RN3#,4#..ARL

BEIGE,BEIGE,TRIM4#

 2
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73130-8910201

RN31..4H..IV3;RN3#,4#..(DLX,STD)..(ARL,GEN)

BLACK,BLACK,TRIM2#

 1
73130-8910201

LN30,RN30,40..T1..(ARL,GEN,SA)

BLACK,BLACK,TRIM2#

 1
73130-8910204

LN30,RN30,40..T1..(ARL,GEN,SA)

BLUE,BLUE,TRIM8#

 1
73130-8910204

RN31..4H..IV3;RN3#,4#..(DLX,STD)..(ARL,GEN)

BLUE,BLUE,TRIM8#

 1
73130-8910205

RN31..4H..IV3;RN3#,4#..(DLX,STD)..(ARL,GEN)

BEIGE,BEIGE,TRIM4#

 1
73130-8910205

LN30,RN30,40..T1..(ARL,GEN,SA)

BEIGE,BEIGE,TRIM4#

 1
73130-8910204

LN40,RN31,41..T1..(DLX,STD)..(ARL,GEN)

BLUE,BLUE,TRIM8#

 1
73130-8910201

LN40,RN31,41..T1..(DLX,STD)..(ARL,GEN)

BLACK,BLACK,TRIM2#

 1
73130-8910205

LN40,RN31,41..T1..(DLX,STD)..(ARL,GEN)

BEIGE,BEIGE,TRIM4#

 1
73130-8910201

LN30,RN30,40..T1..(ARL,GEN)

BLACK,BLACK,TRIM2#

 1
73130-8910205

LN30,RN30,40..T1..(ARL,GEN)

BEIGE,BEIGE,TRIM4#

 1
73130-8910204

LN30,RN30,40..T1..(ARL,GEN)

BLUE,BLUE,TRIM8#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8910404

LN4#,RN3#,4#..ARL

*ELR,BLUE,BLUE,TRIM8#

 1
73210-8910405

LN4#,RN3#,4#..ARL

*ELR,BEIGE,BEIGE,TRIM4#

 1
73210-8910401

LN4#,RN3#,4#..ARL

*ELR,BLACK,BLACK,TRIM2#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8910404

LN4#,RN3#,4#..ARL

*ELR,BLUE,BLUE,TRIM8#

 1
73210-8910405

LN4#,RN3#,4#..ARL

*ELR,BEIGE,BEIGE,TRIM4#

 1
73210-8910401

LN4#,RN3#,4#..ARL

*ELR,BLACK,BLACK,TRIM2#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-8910404

LN4#,RN3#,4#..ARL

*ELR,BLUE,BLUE,TRIM8#

 1
73210-8910401

LN4#,RN3#,4#..ARL

*ELR,BLACK,BLACK,TRIM2#

 1
73210-8910405

LN4#,RN3#,4#..ARL

*ELR,BEIGE,BEIGE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-8910404

LN4#,RN3#,4#..ARL

*ELR,BLUE,BLUE,TRIM8#

 1
73210-8910401

LN4#,RN3#,4#..ARL

*ELR,BLACK,BLACK,TRIM2#

 1
73210-8910405

LN4#,RN3#,4#..ARL

*ELR,BEIGE,BEIGE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8910701

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BLACK,BLACK,TRIM2#

 1
73230-8910704

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BLUE,BLUE,TRIM8#

 1
73230-8910705

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BEIGE,BEIGE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8910701

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BLACK,BLACK,TRIM2#

 1
73230-8910704

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BLUE,BLUE,TRIM8#

 1
73230-8910705

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BEIGE,BEIGE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-8910704

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BLUE,BLUE,TRIM8#

 1
73230-8910701

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BLACK,BLACK,TRIM2#

 1
73230-8910705

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BEIGE,BEIGE,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-8910704

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BLUE,BLUE,TRIM8#

 1
73230-8910701

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BLACK,BLACK,TRIM2#

 1
73230-8910705

RN46..ARL..IV3;RN3#,40,41..STD..ARL

BEIGE,BEIGE,TRIM4#

 1
Common parts
90179-08096
90179-10033
90240-10027
90468-18005
91121-41035
91651-41035
94611-11001
94612-11001
