LN40R-KRP (1979)

Toyota Hilux

Production Sep 1979 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )L

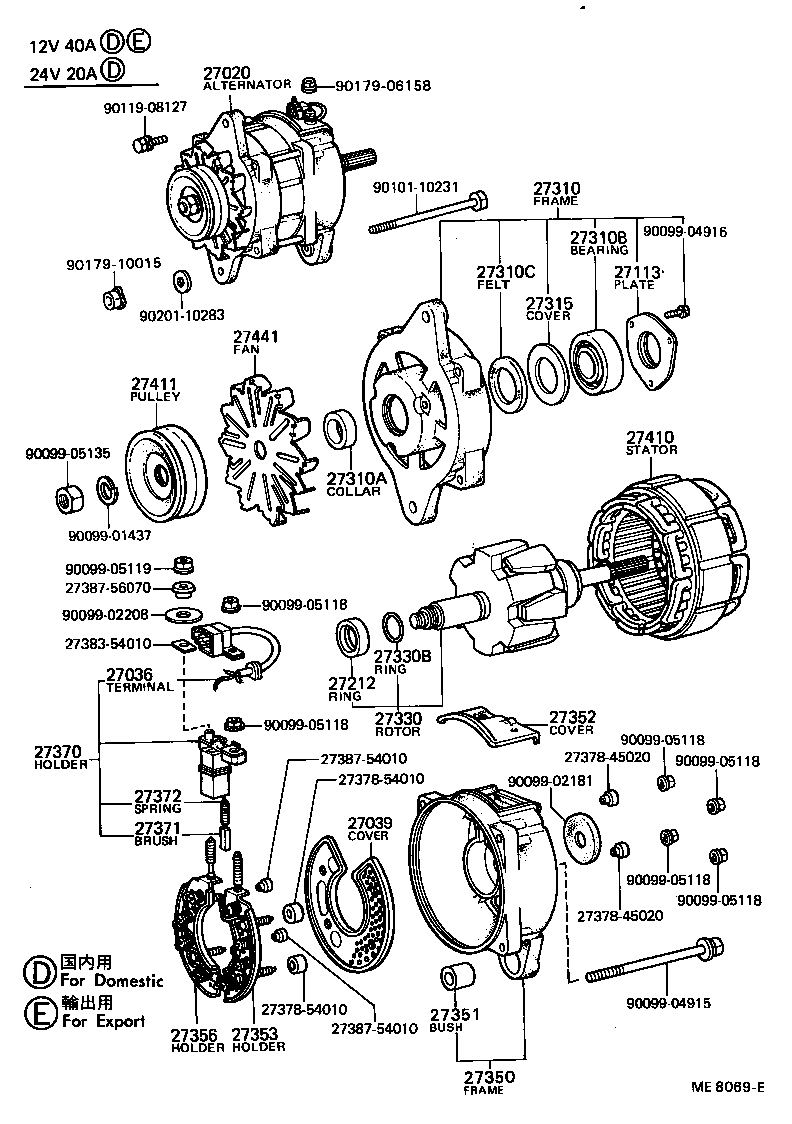

Click highlighted areas on diagram

diagram 27020 27036 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330B 27350 27351 27352 27353 27356 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738754010 2738754010 2738756070 27410 27411 27441 9009901437 9009902181 9009902208 9009904915 9009904916 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9010110231 9011908127 9017906158 9017910015 9020110283
Part # Description Qty Price
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54011

L..LN30,40

12V 40A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-56070
90099-01437
90099-02181
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05135
90101-10231
90119-08127
90179-06158
90179-10015
90201-10283
