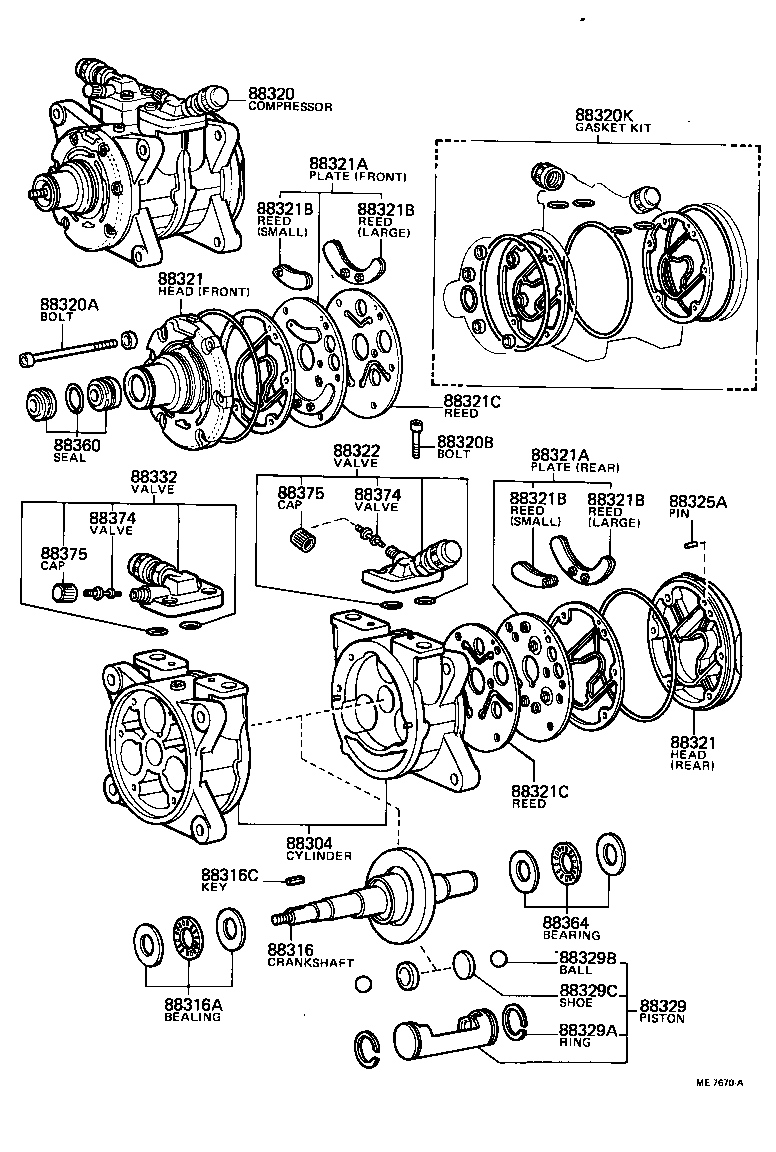

LN30R-MRN3 (1979)
Toyota Hilux
(7808-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-12060 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 90099-10123 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04923 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-35010 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12030 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA FR |
1 | ||
| 88322-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12030 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA FR |
1 | ||
| 88322-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88305-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88305-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
2 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
3 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 88317-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88329B - BALL, PISTON | ||||
| 90099-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-12060 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-35010 |
RN46..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-12070 |
RN46..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 90099-10123 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41..ARL,GEN,ME,PHL,SA |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41..ARL,GEN,ME,PHL,SA |
2 | ||
