LN30L-KR (1979)
Toyota Hilux
(7808-8108)LN3#,4#,RN30,36,40,46..GEN,PHL,SA ; (8108- )LN30,40,RN30,40..GEN,PHL

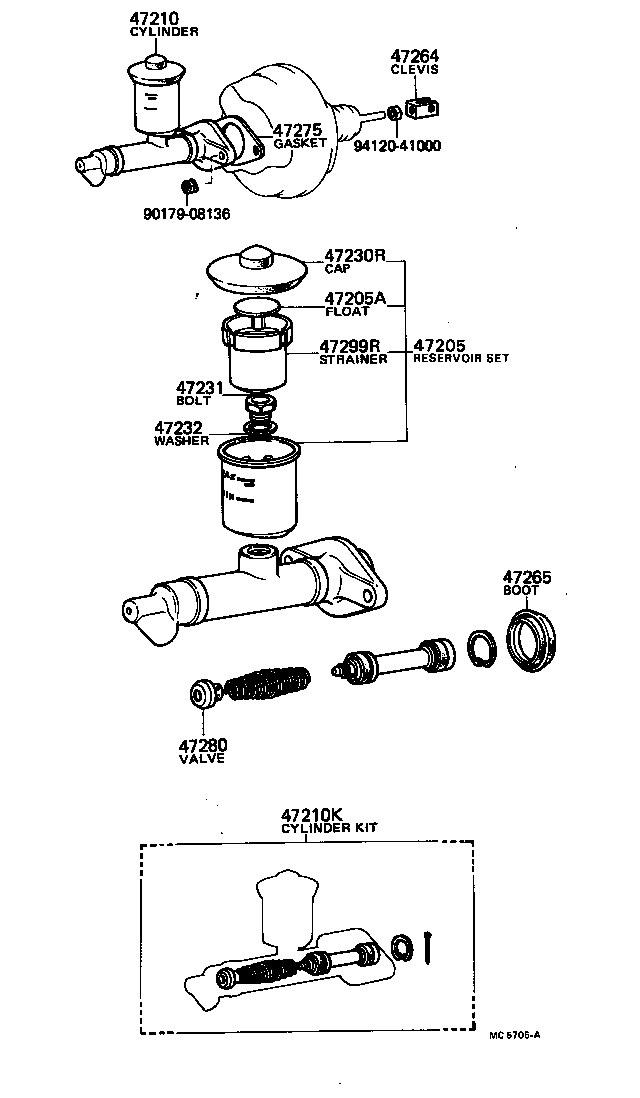

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 94120-41000 | ||||

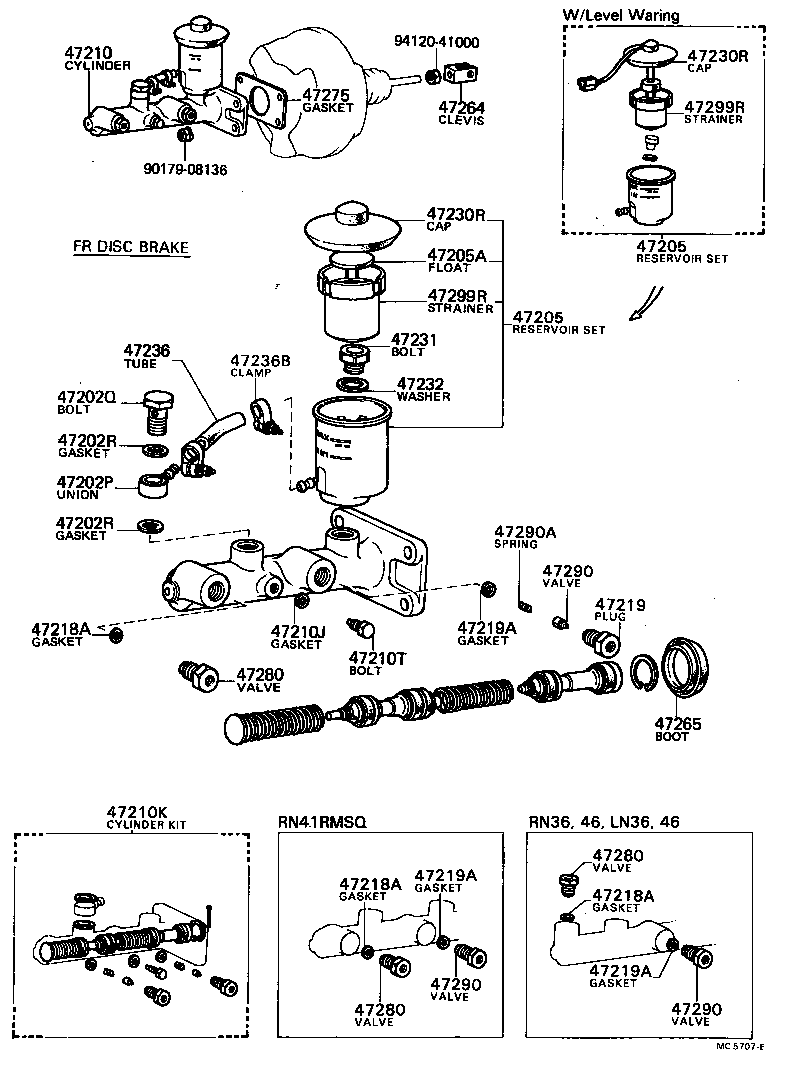

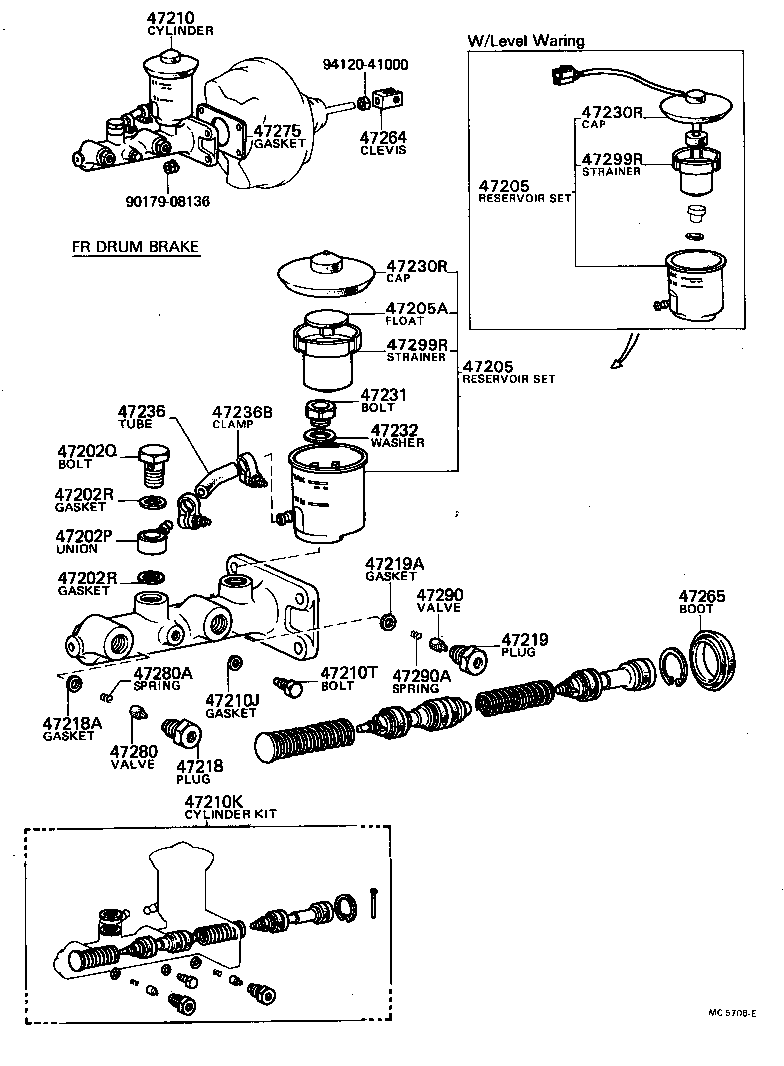

(7808-8108)RN41..DLX,STD ; (7808-8108)RN41..SR5..GEN ; (7808-8108)LN30,40,RN30,31,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
LN3#,4#,RN3#,4# |
1 | ||
| 90405-10125 |
LN3#,4#,RN3#,4# |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
LN3#,4#,RN3#,4# |
1 | ||
| 90401-16078 |
LN3#,4#,RN3#,4# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 90430-06104 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 90109-06008 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-30030 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218-30030 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218-30030 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218-30030 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-30030 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47218-30030 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47234-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47236B - CLAMP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
LN3#,4#,RN3#,4# |
2 | ||
| 90460-16069 |
LN3#,4#,RN3#,4# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05001 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90504-05001 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90504-05001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90504-05001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90504-05001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 94128-41000 | ||||
(8108- )RN41..SR5..GEN ; (8108- )RN41..DLX,STD..GEN,ME,SA ; (8108- )LN30,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
LN3#,4#,RN3#,4# |
1 | ||
| 90405-10125 |
LN3#,4#,RN3#,4# |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
LN3#,4#,RN3#,4# |
1 | ||
| 90401-16078 |
LN3#,4#,RN3#,4# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 90430-06104 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 90109-06008 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-30030 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218-30030 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218-30030 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218-30030 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-30030 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47218-30030 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47234-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47236B - CLAMP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
LN3#,4#,RN3#,4# |
2 | ||
| 90460-16069 |
LN3#,4#,RN3#,4# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05001 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90504-05001 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90504-05001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90504-05001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90504-05001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 94128-41000 | ||||
(7808-8108)SR5..IV3 ; (7808-8108)RN31,41..RCB ;(7808-8108)LN40,RN30,40..EUR ; (790
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
LN3#,4#,RN3#,4# |
1 | ||
| 90405-10125 |
LN3#,4#,RN3#,4# |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
LN3#,4#,RN3#,4# |
1 | ||
| 90401-16078 |
LN3#,4#,RN3#,4# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 90430-06104 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 90109-06008 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-30030 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47218-30030 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47234-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47236B - CLAMP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
LN3#,4#,RN3#,4# |
2 | ||
| 90460-16069 |
LN3#,4#,RN3#,4# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90504-05001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 94120-41000 | ||||
(8108- )LN30,40,RN30,31,40,41..ARL,EUR,GEN,ME,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
LN3#,4#,RN3#,4# |
1 | ||
| 90405-10125 |
LN3#,4#,RN3#,4# |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
LN3#,4#,RN3#,4# |
1 | ||
| 90401-16078 |
LN3#,4#,RN3#,4# |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 90430-16242 |
LN3#,4#,RN3#,4# |
2 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47202-20121 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47201-35110 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 90430-06104 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04493-35050 |
RN41..SR5..GEN;LN30,RN30,31,40..EUR,GEN,ME,PHL,SA;LN40,RN41..(DLX,STD)..(EUR,GEN,ME,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04471-26020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 04493-35050 |
RN31..ECB;RN41..SR5..GEN..ECB;LN3#,4#,RN30,36,4#..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 90109-06008 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 90430-11001 |
RN31..ECB;RN46..ARL..CBU;RN41..SR5..GEN..ECB;LN3#,4#,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-30030 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47218-30030 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90430-11001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47230-20040 |
LN30,40,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47231-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47232-30010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47234-14010 |
LN3#,4#,RN3#,4# |
1 | ||
| 47236B - CLAMP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
LN3#,4#,RN3#,4# |
2 | ||
| 90460-16069 |
LN3#,4#,RN3#,4# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47264-12040 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-35030 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47265-20050 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-14010 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47275-22010 |
LN3#,4#,RN3#,4# TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47280-26020 |
LN30,40,RN30,40..STD..(GEN,PHL) SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47280-26020 |
LN3#,4#,RN30,36,40,46..GEN,SA SINGLE M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47281-30020 |
RN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA) FR DRUM BRAKE,TANDEM M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47281-30020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 90504-05001 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20020 |
LN30,40,RN30,40..STD..GEN SINGLE M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| 47299-20010 |
RN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41 TANDEM M/C |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 94120-41000 | ||||
(0408-0808)ANCOM,ARL,GCC,GEN,IDN,MA,PHL,TH ; (0710- )LAN15..PKN ; (0808- )KUN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AB602 | ||||
| 90016-AC701 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
(1107-1310)SADCB ; (1107-1310)LAN15,25..LHD ; (1107-1310)GGN25,35,KUN15,2#,3#,TGN15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 47268-0K030 | ||||
| 90149-40006 | ||||
| Linked diagrams | ||||
| 4703 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
