LN192R-PRMDSN (1998)
Toyota Hilux

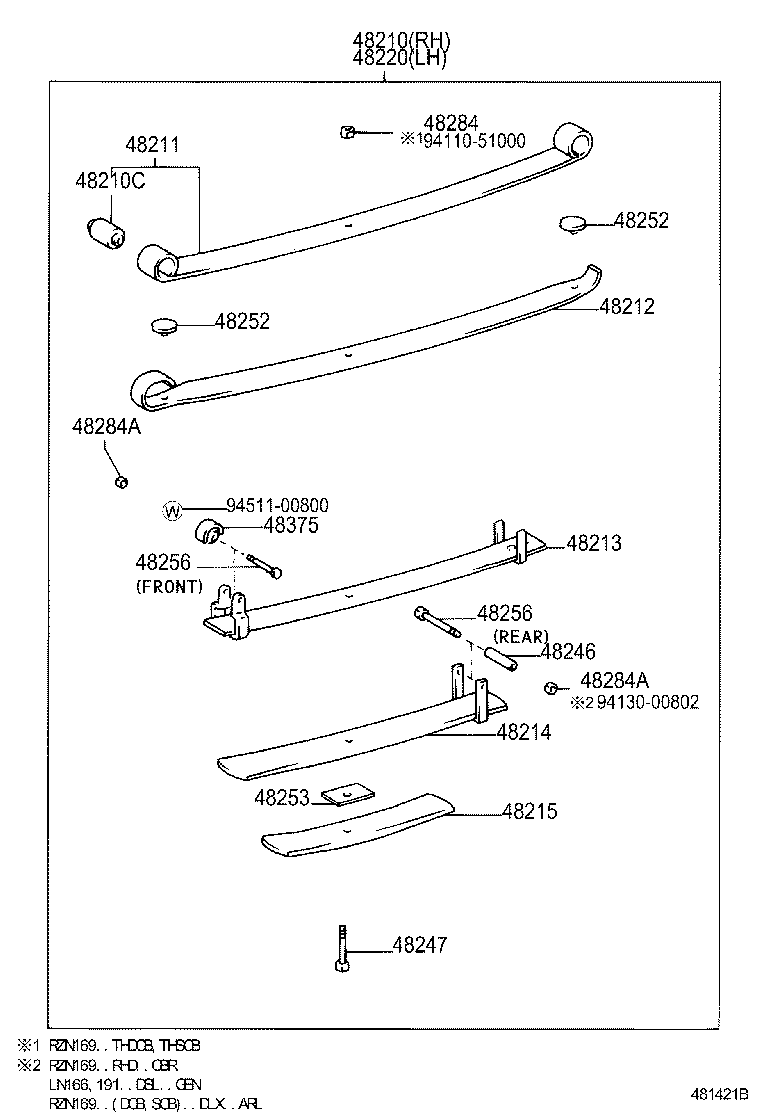

ILLUST NO. 2 OF 2(9912- )RZN169..RHD..ARL,GEN ; (0208- )LN166..MA ; (0208- )KZN165..IV3 ; (
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA 6-LEAF |
1 | ||
| 48210-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA 6-LEAF |
1 | ||
| 48210-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA 6-LEAF |
1 | ||
| 48210-35881 |
LN167,192..SA;RZN194..SADCB 6-LEAF |
1 | ||
| 48210-35881 |
LN167,192..SA;RZN194..SADCB 6-LEAF |
1 | ||
| 48210-35881 |
LN167,192..SA;RZN194..SADCB 6-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
LN152..IV3;RZN169..DCB..SA;RZN169..DLX..SA;LN167..SCB..DEFI;RZN169..CBR..GCC;LN166..LHD..DCB..DSL;LN167..DCB..DLX..DEFI..ARL;LN167,RZN147,149..(DCB,XTR)..(CBR,DEFI)..(GCC,TH);KZN190,LN146,172,192,RZN154..DLX..(CBR,DEFI,DSL,TDE);KZN165,LN192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI,TDE);KZN165,LN167,RZN174,194..(DCB,SADCB,SCB,THXTR)..(DSL,EFI,TDE)..(ARL,SA) |
2 | ||
| 90389-14004 |
LN152..IV3;RZN169..DCB..SA;RZN169..DLX..SA;LN167..SCB..DEFI;RZN169..CBR..GCC;LN166..LHD..DCB..DSL;LN167..DCB..DLX..DEFI..ARL;LN167,RZN147,149..(DCB,XTR)..(CBR,DEFI)..(GCC,TH);KZN190,LN146,172,192,RZN154..DLX..(CBR,DEFI,DSL,TDE);KZN165,LN192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI,TDE);KZN165,LN167,RZN174,194..(DCB,SADCB,SCB,THXTR)..(DSL,EFI,TDE)..(ARL,SA) |
2 | ||
| 90389-14004 |
LN152..IV3;RZN169..DCB..SA;RZN169..DLX..SA;LN167..SCB..DEFI;RZN169..CBR..GCC;LN166..LHD..DCB..DSL;LN167..DCB..DLX..DEFI..ARL;LN167,RZN147,149..(DCB,XTR)..(CBR,DEFI)..(GCC,TH);KZN190,LN146,172,192,RZN154..DLX..(CBR,DEFI,DSL,TDE);KZN165,LN192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI,TDE);KZN165,LN167,RZN174,194..(DCB,SADCB,SCB,THXTR)..(DSL,EFI,TDE)..(ARL,SA) |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48201-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48201-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48212-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48212-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48202-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48202-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48203-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48203-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48204-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48204-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48204-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA 6-LEAF |
1 | ||
| 48210-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA 6-LEAF |
1 | ||
| 48210-35880 |
LN172;LN16#,192,RZN169,194..GCC,SA 6-LEAF |
1 | ||
| 48210-35881 |
LN167,192..SA;RZN194..SADCB 6-LEAF |
1 | ||
| 48210-35881 |
LN167,192..SA;RZN194..SADCB 6-LEAF |
1 | ||
| 48210-35881 |
LN167,192..SA;RZN194..SADCB 6-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48146-60070 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48146-60070 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-27020 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48147-27020 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48147-27020 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,192..SA;RZN194..SADCB |
8 | ||
| 48252-26070 |
LN167,192..SA;RZN194..SADCB |
8 | ||
| 48252-26070 |
LN167,192..SA;RZN194..SADCB |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LN167,192..SA;RZN194..SADCB |
8 | ||
| 48252-26070 |
LN167,192..SA;RZN194..SADCB |
8 | ||
| 48252-26070 |
LN167,192..SA;RZN194..SADCB |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) REAR |
2 | ||
| 48256-36570 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) REAR |
2 | ||
| 48256-36570 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) REAR |
2 | ||
| 48256-35360 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) FRONT |
2 | ||
| 48256-35360 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) FRONT |
2 | ||
| 48256-35360 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) FRONT |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-36570 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) REAR |
2 | ||
| 48256-36570 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) REAR |
2 | ||
| 48256-36570 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) REAR |
2 | ||
| 48256-35360 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) FRONT |
2 | ||
| 48256-35360 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) FRONT |
2 | ||
| 48256-35360 |
LN167..DLX..DEFI..ARL;KZN165..(THDCB,THSCB)..SR;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);LN167,RZN169..(DCB,SCB)..(DEFI,EFI)..(SA,TH);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) FRONT |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48284-37130 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48284-37130 |
LN167,192..SA;RZN194..SADCB |
2 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN167,192..SA;RZN194..SADCB |
4 | ||
| 48284-20440 |
LN167,192..SA;RZN194..SADCB |
4 | ||
| 48284-20440 |
LN167,192..SA;RZN194..SADCB |
4 | ||
| 48284A - NUT, REAR SPRING CLIP | ||||
| 48284-20440 |
LN167,192..SA;RZN194..SADCB |
4 | ||
| 48284-20440 |
LN167,192..SA;RZN194..SADCB |
4 | ||
| 48284-20440 |
LN167,192..SA;RZN194..SADCB |
4 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-35011 |
LN167..DLX..DEFI..ARL;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);KZN165,LN192..(THDCB,THSCB,XTR)..SR..(DEFI,TDE);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) |
2 | ||
| 48375-35011 |
LN167..DLX..DEFI..ARL;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);KZN165,LN192..(THDCB,THSCB,XTR)..SR..(DEFI,TDE);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) |
2 | ||
| 48375-35011 |
LN167..DLX..DEFI..ARL;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA);KZN165,LN192..(THDCB,THSCB,XTR)..SR..(DEFI,TDE);KZN165,190,LN166,172,192,RZN194..(DCB,SADCB,SCB,THXTR,XTR)..(ARL,GCC,SA) |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
| 94130-00802 | ||||
| 94511-00800 | ||||
ILLUST NO. 2 OF 2(0408-0508)KUN1#,TGN16..XTR..TH ; (0408- )KUN15,TGN16..SMT,XTR..DLX ; (0408-
5-LEAF
