LN192R-CRMSET (2000)

Toyota Hilux

Production Sep 2000 - Sep 2001
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )5LE..LN167,192 ; (0009- )5LE..LN147,152,172..ARL

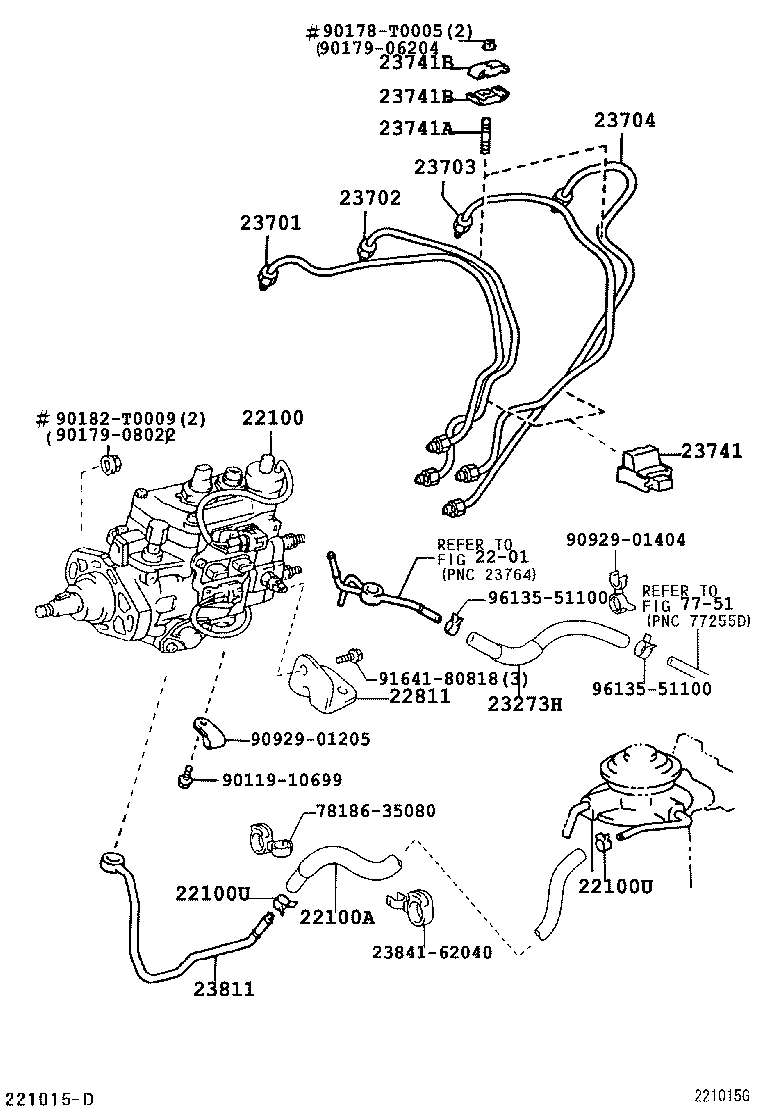

Click highlighted areas on diagram

diagram 2201 22100 22100A 22100U 22100U 22811 23273H 23701 23702 23703 23704 23741 23741A 23741B 23741B 23811 2384162040 7751 7818635080 9011910699 90178T0005 9017906204 9017908022 90182T0009 9092901205 9092901404 9164180818 9613551100 9613551100
Part # Description Qty Price
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-54160

5LE..LN167,192..TH

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-05020

5LE..LN147,152,157,167,172,192..ARL,TH

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100

2L,3L,5L..LN14#,15#,16#,17#,19#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54030

5LE..LN167..TH;5LE..LN152..IV3;5L..LN152,167..ARL,SA;5LE..LN152,157,192..SA,TH;5LE..LN167..DCB..DLX..ARL;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,3L,5L#..LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA)

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095

2L,3L,5L..LN14#,15#,16#,17#,19#

 2
90080-11036

2L..LN145..SCB..TH;2L,5L#..LN147,15#,167,172,192..RHD

(L)

 2
90116-06095

2L..LN145..SCB..TH;2L,5L#..LN147,15#,167,172,192..RHD

(J)

 2
Common parts
23841-62040
78186-35080
90119-10699
90178-T0005
90179-06204
90179-08022
90182-T0009
90929-01205
90929-01404
91641-80818
96135-51100
Linked diagrams
2201
7751
