LN191L-PRMDS (1997)
Toyota Hilux
(9708- )LN141,145,146,155,166,171,191..LHD

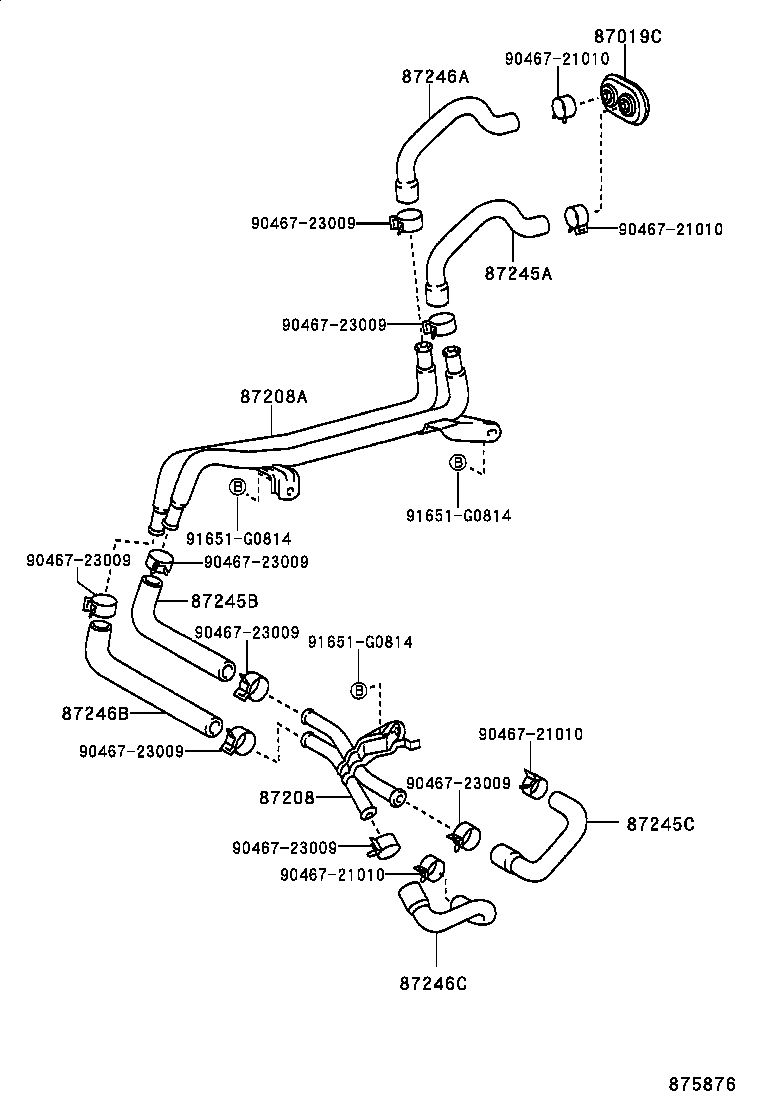

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01405 |
LN145,155..LHD..TH;KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA |
1 | ||
| 90480-01405 |
RZN169..CBR;RZN169..DCB..SA;KZN165..THDCB..SR;LN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);KZN165,LN152..(SCB,THXTR,XTR)..IV3;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,LN167,RZN154,194..(DCB,SCB,THXTR,XTR)..(DSL,EFI,TDE)..(ARL,SA)..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 90480-01405 |
LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU |
1 | ||
| 90480-01405 |
LN145,155..LHD..TH;KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-35280 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| 87208-35280 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
1 | ||
| 87208-35280 |
LN152..IV3;LN155..LHD;LN167..DSL;LN167..DCB..DLX..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-35300 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
1 | ||
| 87208-35300 |
LN152..IV3;LN155..LHD;LN167..DSL;LN167..DCB..DLX..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN14#,166,17#,19#..DLX..(ARL,GCC,GEN,SA) |
1 | ||
| 87208-35300 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-35860 |
LN141,145,146,155,166,171,191..LHD |
1 | ||
| 87245-35860 |
LN145..LHD..GEN;LN141,146,155,166,171,191..LHD..DSL |
1 | ||
| 87245-35860 |
LN145,166,171,191..LHD..GEN |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87254-35010 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#..(DEFI,DSL)..(ARL,GCC,GEN,SA) |
1 | ||
| 87254-35010 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87244-35010 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#..(DEFI,DSL)..(ARL,GCC,GEN,SA) |
1 | ||
| 87244-35010 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-35860 |
LN145..LHD..GEN;LN141,146,155,166,171,191..LHD..DSL |
1 | ||
| 87245-35860 |
LN141,145,146,155,166,171,191..LHD |
1 | ||
| 87245-35860 |
LN145,166,171,191..LHD..GEN |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87242-35010 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#..(DEFI,DSL)..(ARL,GCC,GEN,SA) |
1 | ||
| 87242-35010 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87243-35010 |
LN145,155..LHD..TH;LN14#,152,16#,17#,19#..(DEFI,DSL)..(ARL,GCC,GEN,SA) |
1 | ||
| 87243-35010 |
LN145..LHD..IV3;LN145,166,171,191..GEN..CBU |
1 | ||
| Common parts | ||||
| 90467-21010 | ||||
| 90467-23009 | ||||
| 91651-G0814 | ||||
