Toyota Hilux LN191 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
HILUX
LN191L-PRMDS (1997)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

LN191L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(9708- )

Click highlighted areas on diagram

O RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

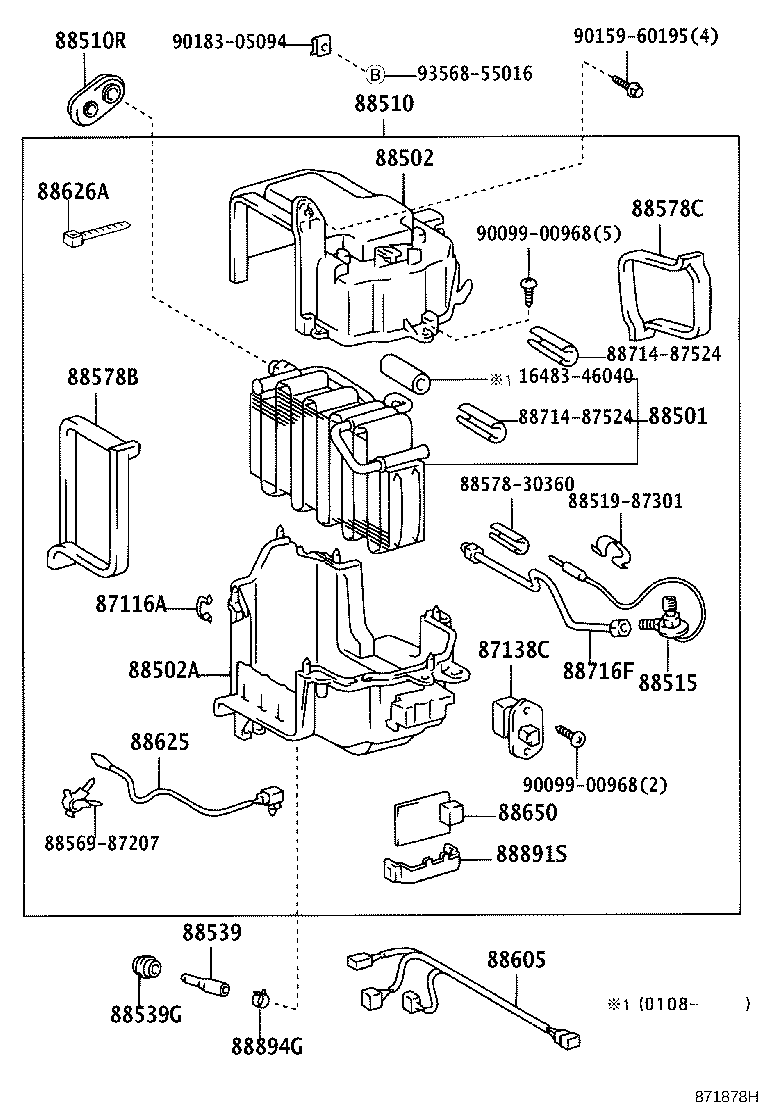

ILLUST NO. 1 OF 4(9708-0404)LHD

Click highlighted areas on diagram

(0208- )DEALER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	LN167,192,RZN169,194..DCB,SCB;LN141,145,146,147,166,17#,191,RZN14#,154,168,174,193..ARL,GCC,GEN	08/1997 - 08/1998	1
87116-14010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
87116-14010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1998 - 08/2000	1
87116-14010	RZN169..ARL,SA;LN145..DCB..IV3;LN145..LHD..IV3;LN145..GEN..CBU;LN167..SCB..DEFI;LN155,RZN142..LHD;RZN147..ARL,GCC,GEN;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);KZN165,RZN144,149,154,169..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,152,166,17#,19#,RZN148,168,174,193..DLX	09/2000 - 09/2001	1
87116-14010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2002 - 06/2005	1
87138C - RESISTOR, BLOWER
87138-35080	RZN169..SA;LN167..SR..SA;LN145,155,166,RZN147,169..LHD;KZN165,190,LN141,146,171,19#,RZN142,144,148,149,154,168,19#..(GCC,GEN,SA)..CBU	08/1999 - 08/2000	1
87138-35080	RZN169..SA;LN167..SR..SA;LN145,155,166,RZN142,147,169..LHD;KZN165,190,LN141,146,171,19#,RZN144,148,149,154,168,19#..(DCB,SCB,XTR)..MTM..(GCC,GEN,SA)..CBU	08/2000 - 08/2001	1
87138-35080	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2002 - 06/2005	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35070	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 08/2002	1
88501-35070	RZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;LN155,171,191,RZN142,147,154..LHD;LN145,RZN148,149,168..LHD..DCB..(CO,TH)	08/2001 - 08/2002	1
88501-35110	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2002 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35050	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX;LN141,145,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1998 - 09/2001	1
88502-35050	LN141,145,146,166,171,191,RZN14#,154,16#,193..LHD..(GCC,GEN)	08/1997 - 08/1998	1
88502-35050	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 08/2002	1
88521-35240	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2002 - 12/2999	1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-35060	RZN169..GCC;LN141,145,146,155,166,171,191,RZN142,147,148,168,193..LHD	08/1999 - 09/1999	1
88502-35060	LN141,145,146,155,166,171,191,RZN142,147,148,168,193..LHD	08/1998 - 08/1999	1
88502-35060	RZN149..EFI..GEN;LN141,145,146,155,166,171,191,RZN142,147,148,168,193..LHD..DLX	09/1999 - 09/2001	1
88502-35060	LN141,145,146,166,171,191,RZN142,147,148,168,193..LHD..(GCC,GEN)	08/1997 - 08/1998	1
88502-35060	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 08/2002	1
88521-35270	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2002 - 12/2999	1
88510 - UNIT ASSY, COOLER
88510-35790	RZN149,169..GCC;LN141,145,146,166,171,191,RZN142,144,147,148,168,193..LHD..(GCC,GEN) MAKER OPTION	08/1999 - 09/1999	1
88510-35610	LN141,145,146,155,166,171,191,RZN142,147,148,168,193..LHD	08/1997 - 08/1999	1
88510-35790	RZN149..EFI..GEN;LN141,145,146,166,171,191,RZN142,147,148,168,193..LHD..DLX..(GCC,GEN) MAKER OPTION	09/1999 - 08/2002	1
88510-35790	RZN148..GEN..CBU;LN141,145,146,166,171,191,RZN142,144,147,149,154,16#,193..LHD..MTM..(GCC,GEN) MAKER OPTION	08/2001 - 08/2002	1
88510-3D060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2002 - 12/2999	1
88510R - GROMMET (FOR COOLER UNIT)
90480-24008	LN145..DCB..GEN;LN145..LHD..IV3;LN167..SCB..ARL;LN152..DEFI..IV3;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;KZN165,LN145..(SCB,XTR)..(GEN,TH)..(CBU,IV1);LN152,RZN142,147..(CBR,DSL,EFI)..(ARL,GCC,GEN,TH);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN167,RZN154..RHD..(DCB,THDCB,THSCB,THXTR,XTR)..(DSL,EFI);KZN190,LN141,146,147,155,157,166,17#,191,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
88515 - VALVE, COOLER EXPANSION
88515-35010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88515-35010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1997 - 08/2000	1
88515-35010	LN145..DCB..IV3;LN145..LHD..IV3;KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN147..ARL,GCC,GEN;LN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA);LN167,RZN169..DCB..SR..SA;RZN149..DLX..EFI..(ARL,GEN);KZN165,LN152..(SCB,THXTR,XTR)..IV3;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,RZN169..(CBR,DSL)..(GCC,GEN)..CBU;LN155,RZN142,144,149,154..LHD..(CBR,DSL);KZN165,RZN154,194..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN190,LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	09/2000 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89113	LN145..SCB..IV3;LN141,146,166,171,191,RZN142,147..LHD	08/1997 - 08/1999	1
88539-89113	RZN148..SR;RZN169..SR..SA;RZN169..SCB..GEN;RZN142,147..GCC,GEN;LN145..RHD..GEN..CBU;RZN169..RHD..DCB..GEN;RZN148,149,168..DCB..CO;KZN165,190,LN166,171,191,RZN154,194..GEN,SA	08/2002 - 12/2999	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26022	LN145..DCB..GEN;LN145..LHD..IV3;LN167..SCB..ARL;LN152..DEFI..IV3;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;KZN165,LN145..(SCB,XTR)..(GEN,TH)..(CBU,IV1);LN152,RZN142,147..(CBR,DSL,EFI)..(ARL,GCC,GEN,TH);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN167,RZN154..RHD..(DCB,THDCB,THSCB,THXTR,XTR)..(DSL,EFI);KZN190,LN141,146,147,155,157,166,17#,191,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
88578B - PACKING, COOLING UNIT, NO.1
88578-35040	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88578-35040	RZN169..SR..SA;LN145..LHD..IV3;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN145,RZN142,147,148,169..(GCC,GEN)..CBU;KZN165,190,LN141,146,166,171,191,RZN144,154,168,19#..(CO,GCC,GEN,MA,SA)..CBU	08/2002 - 12/2999	1
88578-35040	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1997 - 08/2000	1
88578-35040	RZN169..ARL,SA;LN145..DCB..IV3;LN145..LHD..IV3;LN145..GEN..CBU;LN167..SCB..DEFI;LN155,RZN142..LHD;RZN147..ARL,GCC,GEN;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);KZN165,RZN144,149,154,169..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,152,166,17#,19#,RZN148,168,174,193..DLX	09/2000 - 09/2001	1
88578C - PACKING, COOLING UNIT, NO.2
88578-35050	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1997 - 08/2000	1
88578-35050	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88578-35050	RZN169..ARL,SA;LN145..DCB..IV3;LN145..LHD..IV3;LN145..GEN..CBU;LN167..SCB..DEFI;LN155,RZN142..LHD;RZN147..ARL,GCC,GEN;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);KZN165,RZN144,149,154,169..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,152,166,17#,19#,RZN148,168,174,193..DLX	09/2000 - 09/2001	1
88578-35050	RZN169..SR..SA;LN145..LHD..IV3;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN145,RZN142,147,148,169..(GCC,GEN)..CBU;KZN165,190,LN141,146,166,171,191,RZN144,154,168,19#..(CO,GCC,GEN,MA,SA)..CBU	08/2002 - 12/2999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-35220	RZN194..SCB;LN145..DCB..IV3;LN145..LHD..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;LN167..SCB..DSL..ARL;LN145,RZN147..(GCC,GEN)..CBU;LN167..(DCB,THDCB,THSCB)..DSL;LN155,RZN142,148,168..LHD..DLX..(GCC,GEN,TH);KZN165,LN141,146,166,171,19#,RZN193..(DSL,EFI,TDE)..(GCC,GEN,SA);KZN190,LN147,152,172,RZN149,154,169,174..DLX..(DSL,EFI,TDE)..(ARL,SA) W(HEATER)	08/1997 - 12/2999	1
88605-35300	LN145..DCB..IV3;LN145..LHD..IV3;LN145..LHD..DLX..TH;LN145,166,RZN147..DLX..(GCC,GEN)..CBU;LN141,146,155,171,191,RZN142,193..LHD	08/1997 - 12/2999	1
88605-35220	KZN190..SR;LN145..LHD..IV3;RZN149..ARL,GCC;RZN148,149..DCB..CO;LN155,RZN142,168..LHD..CBU;LN145,RZN147,148..(GCC,GEN)..CBU;KZN165,LN141,146,166,171,191,RZN144,154,169,174,19#..ARL,GCC,GEN,SA W(HEATER)	08/2001 - 12/2999	1
88605-35300	LN145..LHD..TH;LN145..LHD..IV3;LN141,145,146,166,171,191,RZN14#,154,16#,193..MTM..(GCC,GEN,MA)..CBU	08/2001 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-35040	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	02/1998 - 08/2000	1
88625-35040	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88625-16210	LN14#,16#,17#,191,RZN14#,154,16#,174,193	08/1997 - 02/1998	1
88625-35040	LN145..DCB..IV3;LN145..LHD..IV3;KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN147..ARL,GCC,GEN;LN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA);LN167,RZN169..DCB..SR..SA;RZN149..DLX..EFI..(ARL,GEN);KZN165,LN152..(SCB,THXTR,XTR)..IV3;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,RZN169..(CBR,DSL)..(GCC,GEN)..CBU;LN155,RZN142,144,149,154..LHD..(CBR,DSL);KZN165,RZN154,194..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN190,LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	09/2000 - 06/2003	1
88625-35040	RZN148..SR;RZN169..SR..SA;RZN169..SCB..GEN;RZN142,147..GCC,GEN;LN145..RHD..GEN..CBU;RZN169..RHD..DCB..GEN;RZN148,149,168..DCB..CO;KZN165,190,LN166,171,191,RZN154,194..GEN,SA	08/2002 - 06/2003	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-35060	LN145,155..LHD..TH;LN147,152,167,172,RZN149,154,169,174..ARL,SA;KZN165,190,LN140,141,145,146,166,171,19#,RZN142,147,148,168,19#..GCC,GEN,SA	08/1997 - 08/2000	1
88650-35060	LN145..DCB..IV3;LN145..LHD..IV3;LN145,155..LHD..TH;RZN154,169..ARL,SA;KZN165,LN145..(GEN,SA)..CBU;KZN165,RZN149..DLX..(EFI,TDE)..(ARL,GEN);KZN190,RZN142,147,148,168..DLX..(GCC,GEN,SA);LN140,141,146,147,152,16#,17#,19#,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI)..(ARL,GCC,GEN,SA)	08/2000 - 09/2001	1
88650-35060	LN145..LHD..IV3;RZN169..GCC,GEN;RZN149..SCB..GCC;KZN190,RZN169..SR..SA;LN155,RZN154,168..LHD..CBU;LN145,RZN147,148..(GCC,GEN,SA)..CBU;LN145,RZN148,149..LHD..DCB..(CO,GCC,TH);KZN165,LN140,141,146,166,171,191,RZN142,144,19#..ARL,GCC,GEN,SA,TH	08/2001 - 12/2999	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88726-35060	LN141,145,146,155,166,171,191,RZN14#,154,16#,193..LHD	08/1997 - 08/1999	1
88726-35100	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX;LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN)	08/1999 - 09/2001	1
88726-35100	RZN148..SR;RZN169..GCC;RZN149..SCB..GCC;RZN169..LHD..SCB..GEN;LN145,RZN148,149,168..LHD..DCB..(CO,GCC,TH);LN141,146,155,166,171,191,RZN142,144,147,154..LHD	08/2001 - 08/2002	1
88891S - COVER, COOLER, NO.1
88891-35010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2002 - 06/2005	1
88891-35010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1997 - 08/2000	1
88891-35010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88891-35010	RZN169..ARL,SA;LN145..DCB..IV3;LN145..LHD..IV3;LN145..GEN..CBU;LN167..SCB..DEFI;LN155,RZN142..LHD;RZN147..ARL,GCC,GEN;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);KZN165,RZN144,149,154,169..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,152,166,17#,19#,RZN148,168,174,193..DLX	09/2000 - 09/2001	1
88894G - CONNECTOR, DRAIN HOSE
88894-35060	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX..(GCC,GEN);LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN)	08/1997 - 12/2999	1
88894-35060	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
Common parts
16483-46040
88519-87301
88569-87207
88578-30360
88714-87524
90099-00968
90159-60195
90183-05094
93568-55016

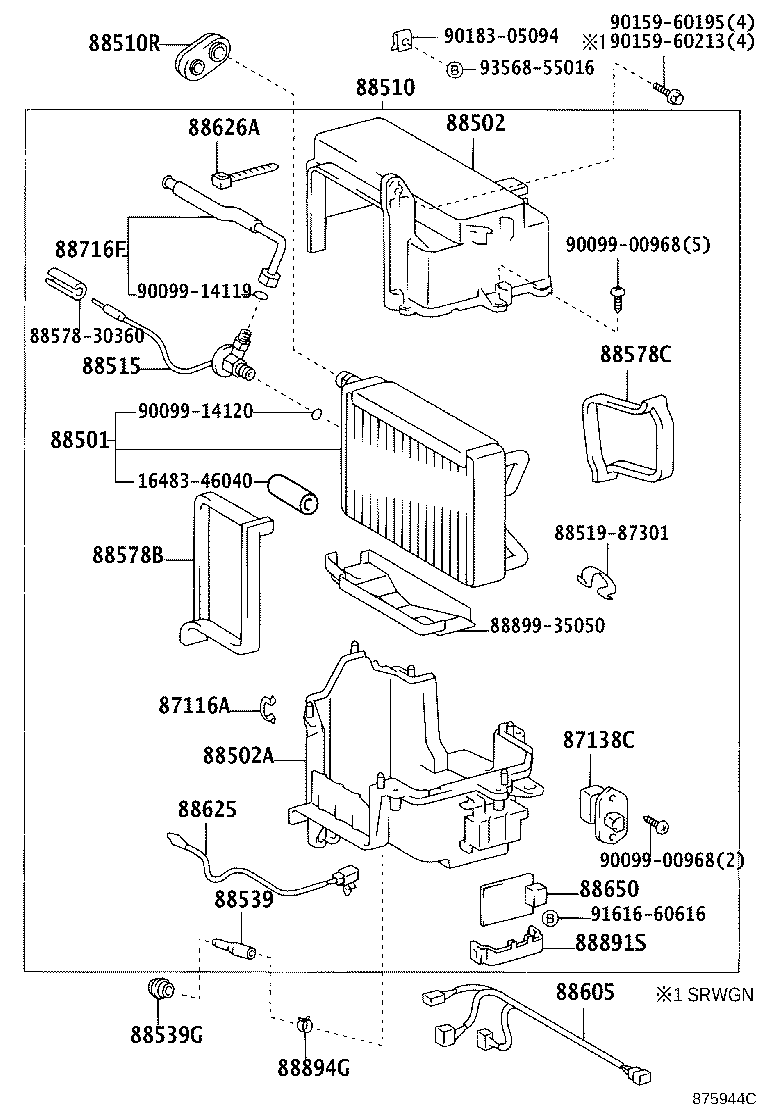

ILLUST NO. 1 OF 2(0208- )LHD

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	LN167,192,RZN169,194..DCB,SCB;LN141,145,146,147,166,17#,191,RZN14#,154,168,174,193..ARL,GCC,GEN	08/1997 - 08/1998	1
87116-14010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
87116-14010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1998 - 08/2000	1
87116-14010	RZN169..ARL,SA;LN145..DCB..IV3;LN145..LHD..IV3;LN145..GEN..CBU;LN167..SCB..DEFI;LN155,RZN142..LHD;RZN147..ARL,GCC,GEN;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);KZN165,RZN144,149,154,169..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,152,166,17#,19#,RZN148,168,174,193..DLX	09/2000 - 09/2001	1
87116-14010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2002 - 06/2005	1
87138C - RESISTOR, BLOWER
87138-35080	RZN169..SA;LN167..SR..SA;LN145,155,166,RZN147,169..LHD;KZN165,190,LN141,146,171,19#,RZN142,144,148,149,154,168,19#..(GCC,GEN,SA)..CBU	08/1999 - 08/2000	1
87138-35080	RZN169..SA;LN167..SR..SA;LN145,155,166,RZN142,147,169..LHD;KZN165,190,LN141,146,171,19#,RZN144,148,149,154,168,19#..(DCB,SCB,XTR)..MTM..(GCC,GEN,SA)..CBU	08/2000 - 08/2001	1
87138-35080	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2002 - 06/2005	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35070	RZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1997 - 08/2002	1
88501-35070	RZN148..SR;LN166..LHD..GEN;RZN169..LHD..SCB..GEN;LN155,171,191,RZN142,147,154..LHD;LN145,RZN148,149,168..LHD..DCB..(CO,TH)	08/2001 - 08/2002	1
88501-35110	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2002 - 12/2999	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-35050	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX;LN141,145,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)	08/1998 - 09/2001	1
88502-35050	LN141,145,146,166,171,191,RZN14#,154,16#,193..LHD..(GCC,GEN)	08/1997 - 08/1998	1
88502-35050	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 08/2002	1
88521-35240	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2002 - 12/2999	1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-35060	RZN169..GCC;LN141,145,146,155,166,171,191,RZN142,147,148,168,193..LHD	08/1999 - 09/1999	1
88502-35060	LN141,145,146,155,166,171,191,RZN142,147,148,168,193..LHD	08/1998 - 08/1999	1
88502-35060	RZN149..EFI..GEN;LN141,145,146,155,166,171,191,RZN142,147,148,168,193..LHD..DLX	09/1999 - 09/2001	1
88502-35060	LN141,145,146,166,171,191,RZN142,147,148,168,193..LHD..(GCC,GEN)	08/1997 - 08/1998	1
88502-35060	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 08/2002	1
88521-35270	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2002 - 12/2999	1
88510 - UNIT ASSY, COOLER
88510-35790	RZN149,169..GCC;LN141,145,146,166,171,191,RZN142,144,147,148,168,193..LHD..(GCC,GEN) MAKER OPTION	08/1999 - 09/1999	1
88510-35610	LN141,145,146,155,166,171,191,RZN142,147,148,168,193..LHD	08/1997 - 08/1999	1
88510-35790	RZN149..EFI..GEN;LN141,145,146,166,171,191,RZN142,147,148,168,193..LHD..DLX..(GCC,GEN) MAKER OPTION	09/1999 - 08/2002	1
88510-35790	RZN148..GEN..CBU;LN141,145,146,166,171,191,RZN142,144,147,149,154,16#,193..LHD..MTM..(GCC,GEN) MAKER OPTION	08/2001 - 08/2002	1
88510-3D060	RZN168..CBU;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,145,146,155,166,171,191,RZN142,144,147,154,169,193..LHD	08/2002 - 12/2999	1
88510R - GROMMET (FOR COOLER UNIT)
90480-24008	LN145..DCB..GEN;LN145..LHD..IV3;LN167..SCB..ARL;LN152..DEFI..IV3;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;KZN165,LN145..(SCB,XTR)..(GEN,TH)..(CBU,IV1);LN152,RZN142,147..(CBR,DSL,EFI)..(ARL,GCC,GEN,TH);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN167,RZN154..RHD..(DCB,THDCB,THSCB,THXTR,XTR)..(DSL,EFI);KZN190,LN141,146,147,155,157,166,17#,191,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
88515 - VALVE, COOLER EXPANSION
88515-35010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88515-35010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1997 - 08/2000	1
88515-35010	LN145..DCB..IV3;LN145..LHD..IV3;KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN147..ARL,GCC,GEN;LN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA);LN167,RZN169..DCB..SR..SA;RZN149..DLX..EFI..(ARL,GEN);KZN165,LN152..(SCB,THXTR,XTR)..IV3;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,RZN169..(CBR,DSL)..(GCC,GEN)..CBU;LN155,RZN142,144,149,154..LHD..(CBR,DSL);KZN165,RZN154,194..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN190,LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	09/2000 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89113	LN145..SCB..IV3;LN141,146,166,171,191,RZN142,147..LHD	08/1997 - 08/1999	1
88539-89113	RZN148..SR;RZN169..SR..SA;RZN169..SCB..GEN;RZN142,147..GCC,GEN;LN145..RHD..GEN..CBU;RZN169..RHD..DCB..GEN;RZN148,149,168..DCB..CO;KZN165,190,LN166,171,191,RZN154,194..GEN,SA	08/2002 - 12/2999	1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26022	LN145..DCB..GEN;LN145..LHD..IV3;LN167..SCB..ARL;LN152..DEFI..IV3;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);LN167..SCB..DEFI..SA;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN150,RZN194..(DCB,SCB,XTR)..SR;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN167..(DCB,THDCB,THSCB)..DLX..DEFI..ARL;KZN165,LN145..(SCB,XTR)..(GEN,TH)..(CBU,IV1);LN152,RZN142,147..(CBR,DSL,EFI)..(ARL,GCC,GEN,TH);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN167,RZN154..RHD..(DCB,THDCB,THSCB,THXTR,XTR)..(DSL,EFI);KZN190,LN141,146,147,155,157,166,17#,191,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 03/2006	1
88578B - PACKING, COOLING UNIT, NO.1
88578-35040	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88578-35040	RZN169..SR..SA;LN145..LHD..IV3;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN145,RZN142,147,148,169..(GCC,GEN)..CBU;KZN165,190,LN141,146,166,171,191,RZN144,154,168,19#..(CO,GCC,GEN,MA,SA)..CBU	08/2002 - 12/2999	1
88578-35040	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1997 - 08/2000	1
88578-35040	RZN169..ARL,SA;LN145..DCB..IV3;LN145..LHD..IV3;LN145..GEN..CBU;LN167..SCB..DEFI;LN155,RZN142..LHD;RZN147..ARL,GCC,GEN;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);KZN165,RZN144,149,154,169..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,152,166,17#,19#,RZN148,168,174,193..DLX	09/2000 - 09/2001	1
88578C - PACKING, COOLING UNIT, NO.2
88578-35050	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1997 - 08/2000	1
88578-35050	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88578-35050	RZN169..ARL,SA;LN145..DCB..IV3;LN145..LHD..IV3;LN145..GEN..CBU;LN167..SCB..DEFI;LN155,RZN142..LHD;RZN147..ARL,GCC,GEN;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);KZN165,RZN144,149,154,169..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,152,166,17#,19#,RZN148,168,174,193..DLX	09/2000 - 09/2001	1
88578-35050	RZN169..SR..SA;LN145..LHD..IV3;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN145,RZN142,147,148,169..(GCC,GEN)..CBU;KZN165,190,LN141,146,166,171,191,RZN144,154,168,19#..(CO,GCC,GEN,MA,SA)..CBU	08/2002 - 12/2999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-35220	RZN194..SCB;LN145..DCB..IV3;LN145..LHD..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;LN167..SCB..DSL..ARL;LN145,RZN147..(GCC,GEN)..CBU;LN167..(DCB,THDCB,THSCB)..DSL;LN155,RZN142,148,168..LHD..DLX..(GCC,GEN,TH);KZN165,LN141,146,166,171,19#,RZN193..(DSL,EFI,TDE)..(GCC,GEN,SA);KZN190,LN147,152,172,RZN149,154,169,174..DLX..(DSL,EFI,TDE)..(ARL,SA) W(HEATER)	08/1997 - 12/2999	1
88605-35300	LN145..DCB..IV3;LN145..LHD..IV3;LN145..LHD..DLX..TH;LN145,166,RZN147..DLX..(GCC,GEN)..CBU;LN141,146,155,171,191,RZN142,193..LHD	08/1997 - 12/2999	1
88605-35220	KZN190..SR;LN145..LHD..IV3;RZN149..ARL,GCC;RZN148,149..DCB..CO;LN155,RZN142,168..LHD..CBU;LN145,RZN147,148..(GCC,GEN)..CBU;KZN165,LN141,146,166,171,191,RZN144,154,169,174,19#..ARL,GCC,GEN,SA W(HEATER)	08/2001 - 12/2999	1
88605-35300	LN145..LHD..TH;LN145..LHD..IV3;LN141,145,146,166,171,191,RZN14#,154,16#,193..MTM..(GCC,GEN,MA)..CBU	08/2001 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-35040	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	02/1998 - 08/2000	1
88625-35040	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88625-16210	LN14#,16#,17#,191,RZN14#,154,16#,174,193	08/1997 - 02/1998	1
88625-35040	LN145..DCB..IV3;LN145..LHD..IV3;KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN147..ARL,GCC,GEN;LN167..DCB..DLX..ARL;RZN169..DLX..(ARL,SA);LN167,RZN169..DCB..SR..SA;RZN149..DLX..EFI..(ARL,GEN);KZN165,LN152..(SCB,THXTR,XTR)..IV3;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,RZN169..(CBR,DSL)..(GCC,GEN)..CBU;LN155,RZN142,144,149,154..LHD..(CBR,DSL);KZN165,RZN154,194..(DCB,SCB,THXTR,XTR)..(ARL,SA)..CBU;KZN190,LN141,146,147,166,17#,19#,RZN148,168,174,193..DLX..(ARL,GCC,GEN,SA)	09/2000 - 06/2003	1
88625-35040	RZN148..SR;RZN169..SR..SA;RZN169..SCB..GEN;RZN142,147..GCC,GEN;LN145..RHD..GEN..CBU;RZN169..RHD..DCB..GEN;RZN148,149,168..DCB..CO;KZN165,190,LN166,171,191,RZN154,194..GEN,SA	08/2002 - 06/2003	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-35060	LN145,155..LHD..TH;LN147,152,167,172,RZN149,154,169,174..ARL,SA;KZN165,190,LN140,141,145,146,166,171,19#,RZN142,147,148,168,19#..GCC,GEN,SA	08/1997 - 08/2000	1
88650-35060	LN145..DCB..IV3;LN145..LHD..IV3;LN145,155..LHD..TH;RZN154,169..ARL,SA;KZN165,LN145..(GEN,SA)..CBU;KZN165,RZN149..DLX..(EFI,TDE)..(ARL,GEN);KZN190,RZN142,147,148,168..DLX..(GCC,GEN,SA);LN140,141,146,147,152,16#,17#,19#,RZN174,19#..(DCB,SCB,THDCB,THSCB,THXTR,XTR)..(DEFI,DSL,EFI)..(ARL,GCC,GEN,SA)	08/2000 - 09/2001	1
88650-35060	LN145..LHD..IV3;RZN169..GCC,GEN;RZN149..SCB..GCC;KZN190,RZN169..SR..SA;LN155,RZN154,168..LHD..CBU;LN145,RZN147,148..(GCC,GEN,SA)..CBU;LN145,RZN148,149..LHD..DCB..(CO,GCC,TH);KZN165,LN140,141,146,166,171,191,RZN142,144,19#..ARL,GCC,GEN,SA,TH	08/2001 - 12/2999	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88726-35060	LN141,145,146,155,166,171,191,RZN14#,154,16#,193..LHD	08/1997 - 08/1999	1
88726-35100	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX;LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN)	08/1999 - 09/2001	1
88726-35100	RZN148..SR;RZN169..GCC;RZN149..SCB..GCC;RZN169..LHD..SCB..GEN;LN145,RZN148,149,168..LHD..DCB..(CO,GCC,TH);LN141,146,155,166,171,191,RZN142,144,147,154..LHD	08/2001 - 08/2002	1
88891S - COVER, COOLER, NO.1
88891-35010	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2002 - 06/2005	1
88891-35010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,19#..ARL,GCC,GEN,SA	08/1997 - 08/2000	1
88891-35010	LN145,155..LHD..TH;LN145,RZN147..ARL,GCC,GEN;KZN165,RZN194..(DCB,SCB,THDCB,THSCB)..SR;KZN190,LN141,146,147,152,16#,17#,19#,RZN142,144,148,149,154,16#,174,193..ARL,GCC,GEN,SA	08/2000 - 09/2000	1
88891-35010	RZN169..ARL,SA;LN145..DCB..IV3;LN145..LHD..IV3;LN145..GEN..CBU;LN167..SCB..DEFI;LN155,RZN142..LHD;RZN147..ARL,GCC,GEN;LN167..(DCB,THDCB,THSCB)..(ARL,SA);LN145,RZN154..(DCB,THXTR,XTR)..(ARL,TH);RZN149,194..(DCB,SCB,THDCB,THSCB)..EFI..(ARL,GEN,SA);KZN165,RZN144,149,154,169..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN141,146,147,152,166,17#,19#,RZN148,168,174,193..DLX	09/2000 - 09/2001	1
88894G - CONNECTOR, DRAIN HOSE
88894-35060	RZN149..EFI..GEN;LN166,RZN148,168,193..LHD..DLX..(GCC,GEN);LN141,145,146,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)..(GCC,GEN)	08/1997 - 12/2999	1
88894-35060	LN145..LHD..GEN;RZN148..GEN..CBU;RZN149..SCB..GCC;RZN148,149..DCB..(CO,GCC);LN141,146,166,171,191,RZN142,144,147,154,16#,193..LHD..CBU	08/2001 - 12/2999	1
Common parts
16483-46040
88519-87301
88578-30360
88899-35050
90099-00968
90099-14119
90099-14120
90159-60195
90159-60213
90183-05094
91616-60616
93568-55016

LN191L-PRMDS (1997)

ILLUST NO. 4 OF 4(9708- )

ILLUST NO. 1 OF 4(9708-0404)LHD

ILLUST NO. 1 OF 2(0208- )LHD
