Toyota Hilux LN191 REAR DOOR PANEL & GLASS

Manufacturers Home
Toyota
GR
HILUX
LN191L-PRMDS (1997)
6755 - REAR DOOR PANEL & GLASS

LN191L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

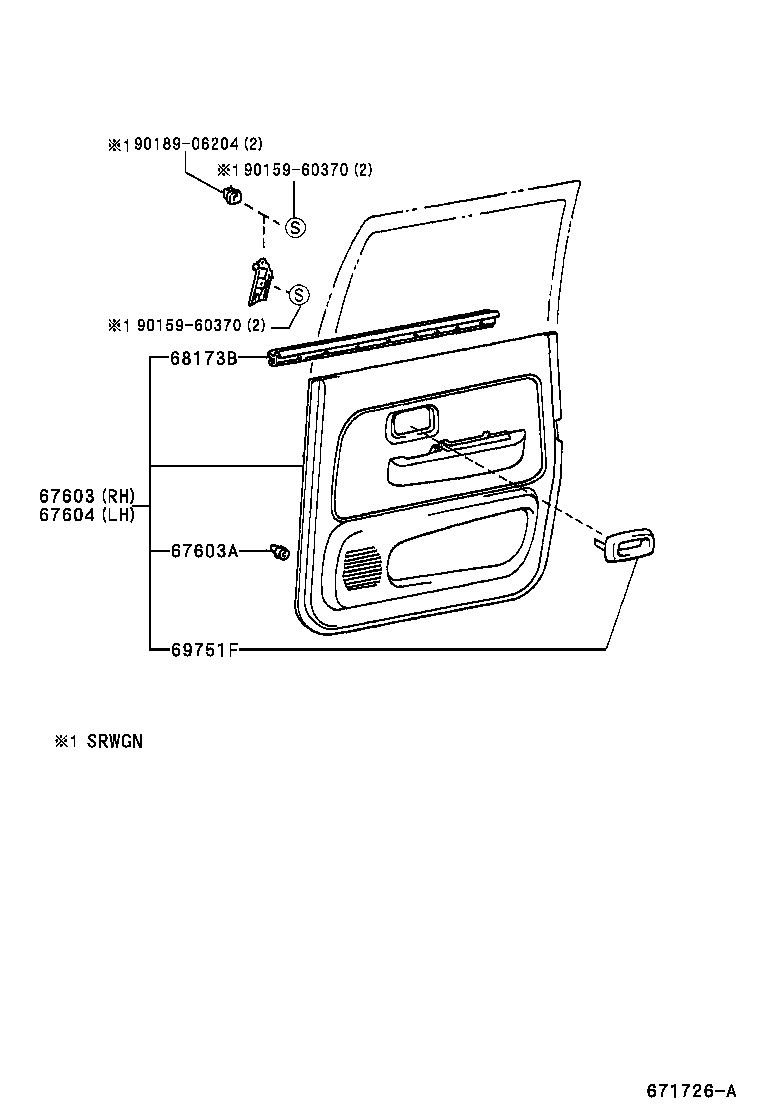

ILLUST NO. 1 OF 2(9708- )DCB,SADCB,SRWGN,THDCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-35500B0	RZN149..DLX..GCC;LN166,RZN169..LHD..DCB..GEN;LN145,146,191,RZN147,168,193..LHD..DCB W(POWER WINDOW),MD. MOON MIST,TRIM1#	08/1997 - 05/1998	1
67630-35460B0	RZN149..ATM..ARL..CBU;KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,193..(DCB,THDCB)..MTM..DLX MD. MOON MIST,TRIM1#	08/1997 - 08/2001	1
67630-35500B0	RZN147..LHD..DCB;RZN149..DLX..GCC;LN146,19#,RZN148,168,193..DCB;LN145,166,RZN169..LHD..DCB..(GEN,TH) W(POWER WINDOW),MD. MOON MIST,TRIM1#	05/1998 - 08/1999	1
67630-35500B0	RZN147..LHD..DCB;RZN149..DLX..GCC;RZN169..DCB..GEN;LN145,166..LHD..DCB..(GEN,TH);KZN190,LN146,19#,RZN148,168,193..DCB W(POWER WINDOW),MD. MOON MIST,TRIM1#	08/1999 - 08/2001	1
67630-35500B6	RZN169..DCB..DLX..GEN;LN145,166,191,RZN147,148,168,193..LHD..DCB..DLX..GEN W(POWER WINDOW),MD.MOON MIST,TRIM1#	08/2001 - 06/2005	1
67630-35460B7	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN MD.MOON MIST,TRIM1#	08/2001 - 06/2005	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-16120	RZN149..ATM..ARL..CBU;LN167..(DCB,THDCB)..(ARL,SA);KZN165,190,LN145,146,147,166,19#,RZN147,148,149,16#,19#..(DCB,SADCB,THDCB)..MTM LIGHT GRAY	08/1997 - 08/2001	14
67771-16120	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	14
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-35500B0	RZN149..DLX..GCC;LN166,RZN169..LHD..DCB..GEN;LN145,146,191,RZN147,168,193..LHD..DCB W(POWER WINDOW),MD. MOON MIST,TRIM1#	08/1997 - 05/1998	1
67640-35500B0	RZN147..LHD..DCB;RZN149..DLX..GCC;LN146,19#,RZN148,168,193..DCB;LN145,166,RZN169..LHD..DCB..(GEN,TH) W(POWER WINDOW),MD. MOON MIST,TRIM1#	05/1998 - 08/1999	1
67640-35460B0	RZN149..ATM..ARL..CBU;KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,193..(DCB,THDCB)..MTM..DLX MD. MOON MIST,TRIM1#	08/1997 - 08/2001	1
67640-35500B0	RZN147..LHD..DCB;RZN149..DLX..GCC;RZN169..DCB..GEN;LN145,166..LHD..DCB..(GEN,TH);KZN190,LN146,19#,RZN148,168,193..DCB W(POWER WINDOW),MD. MOON MIST,TRIM1#	08/1999 - 08/2001	1
67640-35500B6	RZN169..DCB..DLX..GEN;LN145,166,191,RZN147,148,168,193..LHD..DCB..DLX..GEN W(POWER WINDOW),MD.MOON MIST,TRIM1#	08/2001 - 06/2005	1
67640-35460B7	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN MD.MOON MIST,TRIM1#	08/2001 - 06/2005	1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-35020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
68173-35020	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 07/2003	1
68173-35021	LN145,166,191,RZN147,148,16#,193..DCB..GEN	07/2003 - 06/2005	1
Common parts
90159-60370
90189-06204

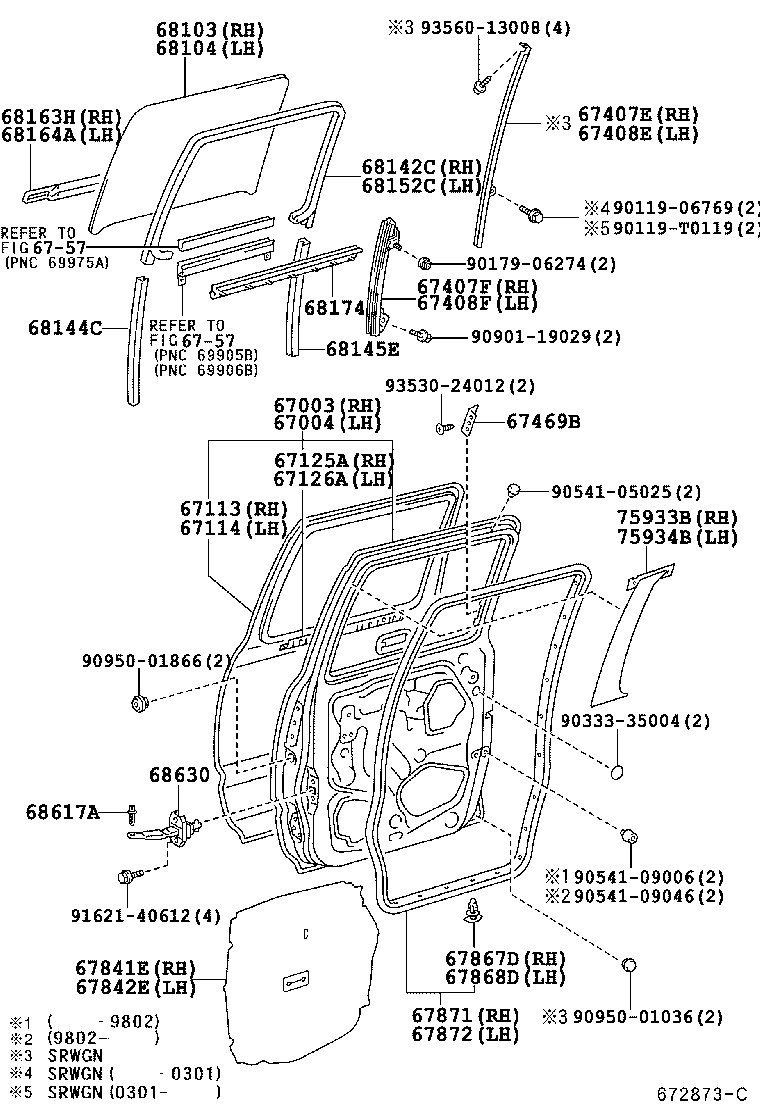

ILLUST NO. 2 OF 2(9708- )DCB,SADCB,SRWGN,THDCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-35070	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67003-35070	KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-35070	KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
67004-35070	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67113 - PANEL, REAR DOOR, OUTER RH
67113-35020	KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
67113-35020	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67114 - PANEL, REAR DOOR, OUTER LH
67114-35020	KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
67114-35020	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67125A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, RH
67125-35020	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67125-35020	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
67126A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, LH
67125-35020	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67125-35020	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	1
67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67407-35030	RZN169..DCB..SA;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167,RZN149..DCB..(GEN,TH);LN167,RZN169..(DCB,THDCB)..(CBR,DSL)..(ARL,GEN,SA);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN145,147,RZN147,148,168..(DCB,THDCB)..DLX..(ARL,GEN,SA);KZN165,LN166,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)..CBU	08/1997 - 12/2999	1
67407-35030	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-35030	RZN169..DCB..SA;KZN165..THDCB..SR;LN145..LHD..DLX..TH;LN167,RZN149..DCB..(GEN,TH);LN167,RZN169..(DCB,THDCB)..(CBR,DSL)..(ARL,GEN,SA);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN190,LN145,147,RZN147,148,168..(DCB,THDCB)..DLX..(ARL,GEN,SA);KZN165,LN166,19#,RZN19#..(DCB,SADCB)..(DSL,EFI,TDE)..(ARL,GEN,SA)..CBU	08/1997 - 12/2999	1
67408-35030	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67469B - BRACKET, REAR DOOR WINDOW FRAME, LOWER
67469-35020	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
67469-35020	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-35070	RZN149..DCB..SR;RZN147..LHD..DCB;RZN149..DCB..DLX..(ARL,GCC);LN145,166,RZN169..LHD..DCB..GEN;LN146,147,167,191,RZN16#,193..DCB..(DSL,EFI) W(POWER WINDOW)	08/1997 - 05/1998	1
67841-35070	RZN147..LHD..DCB;RZN149..DLX..CBR..GCC;RZN169..DCB..CBR..GEN;RZN149,169..(DCB,THDCB)..(ARL,SA);KZN165,RZN149..(DCB,THDCB)..SR..(CBR,TDE);LN145,166,RZN148,168..LHD..DCB..DLX..(GEN,TH);KZN190,LN146,147,167,19#,RZN19#..(DCB,THDCB)..(ARL,GCC,GEN,SA) W(POWER WINDOW)	08/1999 - 09/2001	1
67841-35070	RZN149..DCB..SR;RZN147..LHD..DCB;RZN149..(DCB,THDCB)..DLX..(ARL,GCC);LN145,166,RZN169..LHD..DCB..(GEN,TH);LN146,147,167,19#,RZN148,16#,193..(DCB,THDCB)..(DSL,EFI) W(POWER WINDOW)	05/1998 - 08/1999	1
67841-35080	RZN169..SR..SA;RZN149,169..DCB..CBR..GEN;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN147,148,168..(DCB,THDCB)..DLX..(ARL,GEN,SA);KZN190,LN145,16#,19#,RZN19#..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA) W(POWER WINDOW & SPEAKER)	05/1998 - 10/2001	1
67841-35060	RZN169..SR..SA;LN145..LHD..DLX..TH;KZN165,LN166,RZN148,168..DCB..DLX;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN165,190,LN145,146,19#,RZN147,19#..DCB..(GCC,GEN,SA);LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN)	08/1997 - 03/2002	1
67841-35060	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN	08/2001 - 06/2005	1
67841-35070	RZN169..DCB..GEN;LN145,166,191,RZN147,148,168,193..LHD..DCB..GEN W(POWER WINDOW)	08/2001 - 06/2005	1
67841-35080	LN145,166,191,RZN147,148,16#,193..DCB..GEN W(POWER WINDOW & SPEAKER)	08/2001 - 06/2005	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-35030	RZN149..DCB..SR;RZN147..LHD..DCB;RZN149..(DCB,THDCB)..DLX..(ARL,GCC);LN145,166,RZN169..LHD..DCB..(GEN,TH);LN146,147,167,19#,RZN148,16#,193..(DCB,THDCB)..(DSL,EFI) W(POWER WINDOW)	05/1998 - 08/1999	1
67842-35040	RZN169..SR..SA;RZN149,169..DCB..CBR..GEN;KZN165..(DCB,THDCB)..SR..(ARL,SA);LN167,RZN149,169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;LN147,RZN147,148,168..(DCB,THDCB)..DLX..(ARL,GEN,SA);KZN190,LN145,16#,19#,RZN19#..(DCB,SADCB,THDCB)..(DSL,EFI,TDE)..(ARL,GEN,SA) W(POWER WINDOW & SPEAKER)	05/1998 - 10/2001	1
67842-35030	RZN147..LHD..DCB;RZN149..DLX..CBR..GCC;RZN169..DCB..CBR..GEN;RZN149,169..(DCB,THDCB)..(ARL,SA);KZN165,RZN149..(DCB,THDCB)..SR..(CBR,TDE);LN145,166,RZN148,168..LHD..DCB..DLX..(GEN,TH);KZN190,LN146,147,167,19#,RZN19#..(DCB,THDCB)..(ARL,GCC,GEN,SA) W(POWER WINDOW)	08/1999 - 09/2001	1
67841-35060	RZN169..SR..SA;LN145..LHD..DLX..TH;KZN165,LN166,RZN148,168..DCB..DLX;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL;KZN165,190,LN145,146,19#,RZN147,19#..DCB..(GCC,GEN,SA);LN147,RZN149..(DCB,THDCB)..DLX..(DEFI,DSL,EFI)..(ARL,GEN)	08/1997 - 03/2002	1
67842-35030	RZN149..DCB..SR;RZN147..LHD..DCB;RZN149..DCB..DLX..(ARL,GCC);LN145,166,RZN169..LHD..DCB..GEN;LN146,147,167,191,RZN16#,193..DCB..(DSL,EFI) W(POWER WINDOW)	08/1997 - 05/1998	1
67842-35030	RZN169..DCB..GEN;LN145,166,191,RZN147,148,168,193..LHD..DCB..GEN W(POWER WINDOW)	08/2001 - 06/2005	1
67841-35060	LN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN	08/2001 - 06/2005	1
67842-35040	LN145,166,191,RZN147,148,16#,193..DCB..GEN W(POWER WINDOW & SPEAKER)	08/2001 - 06/2005	1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-89103	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	34
67867-89103	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	34
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67868-89101	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	34
67868-89101	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	34
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-35040	LN145,146,147,16#,191,RZN147,148,149,16#,193..DCB	08/1997 - 05/1998	1
67871-35041	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	05/1998 - 08/2001	1
67871-35050	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-35040	LN145,146,147,16#,191,RZN147,148,149,16#,193..DCB	08/1997 - 05/1998	1
67872-35041	KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,19#..DCB,SADCB,THDCB	05/1998 - 08/2001	1
67872-35050	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-35010	RZN169..DCB..SA;RZN149,169..DCB..CBR;RZN169..DCB..DLX..ARL;LN167,RZN149..DCB..DLX..(DEFI,EFI)..(ARL,GEN);KZN190,LN145,147,166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA);KZN165,LN146,167,19#,RZN147,19#..(DCB,SADCB)..(CBR,DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU *TT,T=3.5,GREEN	08/1997 - 12/2999	1
68113-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN *TT,T=3.5,GREEN	08/2001 - 06/2005	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-35010	RZN169..DCB..SA;RZN149,169..DCB..CBR;RZN169..DCB..DLX..ARL;LN167,RZN149..DCB..DLX..(DEFI,EFI)..(ARL,GEN);KZN190,LN145,147,166,RZN148,168..DCB..DLX..(ARL,GCC,GEN,SA);KZN165,LN146,167,19#,RZN147,19#..(DCB,SADCB)..(CBR,DSL,EFI,TDE)..(ARL,GCC,GEN,SA)..CBU *TT,T=3.5,GREEN	08/1997 - 12/2999	1
68114-35010	LN145,166,191,RZN147,148,16#,193..DCB..GEN *TT,T=3.5,GREEN	08/2001 - 06/2005	1
68142C - RUN, REAR DOOR GLASS, RH
68142-35021	LN145,166,191,RZN147,148,16#,193..DCB..GEN	07/2003 - 06/2005	1
68142-35020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
68142-35020	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 07/2003	1
68144C - RUN, REAR DOOR GLASS, LOWER FRONT
68144-35010	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN) RH	08/1997 - 08/2001	1
68153-35010	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN) LH	08/1997 - 08/2001	1
68144-35010	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA) RH	08/2001 - 07/2003	1
68153-35010	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA) LH	08/2001 - 07/2003	1
68153-35011	LN145,166,191,RZN147,148,16#,193..DCB..GEN LH	07/2003 - 06/2005	1
68144-35011	LN145,166,191,RZN147,148,16#,193..DCB..GEN RH	07/2003 - 06/2005	1
68145E - RUN, REAR DOOR GLASS, LOWER REAR
68145-35011	LN145,166,191,RZN147,148,16#,193..DCB..GEN	07/2003 - 06/2005	2
68145-35010	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	2
68145-35010	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 07/2003	2
68152C - RUN, REAR DOOR GLASS, LH
68152-35020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
68152-35020	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 07/2003	1
68152-35021	LN145,166,191,RZN147,148,16#,193..DCB..GEN	07/2003 - 06/2005	1
68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68163-35020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
68163-35020	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 04/2004	1
68163-35021	LN145,166,191,RZN147,148,16#,193..DCB..GEN	04/2004 - 06/2005	1
68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68164-35020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
68164-35020	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 04/2004	1
68164-35021	LN145,166,191,RZN147,148,16#,193..DCB..GEN	04/2004 - 06/2005	1
68174 - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68173-35020	LN145..DCB..IV3;RZN149..DCB..GCC;RZN147,169..DCB..(GCC,GEN);RZN149..DCB..DLX..CBR..GEN;LN145,146,166,191,RZN193..LHD..DCB..(GCC,GEN)	08/1997 - 08/2001	1
68173-35021	LN145,166,191,RZN147,148,16#,193..DCB..GEN	07/2003 - 06/2005	1
68173-35020	KZN190..DCB..SR;KZN165..DCB..(ARL,SA);LN167..(DCB,THDCB)..DLX;RZN149..(DCB,THDCB)..(ARL,CO,GCC);LN145,RZN169..DCB..(GCC,GEN,SA,TH);KDN165,190,LN146,147,166,191,RZN147,148,168,19#,VZN167..(DCB,THDCB)..(ARL,CO,GCC,GEN,MA,SA)	08/2001 - 07/2003	1
68617A - PIN, REAR DOOR CHECK
68617-20011	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	02/1999 - 12/2999	2
68617-20011	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
68617-12030	LN145,146,147,16#,19#,RZN147,148,149,16#,193..DCB	08/1997 - 02/1999	2
68630 - CHECK ASSY, REAR DOOR
68630-35050	KZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)	08/1997 - 12/2999	2
68630-35050	LN145,166,191,RZN147,148,16#,193..DCB..GEN	08/2001 - 06/2005	2
Common parts
90119-06769
90119-T0119
90179-06274
90333-35004
90541-05025
90541-09006
90541-09046
90901-19029
90950-01036
90950-01866
91621-40612
93530-24012
93560-13008
