LN191L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )KDN190,KZN190,LN19#,RZN19#

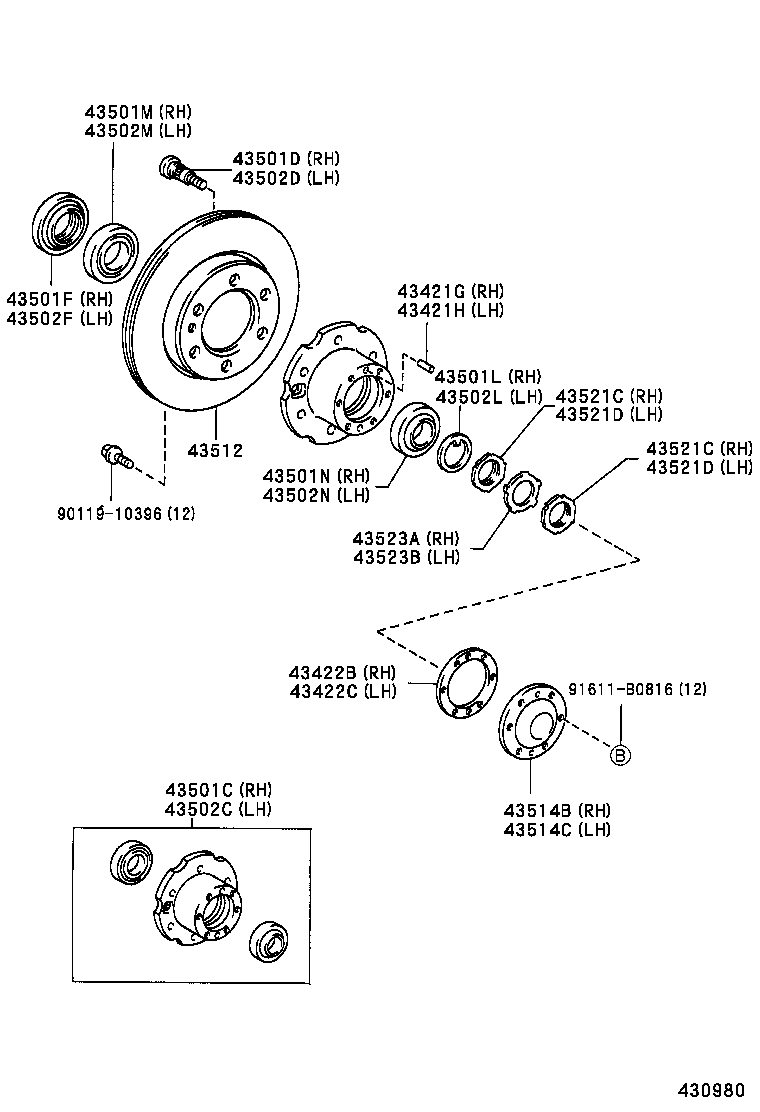

Click highlighted areas on diagram

diagram 43421G 43421H 43422B 43422C 43501C 43501D 43501F 43501L 43501M 43501N 43502C 43502D 43502F 43502L 43502M 43502N 43512 43514B 43514C 43521C 43521C 43521D 43521D 43523A 43523B 9011910396 91611B0816
Part # Description Qty Price
43421G - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
90250-07057

KZN190..SR;KDN165,190,KZN165,LN16#,17#,19#,RZN16#,174,19#,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
90250-07057

LN191,RZN193;LN166,RZN169..GCC

 2
43421H - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
90250-07057

LN191,RZN193;LN166,RZN169..GCC

 2
90250-07057

KZN190..SR;KDN165,190,KZN165,LN16#,17#,19#,RZN16#,174,19#,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
43422B - GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH
43422-60010

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43422-60010

KDN190;KZN190..SR;KDN165,KZN165,LN16#,17#,19#,RZN16#,174,19#,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
43422C - GASKET, FRONT AXLE OUTER SHAFT FLANGE, LH
43422-60010

KZN190..SR;KDN165,190,KZN165,LN16#,17#,19#,RZN16#,174,19#,VZN167,172..(DCB,SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
43422-60010

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43511-39015

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

LN191,RZN193;LN166,RZN169..GCC

 6
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-66003

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-42030

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90080-36064

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
90080-36064

KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90080-36067

KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
90080-36067

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43511-39015

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

LN191,RZN193;LN166,RZN169..GCC

 6
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-66003

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-42030

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90080-36064

KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
90080-36064

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90080-36067

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
90080-36067

KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
43512 - DISC, FRONT
43512-35190

KZN190..SR;LN167,192..(DCB,SCB)..(ARL,SA);KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172..DCB,SCB,SRWGN,XTR

 2
43512-35190

KZN165..XTR;LN192,RZN194;KZN165..SCB..DLX;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN190,LN166,17#,191,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)

 2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-35020

LN191,RZN193

 1
43514-35020

LN192..SA;KZN190..SR;KDN190,LN191,RZN19#

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-35020

LN191,RZN193

 1
43514-35020

LN192..SA;KZN190..SR;KDN190,LN191,RZN19#

 1
43521C - NUT, FRONT WHEEL ADJUSTING, RH
43521-60011

RZN169..CBR;LN166,171,191,RZN193..LHD

 2
43521-60011

KZN190..SR;KDN190,RZN174;LN167..THDCB..SR;LN167..THSCB..CBU;LN167..(DCB,SCB)..(ARL,SA);KDN165,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 2
43521C - NUT, FRONT WHEEL ADJUSTING, RH
43521-60011

RZN169..CBR;LN166,171,191,RZN193..LHD

 2
43521-60011

KZN190..SR;KDN190,RZN174;LN167..THDCB..SR;LN167..THSCB..CBU;LN167..(DCB,SCB)..(ARL,SA);KDN165,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 2
43521D - NUT, FRONT WHEEL ADJUSTING, LH
43521-60011

RZN169..CBR;LN166,171,191,RZN193..LHD

 2
43521-60011

KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 2
43521D - NUT, FRONT WHEEL ADJUSTING, LH
43521-60011

RZN169..CBR;LN166,171,191,RZN193..LHD

 2
43521-60011

KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 2
43523A - WASHER, FRONT WHEEL ADJUSTING LOCK, RH
90215-42025

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
90215-42025

KZN190..SR;KDN190,RZN174;LN167..THDCB..SR;LN167..THSCB..CBU;LN167..(DCB,SCB)..(ARL,SA);KDN165,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
43523B - WASHER, FRONT WHEEL ADJUSTING LOCK, LH
90215-42025

RZN169..CBR;LN166,171,191,RZN193..LHD

 1
90215-42025

KZN190..SR;LN167..THDCB..SR;LN167..THSCB..CBU;LN167,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,SA);KDN165,190,KZN165,LN166,17#,19#,RZN16#,19#,VZN167,172..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,MA,SA)

 1
Common parts
90119-10396
91611-B0816
