Toyota Hilux LN191 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
HILUX
LN191L-PRMDS (1997)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

LN191L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

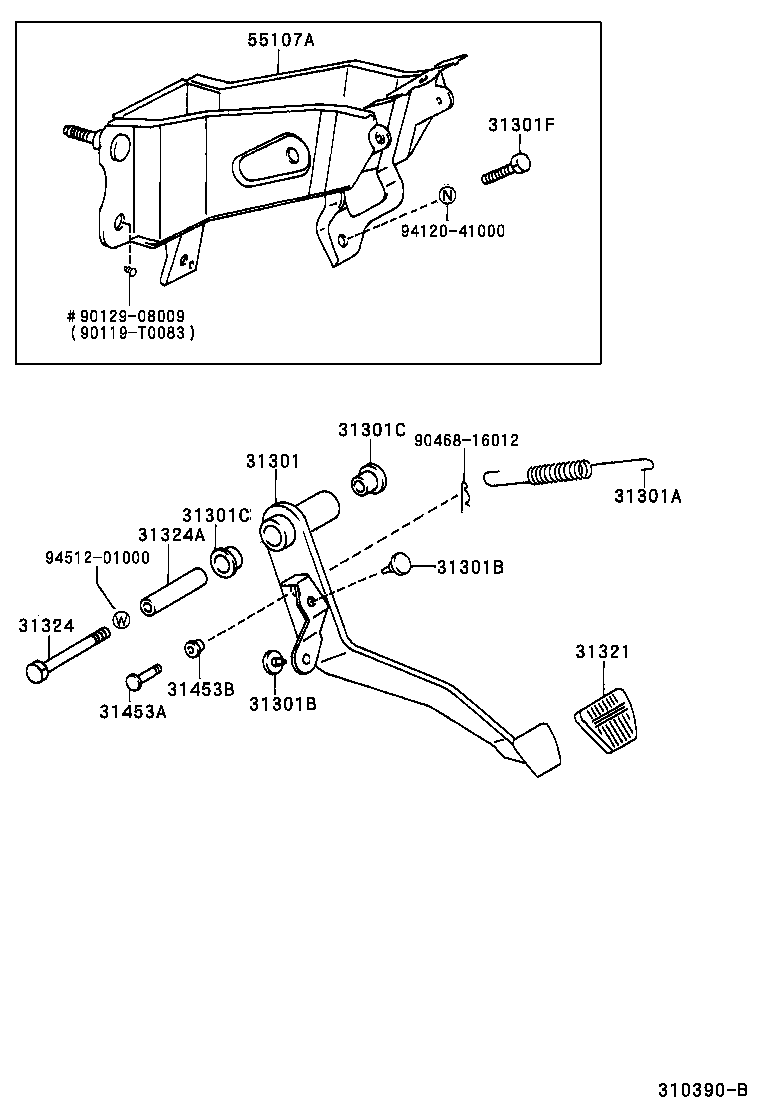

ILLUST NO. 1 OF 2(9708- )LN141,145,146,155,166,171,191,RZN14#,154,168,193..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35250	RZN149..GCC;RZN149..DLX..GEN;LN141,145,146,155,166,171,191,RZN142,144,147,148,154,168,193..LHD	08/1997 - 09/2000	1
31301-35251	LN141,145,146,166,171,191,RZN142,144,147,149,154,193..LHD..MTM..(GCC,GEN)	09/2000 - 08/2001	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14030	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	RZN149..DLX..GEN;LN147,157,167,RZN149..(CBR,DSL)..(ARL,GCC,TH);LN141,145,146,155,166,191,RZN142,144,147,148,16#,193..LHD;KZN165,LN152,17#,192,RZN154..(THSCB,THXTR,XTR)..MTM..(CBR,DSL,TDE)	08/1997 - 09/2000	1
31321-52010	LN141,145,146,166,171,191,RZN142,144,147,149,154,193..LHD..MTM..(GCC,GEN)	09/2000 - 08/2001	1
31324 - SHAFT, CLUTCH PEDAL
91121-61070	LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154..LHD..(CBR,DSL)	08/1997 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10027	LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154..LHD..(CBR,DSL)	08/1997 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=27	08/1997 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-35080	LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154..LHD..(CBR,DSL)	08/1997 - 12/2999	1
55107-35080	RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,168,193..LHD..GEN	08/2001 - 06/2005	1
Common parts
90119-T0083
90129-08009
90468-16012
94120-41000
94512-01000

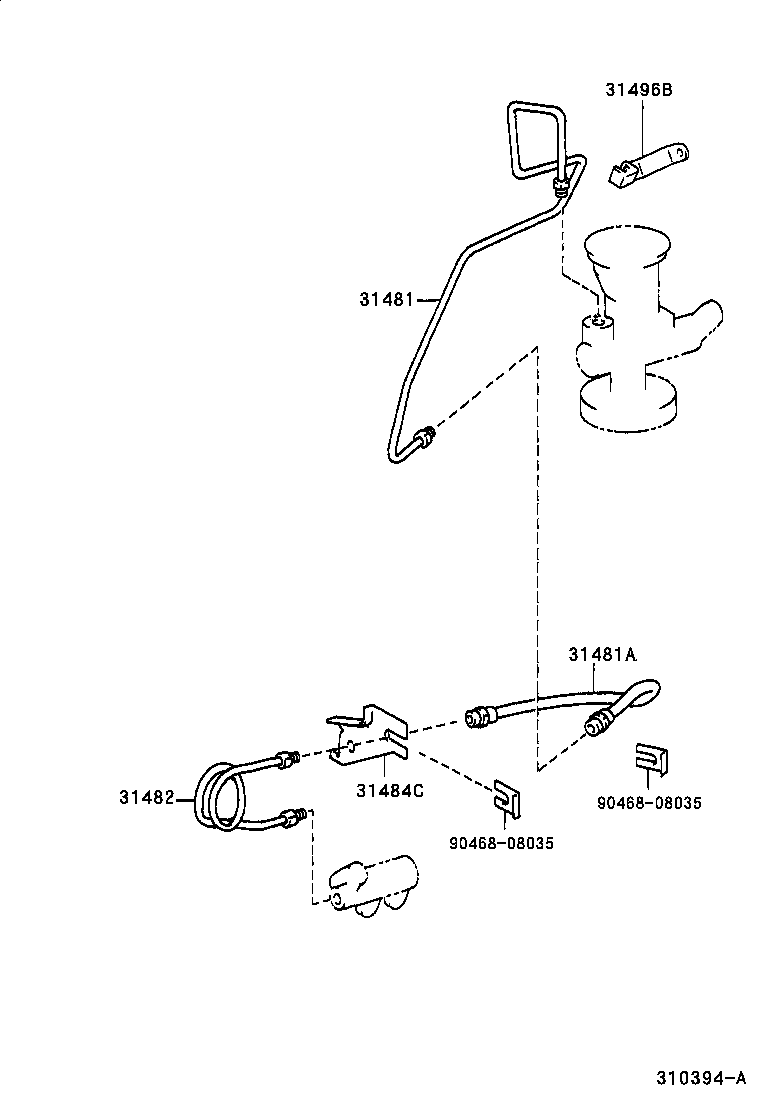

ILLUST NO. 2 OF 2(9708- )LN141,145,146,155,166,171,191..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35460	LN166..LHD..DSL;LN141,145,146,155,171,191,RZN144,149,154,169..LHD..(CBR,DSL)	08/1997 - 09/2001	1
31481-35460	LN145,166,171,191,RZN154,169..LHD..GEN	08/2001 - 06/2005	1
31481A - HOSE, CLUTCH, NO.1
90947-02953	LN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU	08/2001 - 06/2005	1
90947-02953	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165,LN145..SCB..DLX;RZN147,174..DCB,SCB,XTR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165..(DCB,SCB,THSCB)..SR..(ARL,SA);LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);RZN149,169..(DCB,SCB)..MTM..DLX..(ARL,SA);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,148,168,193..DLX..(ARL,GCC,GEN,SA,TH) (J)	08/1997 - 03/2006	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35410	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31482-35400	RZN147,174,19#;RZN169..DCB..SA;RZN142,144,149,154,169..CBR;RZN154,169..MTM..DLX..(ARL,SA);RZN148,149,168..MTM..DLX..EFI..(ARL,GEN)	08/1997 - 12/2999	1
31482-35410	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35310	LN192;LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31484-35310	LN145..LHD..IV3;LN145,166,171,191..GEN..CBU	08/2001 - 06/2005	1
31484-35300	RZN147,174,19#;RZN169..DCB..SA;RZN154,169..MTM..DLX..(ARL,SA);RZN142,144,149,154,169,YN140..CBR;RZN148,149,168..MTM..DLX..EFI..(ARL,GEN)	08/1997 - 12/2999	1
31496B - CLAMP, CLUTCH TUBE
31496-35030	LN141,145,146,155,166,171,191..LHD..DSL	05/1998 - 09/2001	1
31496-35030	LN145,166,171,191..LHD..GEN	08/2001 - 12/2999	1
Common parts
90468-08035

ILLUST NO. 1 OF 2(9708- )KDN151,16#,KZN165,190,RZN149,154,169,174,194,VZN167,172..RHD..MTM ; (030

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35250	RZN149..GCC;RZN149..DLX..GEN;LN141,145,146,155,166,171,191,RZN142,144,147,148,154,168,193..LHD	08/1997 - 09/2000	1
31301-35251	LN141,145,146,166,171,191,RZN142,144,147,149,154,193..LHD..MTM..(GCC,GEN)	09/2000 - 08/2001	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14030	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14030	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	RZN169..CBR;RZN149..GCC;LN145..DCB..IV3;RZN147..LHD..SCB;RZN149..DLX..CBR..GEN;RZN147..DCB..(GCC,GEN);LN141,145,146,166,171,191,RZN142,144,154,193..LHD..(GCC,GEN)	08/1997 - 08/2001	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	RZN149..DLX..GEN;LN147,157,167,RZN149..(CBR,DSL)..(ARL,GCC,TH);LN141,145,146,155,166,191,RZN142,144,147,148,16#,193..LHD;KZN165,LN152,17#,192,RZN154..(THSCB,THXTR,XTR)..MTM..(CBR,DSL,TDE)	08/1997 - 09/2000	1
31321-52010	LN141,145,146,166,171,191,RZN142,144,147,149,154,193..LHD..MTM..(GCC,GEN)	09/2000 - 08/2001	1
31324 - SHAFT, CLUTCH PEDAL
91121-61070	LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154..LHD..(CBR,DSL)	08/1997 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10027	LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154..LHD..(CBR,DSL)	08/1997 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010	LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;KZN165,LN152..(THXTR,XTR)..MTM..(DSL,TDE);LN152,167,RZN169..(DCB,XTR)..MTM..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..MTM..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH) L=27	08/1997 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	LN150..SR;LN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;RZN169..LHD..CBR;LN145..LHD..DLX..TH;LN152,167..MTM..DEFI..TH;LN167..DCB..DLX..DEFI..ARL;LN192,RZN144,149,154..CBR,DEFI,DSL;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,152..(SCB,THXTR,XTR)..MTM..DSL;LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)	08/1997 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-35080	LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154..LHD..(CBR,DSL)	08/1997 - 12/2999	1
55107-35080	RZN148..GEN..CBU;LN145,166,171,191,RZN142,147,168,193..LHD..GEN	08/2001 - 06/2005	1
Common parts
90119-T0083
90129-08009
90468-16012
94130-01002
94130-61000
94512-01000
96160-00600
