LN191L-PRMDS (1997)

Toyota Hilux

Production Aug 1997 - Jun 2005
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )2L,3L..LN141,145,146,155,166,171,191..LHD

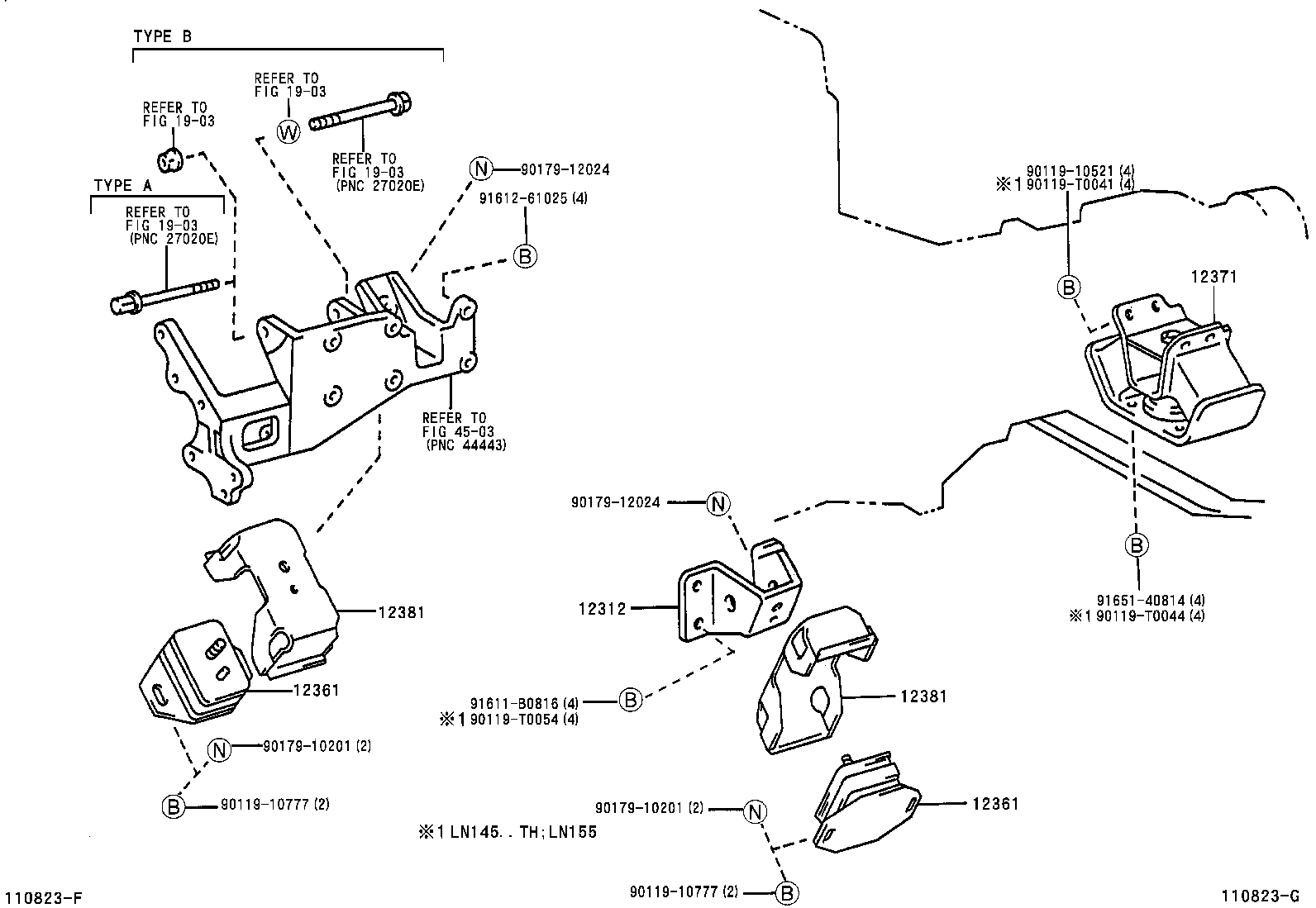

Click highlighted areas on diagram

diagram 12312 12361 12361 12371 12381 12381 1903 1903 1903 1903 4503 9011910521 9011910777 9011910777 90119T0041 90119T0044 90119T0054 9017910201 9017910201 9017912024 9017912024 91611B0816 9161261025 9165140814
Part # Description Qty Price
12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2
12312-54021

2L..LN145..LHD..IV3;3L..LN166..LHD..GEN;2L,3L..LN145,171,191..GEN..CBU

 1
12312-54021

2L..LN145..DCB..GEN;2L..LN145..LHD..DLX..TH;2L..LN145..SCB..(GEN,TH);2L,5L#..LN150,152..MTM..SR;2L,3L,5L#..LN141,146,155,157,166,171,191..DLX..(GCC,GEN,TH)

 1
12312-54021

2L..LN145..GEN,TH;2L,3L,5L..LN140,141,146,15#,166,171,191..MTM..CBU

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54111

2L,3L,5L#..LN14#,15#,191

 2
12361-54111

2L..LN145..LHD..IV3;2L,3L..LN145,191..GEN..CBU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54111

2L,3L,5L#..LN14#,15#,191

 2
12361-54111

2L..LN145..LHD..IV3;2L,3L..LN145,191..GEN..CBU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

2L,3L,5L#..LN14#,15#,19#

 1
12371-34030

5LE..LN152..XTR..IV3;2L,3L,5LE..LN14#,19#..(DCB,SCB)..DLX..(ARL,GCC,GEN,SA)

 1
12371-34030

2L..LN145..LHD..IV3;2L,3L..LN145,191..GEN..CBU

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L,3L,5L#..LN14#,15#,191

 2
12381-54010

2L..LN145..LHD..IV3;2L,3L..LN145,191..GEN..CBU

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L,3L,5L#..LN14#,15#,191

 2
12381-54010

2L..LN145..LHD..IV3;2L,3L..LN145,191..GEN..CBU

 2
Common parts
90119-10521
90119-10777
90119-T0041
90119-T0044
90119-T0054
90179-10201
90179-12024
91611-B0816
91612-61025
91651-40814
Linked diagrams
1903
4503
