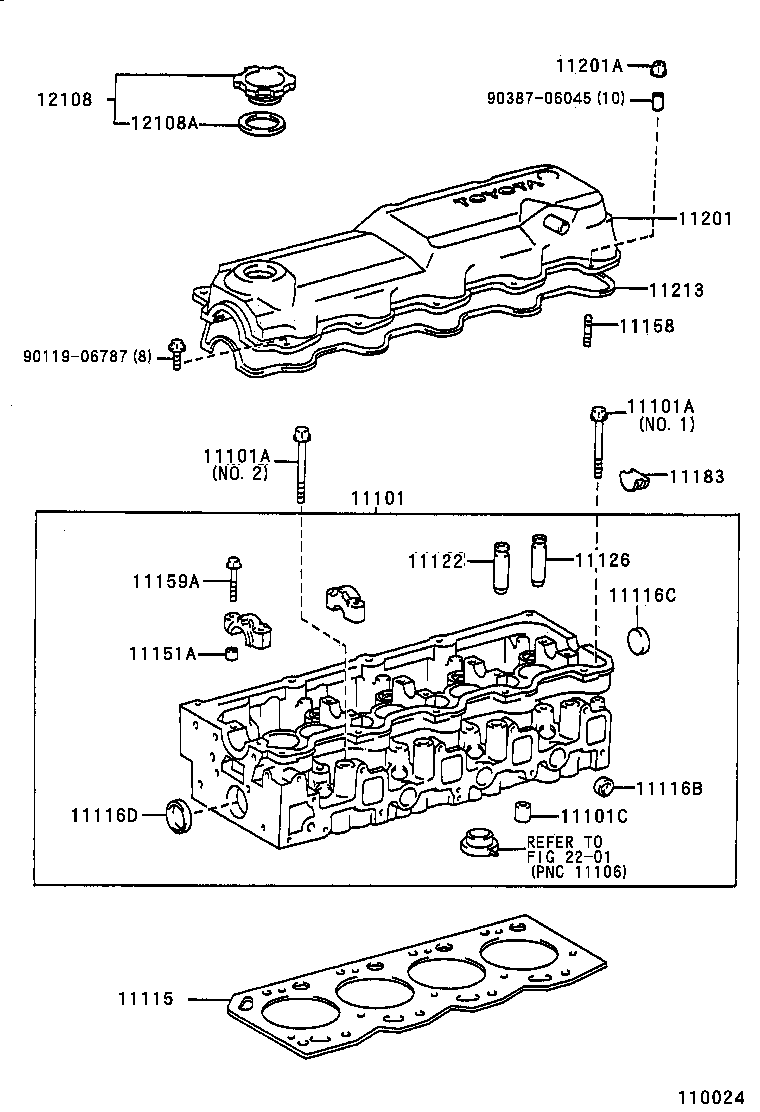

LN191L-PRMDS (1997)
Toyota Hilux
(9708- )2L,3L..LN141,145,146,155,166,171,191..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-54131 |
3L..LN141,146,166,171,191..DSL..(GCC,GEN) |
1 | ||
| 11101-54131 |
3L..LN141,146,166,171,191 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02081 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) NO.2 |
4 | ||
| 90910-02080 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) NO.1 |
14 | ||
| 90910-02080 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU NO.1 |
14 | ||
| 90910-02081 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU NO.2 |
4 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02081 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) NO.2 |
4 | ||
| 90910-02080 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) NO.1 |
14 | ||
| 90910-02080 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU NO.1 |
14 | ||
| 90910-02081 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU NO.2 |
4 | ||
| 11101C - TUBE(FOR CYLINDER HEAD) | ||||
| 90440-15003 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
4 | ||
| 90440-15003 |
3L..LN166,171,191;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THSCB)..CBU;2L,3L,5LE..LN140,141,145,146,192..GCC,SA |
4 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-54073B0 |
3L..LN141,146,166,171,191..DSL..(GCC,GEN) MARK B,MARK B |
1 | ||
| 11115-54073F0 |
3L..LN141,146,166,171,191..DSL..(GCC,GEN) MARK F,MARK F |
1 | ||
| 11115-54073D0 |
3L..LN141,146,166,171,191..DSL..(GCC,GEN) MARK D,MARK D |
1 | ||
| 11115-54073B0 |
3L..LN141,146,166,171,191 MARK B |
1 | ||
| 11115-54073F0 |
3L..LN141,146,166,171,191 MARK F |
1 | ||
| 11115-54073D0 |
3L..LN141,146,166,171,191 MARK D |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42500 |
2L,3L,5L..LN14#,16#,17#,191 |
7 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-43000 |
2L,3L,5L..LN14#,16#,17#,191 |
1 | ||
| 96411-63000 |
2L,3L,5LE..LN14#,15#,16#,17#,19# |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-64500 |
2L,3L,5LE..LN14#,15#,16#,17#,19# |
2 | ||
| 96411-44500 |
2L,3L,5L..LN14#,16#,17#,191 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-54020 |
2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN) STD |
4 | ||
| 11123-54020 |
2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN) O/S 0.05 |
4 | ||
| 11122-54020 |
5LE..LN147..IV3;2L..LN145..LHD..IV3;3L,5LE..LN16#..ARL,GCC,GEN,MA,SA;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH);2L,3L,5LE..LN140,141,146,150,155,17#,19#..DLX STD |
4 | ||
| 11123-54020 |
5LE..LN147..IV3;2L..LN145..LHD..IV3;3L,5LE..LN16#..ARL,GCC,GEN,MA,SA;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH);2L,3L,5LE..LN140,141,146,150,155,17#,19#..DLX O/S 0.05 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-54020 |
2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN) STD |
4 | ||
| 11123-54020 |
2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN) O/S 0.05 |
4 | ||
| 11122-54020 |
5LE..LN147..IV3;2L..LN145..LHD..IV3;3L,5LE..LN16#..ARL,GCC,GEN,MA,SA;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH);2L,3L,5LE..LN140,141,146,150,155,17#,19#..DLX STD |
4 | ||
| 11123-54020 |
5LE..LN147..IV3;2L..LN145..LHD..IV3;3L,5LE..LN16#..ARL,GCC,GEN,MA,SA;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH);2L,3L,5LE..LN140,141,146,150,155,17#,19#..DLX O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-54020 |
2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN) O/S 0.05 |
4 | ||
| 11122-54020 |
2L..LN145..DCB..IV3;2L,3L..LN141,145,146,166,171,191..LHD..(GCC,GEN) STD |
4 | ||
| 11122-54020 |
5LE..LN147..IV3;2L..LN145..LHD..IV3;3L,5LE..LN16#..ARL,GCC,GEN,MA,SA;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH);2L,3L,5LE..LN140,141,146,150,155,17#,19#..DLX STD |
4 | ||
| 11123-54020 |
5LE..LN147..IV3;2L..LN145..LHD..IV3;3L,5LE..LN16#..ARL,GCC,GEN,MA,SA;2L,5LE..LN145,152..(ARL,GEN,SA)..CBU;2L,5LE..LN145,147..(DCB,THDCB)..(ARL,TH);2L,3L,5LE..LN140,141,146,150,155,17#,19#..DLX O/S 0.05 |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) L=8,OD=11 |
7 | ||
| 90253-11021 |
3L..LN166,171,191;5LE..LN167..SR..ARL;5LE..LN167..DCB..SA;5LE..LN167..(SCB,THSCB)..CBU;2L,3L,5LE..LN140,141,145,146,192..GCC,SA L=8,OD=11 |
7 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92122-80616 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) S=9 & 9,L=25,ENGINE NO.=9000001-9999999 |
2 | ||
| 92122-80616 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU S=9 & 9,L=25,ENGINE NO.=9000001-9999999 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-08166 |
5LE..LN167..SR..ARL;3L..LN141,146,166,171,191;5LE..LN167..(SCB,THSCB)..ARL..CBU |
10 | ||
| 90105-08166 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-54020 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) |
1 | ||
| 11183-54020 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-54051 |
2L,3L..LN141,145,146,155,166,171,191..LHD..DSL |
1 | ||
| 11210-54051 |
2L,3L..LN145,166,171,191..LHD..GEN |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-06319 |
5LE..LN152..IV3;5L..LN152,167,192;2L..LN145..LHD..DLX..TH;2L,5LE..LN145,192..SCB,XTR;2L,5LE..LN150,152,167..SR..TH;5LE..LN167..(SCB,THDCB,THSCB)..DLX;2L,5LE..LN145,167..DCB..DLX..(ARL,GEN);2L,3L,5L#..LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH) ENGINE NO.=9000001-9999999 |
2 | ||
| 90179-06319 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU ENGINE NO.=9000001-9999999 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-54050 |
2L..LN145,155..LHD..TH;2L,3L,5L..LN14#,152,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 11213-54050 |
2L..LN145,155..LHD..TH;2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
1 | ||
| 11213-54050 |
2L..LN145,155..LHD..TH;2L,3L,5L..LN141,145,146,147,152,16#,17#,191..(DCB,SCB,XTR)..DSL..(ARL,GCC,GEN) |
1 | ||
| 11213-54050 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-70020 |
2L,3L,5L..LN14#,152,16#,17#,19#..ARL,GCC,GEN,SA |
1 | ||
| 12180-70020 |
2L,3L,5L..LN14#,152,16#,17#,19#..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) |
1 | ||
| 12180-70020 |
2L,3L,5L..LN141,145,146,147,152,16#,17#,191..(DCB,SCB,XTR)..DSL..(ARL,GCC,GEN) |
1 | ||
| 12180-70020 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 12180-73011 |
2L,3L..LN145,166,171,191..LHD..GEN |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-70010 |
2L,3L,5L#..LN14#,15#,16#,17#,19# |
1 | ||
| 12195-70010 |
2L,3L..LN141,145,146,166,171,191..DSL..(GCC,GEN) |
1 | ||
| 12195-70010 |
2L..LN145..LHD..IV3;2L,3L..LN141,145,146,166,171,191..(GCC,GEN,MA)..CBU |
1 | ||
| 12195-73010 |
2L..LN145..LHD..IV3;2L,3L..LN145,166,171,191..(GEN,MA)..CBU |
1 | ||
| Common parts | ||||
| 90119-06787 | ||||
| 90387-06045 | ||||
| Linked diagrams | ||||
| 2201 | ||||
