LN172R-FRMDEQ3 (2000)

Toyota Hilux

Production Sep 2000 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )VZN167,172

Click highlighted areas on diagram

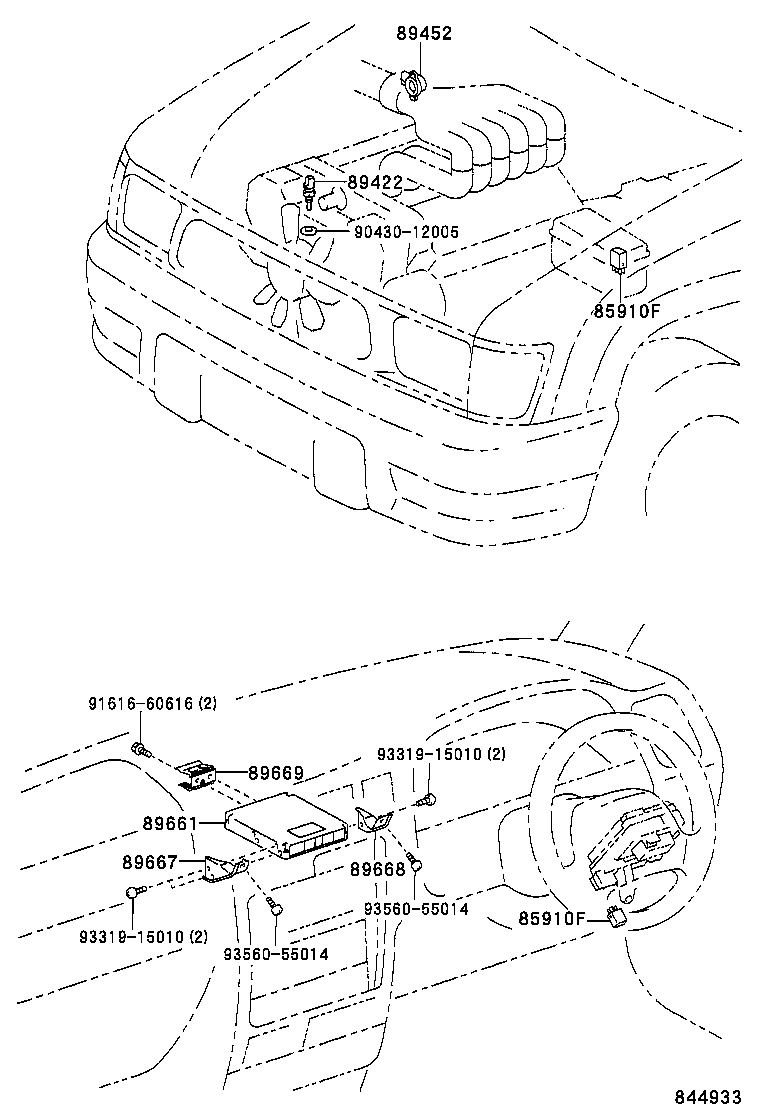

diagram 85910F 85910F 89422 89452 89661 89667 89668 89669 9043012005 9161660616 9331915010 9331915010 9356055014 9356055014
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

RZN149,154,VZN167,172..ARL

 2
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

RZN149,154,VZN167,172..ARL

 2
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

RZN149,154,VZN167,172..ARL

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3D700

VZN167,172..MTM

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-60180

VZN167,172

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60200

VZN167,172

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35070

RZN149,154,VZN167,172..ARL

 1
Common parts
90430-12005
91616-60616
93319-15010
93560-55014
