LN172R-FRMDEQ (2000)

Toyota Hilux

Production Sep 2000 - Feb 2005
Engine 5LE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

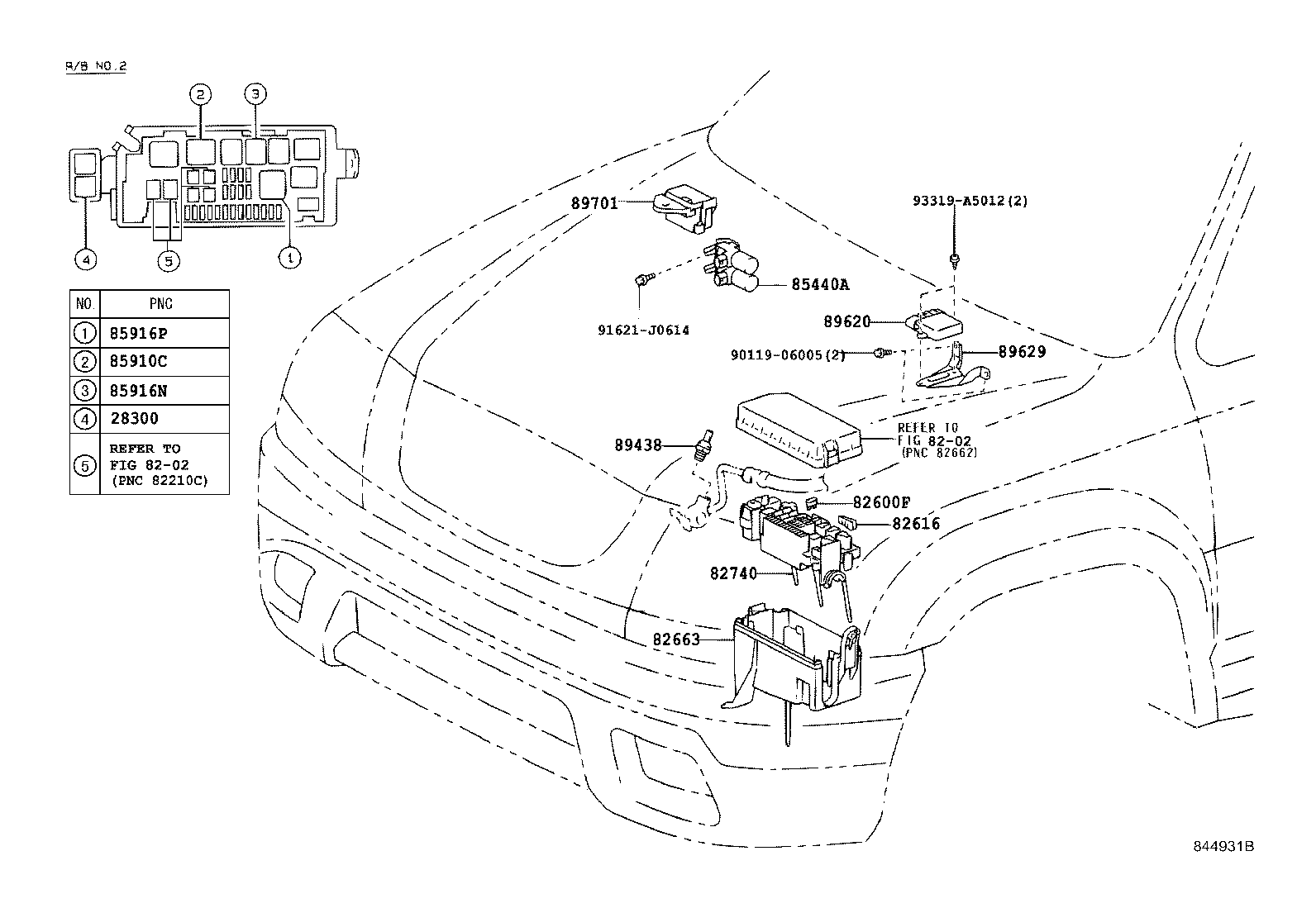

ILLUST NO. 2 OF 6(0208- )VZN167,172

Click highlighted areas on diagram

ENGINE ROOM

diagram 28300 8202 8202 82600F 82616 82663 82740 85440A 85910C 85916N 85916P 89438 89620 89629 89701 9011906005 91621J0614 93319A5012
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-46010

2L..LN145..RHD..(GEN,SA);1KZTE,2L,3L,5LE..KZN165,190,LN140,147,152,157,16#,172,192..RHD

 1
28300-46010

5LE..LN152,157,167,192;2L,5L..LN145,152,167,192..ARL,GEN,SA;1KZTE,2L,3L,5L#..KZN165,190,LN140,141,146,147,166,17#,191

 1
82600F - FUSE, FUSE BLOCK
90982-09009

LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA

10A,MINI FUSE,RED

 1
90982-09008

LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA

7.5A,MINI FUSE,BRN

 1
90982-09010

LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA

15A,MINI FUSE,BLUE

 1
90982-09011

LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA

20A,MINI FUSE,YELLOW

 1
90982-10001

LN167..THDCB,THSCB;LN147,152,172..THSCB,THXTR

30A,PINK

 1
90982-09011

LN147,152,167,172..THSCB,THXTR

20A,MINI FUSE,YELLOW

 2
90982-09008

LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

7.5A,MINI FUSE,BRN

 1
90982-09011

KZN165..DCB..DLX..CBU;KZN165,LN147,152,167,172..(SCB,XTR)..ARL

20A,MINI FUSE,YELLOW

 1
90982-09009

LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

10A,MINI FUSE,RED

 1
90982-09010

LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

15A,MINI FUSE,BLUE

 1
82616 - PULLER, FUSE
82616-20010

RZN154,169..ARL;KZN165,YN140..SA,TH;RZN149..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);KZN165,RZN147,148,168..DLX..(ARL,GCC,GEN);KZN190,LN14#,15#,16#,17#,19#,RZN174,193..DEFI,DSL,EFI,TDE

 1
82616-20010

LN172,RZN154,174;LN14#,15#,16#,171,19#,RZN14#,16#,19#,YN140..DCB,SCB,XTR

 1
82616-20010

LN147,167..IV3;LN167,RZN154..(DCB,THDCB,XTR)..DLX..ARL;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KZN165,LN172,RZN149,VZN167,172..(DCB,SCB,THXTR,XTR)..ARL

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-35050

LN14#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA

 1
82663-35070

RZN154,169..(DCB,SCB,XTR)..ARL;RZN149..(DCB,SCB)..EFI..(ARL,GEN);RZN142,144,149,154,169..CBR..(GCC,GEN);RZN147,148,168,174..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN);KZN165,LN141,145,146,147,152,16#,17#,191,RZN193..(DEFI,DSL,EFI,TDE)..(ARL,GCC,GEN)

 1
82663-35070

LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
82663-35070

LN167..THDCB..DLX;LN147,167..THSCB..IV3;LN147,152..(THDCB,THXTR)..CBU;LN172,RZN149,154..THDCB,THSCB,THXTR

 1
82663-35070

LN147,152,167,172..THDCB,THSCB,THXTR

 1
82740 - BLOCK ASSY, ENGINE ROOM RELAY
82741-35030

LN140,145,147,16#,172,192..RHD..(ARL,GEN,SA)

 1
82741-35090

LN147,167..THSCB..IV3;LN147,172..THDCB,THXTR;LN152,167..(THDCB,THXTR)..DLX..CBU

 1
82741-35090

LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172..(DCB,SCB,XTR)..ARL

 1
82741-35090

LN147,152,167,172..THDCB,THSCB,THXTR

 1
82741-35080

RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
85440-35070

KZN165..SR..(ARL,TH);LN167,172..(DCB,THDCB,THXTR,XTR)..(CBU,IV1)

 1
85440-35070

LN172..XTR..CBU;KZN165..DCB..SR..ARL

 1
85440-35070

KDN16#..TH..CBU;LN172..THXTR..CBU

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
90987-04002

LN147..THDCB;LN147,167..THSCB..IV3;LN150,167..(THDCB,XTR)..DLX;KDN145,15#,16#,190,LN155..TH..CBU;LN172,RZN149,154..THDCB,THSCB,THXTR;LN145,152..(DCB,THXTR)..(ARL,TH)..CBU

 1
90987-04002

LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
85916N - RELAY, TAIL LAMP
90987-02012

KZN165;KZN190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..(DCB,SADCB,SCB,XTR)..(ARL,GCC,GEN,SA)

 1
90987-02012

LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
90080-87008

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR

 1
85916P - RELAY, HEADLAMP
90987-02006

LN147..THDCB;LN147,167..THSCB..IV3;LN150,167..(THDCB,XTR)..DLX;KDN145,15#,16#,190,LN155..TH..CBU;LN172,RZN149,154..THDCB,THSCB,THXTR;LN145,152..(DCB,THXTR)..(ARL,TH)..CBU

 1
90987-02006

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140

 1
90987-02006

LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL

 1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

VZN167,172

 1
89620 - IGNITER ASSY
89621-35020

VZN167,172

 1
89629 - BRACKET, IGNITER ASSY
89629-35060

VZN167,172

 1
89701 - BLOCK SUB-ASSY, ABS RELAY
89701-12010

LN147,167..IV3;KZN165..(DCB,SCB)..ARL;LN167..(DCB,THDCB)..DLX..ARL;LN172,RZN149,154,VZN167,172..ARL;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU

 1
Common parts
90119-06005
91621-J0614
93319-A5012
Linked diagrams
8202

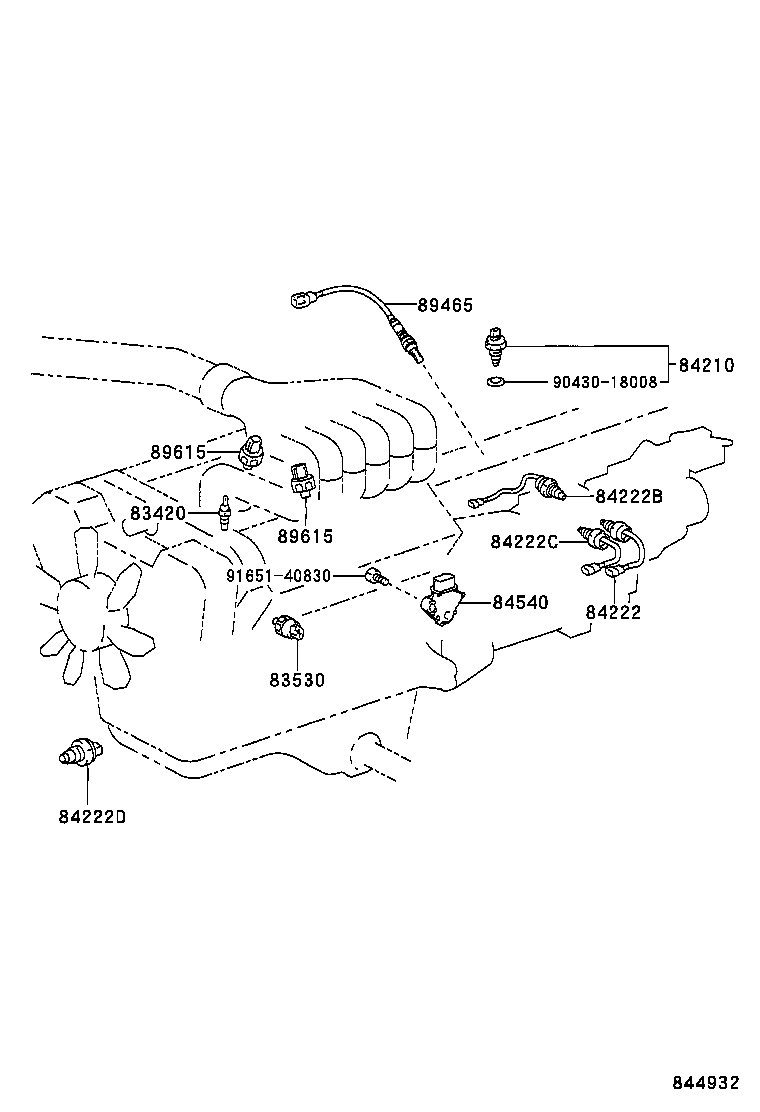

ILLUST NO. 1 OF 6(0208- )VZN167,172

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 83420 83530 84210 84222 84222B 84222C 84222D 84540 89465 89615 89615 9043018008 9165140830
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040

LN167..TH;LN145..SCB;LN192..DEFI;LN145..LHD..DLX..TH;LN145,167..DCB..DLX..(ARL,GEN);KZN165..(DCB,SCB)..(ARL,SA)..CBU;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN150,152..(THDCB,XTR)..SR..CBU;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,YN140..DLX..(ARL,GCC,GEN,SA,TH)

 1
83420-16040

LN150,155..DLX;LN167..THDCB..DLX;LN147,167..THSCB..IV3;LN147,152..(THDCB,THXTR)..CBU;LN145,172..(DCB,THXTR)..(ARL,TH)

 1
83420-16040

KZN165,190,LN14#,15#,16#,17#,19#,RZN142,147,YN140

 1
83420-16040

LN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;LN167..THDCB..SR;KDN145,KZN190..SR;LN167..THSCB..CBU;LN167..(DCB,SCB)..(ARL,SA);LN145,152,192..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU;KDN15#,16#,190,KZN165,LN140,141,146,166,17#,191,RZN142,147..(DCB,SCB,SRWGN,THDCB,THSCB,XTR)..(ARL,GCC,GEN,SA,TH)

 1
83420-16020

VZN167,172

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060

LN14#,16#,17#,191

 1
83530-60030

LN147,167..IV3;LN166,172..ARL,MA;LN167..(DCB,THDCB)..DLX..ARL;LN147,152..(DCB,THDCB,XTR)..ARL..CBU

 1
83530-60030

LN145..SCB;LN152..IV3;LN192..DEFI;LN145..LHD..DLX..TH;LN150,152,167..SR..TH;LN145,167..DCB..DLX..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN140,141,146,147,155,157,166,17#,191..DLX..(ARL,GCC,GEN,SA,TH)

 1
83530-28020

RZN149,154,VZN167,172..ARL

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

KZN165,190,LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..MTM

 1
84210-04010

LN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172..THDCB,THSCB,THXTR;KDN145,150,155,LN140,145,150,155,167,192,RZN142,147..SA,TH

 1
84210-12040

LN147,167..IV3;KZN165..SCB..IV3;RZN149..MTM..ARL;LN167..(DCB,THDCB)..DLX..ARL;KZN165,LN152..(DCB,SCB,THXTR,XTR)..ARL..CBU;LN147,172,RZN154..(DCB,THDCB,THXTR,XTR)..MTM..ARL

THAILAND SPEC

 1
84210-12040

KZN165..DCB..IV3;KDN165,LN166,VZN167,172..MTM..(ARL,MA)

 1
84210-12040

LN145..SCB;LN145..LHD..DLX..TH;KZN165..(THDCB,XTR)..SR..CBU;LN145,167..DCB..DLX..(ARL,GEN);RZN149,169..MTM..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN150,152,RZN194..(DCB,SCB,XTR)..MTM..SR;KZN165,LN152..(SCB,THXTR,XTR)..(IV1,IV3);LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,SCB,THXTR,XTR)..MTM..(DSL,EFI,TDE)..(ARL,SA)..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)

THAILAND SPEC

 1
84222B - SWITCH, TRANSFER INDICATOR, NO.2
84222-35060

LN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)

 1
84222-35060

KDN16#..TH..CBU;LN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX

 1
84222-35060

LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,XTR)..DLX

 1
84222C - SWITCH, TRANSFER INDICATOR, NO.3
84222-35080

LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,XTR)..ARL

 1
84222-35080

KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN169..DLX..(DEFI,EFI)..ARL;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA,TH);KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,GCC,SA)

 1
84222-35080

KDN16#..TH..CBU;LN167..THSCB..IV3;LN167,172..(THDCB,THXTR)..DLX

 1
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-35070

KDN16#..TH..CBU;LN172..THXTR..CBU

 1
84222-35070

RZN169..SA;LN167..DEFI..TH;KZN165..SR..ARL;LN167..(DCB,THDCB,XTR)..DSL;KZN165,LN172,RZN174..(THXTR,XTR)..(CBU,IV1);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL

 1
84222-35070

LN172,VZN172..XTR..CBU;KZN165,VZN167..DCB..SR..ARL

 1
89465 - SENSOR, OXYGEN
89465-35610

VZN167,172..MTM

 1
89615 - SENSOR, KNOCK CONTROL
89615-12040

VZN167,172

MATSUSHITA

 2
89615-12050

VZN167,172

DENSO

 2
89615 - SENSOR, KNOCK CONTROL
89615-12040

VZN167,172

MATSUSHITA

 2
89615-12050

VZN167,172

DENSO

 2
Common parts
90430-18008
91651-40830

ILLUST NO. 2 OF 8(0408- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28380A 83390 83390 90119T0037
Part # Description Qty Price
Common parts
90119-T0037

ILLUST NO. 5 OF 8(0408- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 8302 8302 84118 84119 84330 84330B 84660C 84725A 84725B 84790 84790B 84790B 84870A 84988L 85500 85500B 85510 85513 85515 85520 85530 85533 85535B 85539 87290 87290 87290B 87290B 90170T0001
Part # Description Qty Price
Common parts
90170-T0001
Linked diagrams
8302

ILLUST NO. 8 OF 8(0408- )

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 82223F 83320 83320 84222D 84233 84233 84234 84234 84810 84810 84810D 84810D 84820 84820 84820 84820 9010906296 9010906296 9010906296 9010906296 90164T0005 90164T0005 9043018008
Part # Description Qty Price
Common parts
90109-06296
90164-T0005
90430-18008

ILLUST NO. 4 OF 8(0408- )RHD

Click highlighted areas on diagram

COWL

diagram 28371 81980 82210J 82210J 82600F 82600F 82660B 82730A 84340 84345 84550 85912 85913C 85930G 85934 87346K 87346K 88280A 89530C 89533 89533A 90105T0066 90105T0066 90105T0066 90105T0066 90159T0003 90178T0018 90178T0018 9167180618
Part # Description Qty Price
Common parts
90105-T0066
90159-T0003
90178-T0018
91671-80618

ILLUST NO. 6 OF 8(0408- )

Click highlighted areas on diagram

STEERING

diagram 4501 84052 84140 84140 84247A 84250A 84306 84306 84306 84306 84306 84306 84312 84450 84650 84650 85432 9015950199 9015950199 90159T0007 90168T0004
Part # Description Qty Price
Common parts
90159-50199
90159-T0007
90168-T0004
Linked diagrams
4501

ILLUST NO. 1 OF 8(0408- )KUN1#,2#,3#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 827112B660 827150K410 83181G 83181G 83181G 83181G 83181H 83181H 83181H 83181H 83530 84210 84222 84222B 84222C 84540 89491 9043018008 9155180612 9165140825 9165140830
Part # Description Qty Price
Common parts
82711-2B660
82715-0K410
90430-18008
91551-80612
91651-40825
91651-40830

ILLUST NO. 3 OF 8(0408- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 28610 82600F 82616 82620A 82630 82641 82661 82662A 82663 827150K800 82741 82742 8404 8404 9011906923 9011906923
Part # Description Qty Price
Common parts
82715-0K800
90119-06923
Linked diagrams
8404
