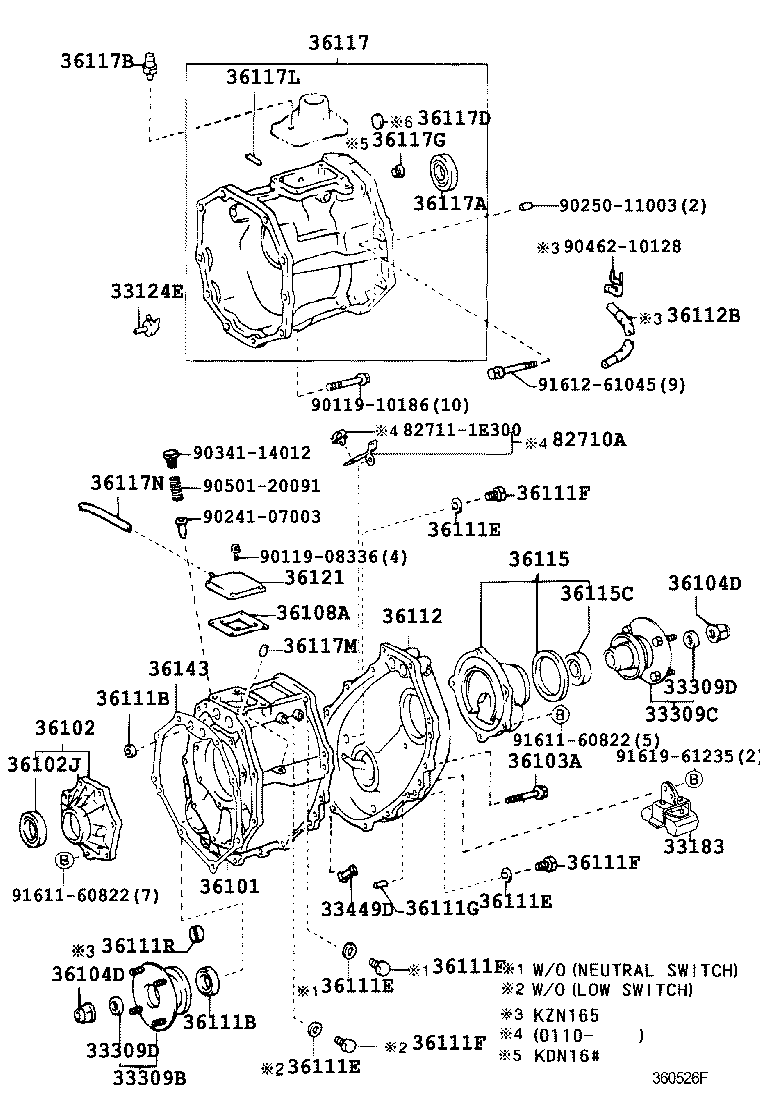

Toyota Hilux LN172 TRANSFER CASE & EXTENSION HOUSING

Part #	Description	Period	Qty
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-36010	LN167,172..ARL,TH NO.2	08/1997 - 09/2000	1
33124-35070	LN167,172..ARL,TH NO.1	08/1997 - 09/2000	1
33183 - DAMPER, TRANSFER DYNAMIC
33183-34031	LN16#,172..(DCB,THDCB,THXTR,XTR)..(ARL,GCC,TH)	08/1997 - 09/2001	1
33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35061	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35100	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	2
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
36101 - CASE SUB-ASSY, TRANSFER
36101-35120	LN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
36102 - COVER SUB-ASSY, TRANSFER CASE
36102-35050	RZN16#;KZN165,LN16#,172,RZN174..ARL,GCC,SA,TH	08/1997 - 11/2000	1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-40021	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH) *8-1.25PX55-30	08/1997 - 12/2999	12
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	2
36108A - DEFLECTOR SUB-ASSY, BREATHER OIL
36108-35030	RZN16#;LN16#,172,RZN174..ARL,GCC	08/1997 - 03/1998	1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41008	RZN168..DLX..GEN;LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,GCC,SA) FRONT OUTPUT SIDE	08/1997 - 07/2002	1
90311-15008	LN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH) FORK SHAFT SIDE	08/1997 - 12/2999	2
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41008	RZN168..DLX..GEN;LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN167..DCB..DLX..DEFI..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..(ARL,GCC,SA) FRONT OUTPUT SIDE	08/1997 - 07/2002	1
90311-15008	LN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH) FORK SHAFT SIDE	08/1997 - 12/2999	2
36111E - GASKET (FOR TRANSFER CASE)
90430-18008	RZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH W/O(NEUTRAL & LOW SWITCH)	08/1997 - 08/2001	4
90430-18008	LN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GCC)	08/1997 - 03/2002	3
36111E - GASKET (FOR TRANSFER CASE)
90430-18008	RZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH W/O(NEUTRAL & LOW SWITCH)	08/1997 - 08/2001	4
90430-18008	LN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GCC)	08/1997 - 03/2002	3
36111E - GASKET (FOR TRANSFER CASE)
90430-18008	RZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH W/O(NEUTRAL & LOW SWITCH)	08/1997 - 08/2001	4
90430-18008	LN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GCC)	08/1997 - 03/2002	3
36111E - GASKET (FOR TRANSFER CASE)
90430-18008	RZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH W/O(NEUTRAL & LOW SWITCH)	08/1997 - 08/2001	4
90430-18008	LN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GCC)	08/1997 - 03/2002	3
36111F - PLUG (FOR TRANSFER CASE)
90341-18006	RZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH W/O(NEUTRAL & LOW SWITCH)	08/1997 - 08/2001	4
90341-18006	LN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GCC)	08/1997 - 03/2002	3
36111F - PLUG (FOR TRANSFER CASE)
90341-18006	RZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH W/O(NEUTRAL & LOW SWITCH)	08/1997 - 08/2001	4
90341-18006	LN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GCC)	08/1997 - 03/2002	3
36111F - PLUG (FOR TRANSFER CASE)
90341-18006	RZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH W/O(NEUTRAL & LOW SWITCH)	08/1997 - 08/2001	4
90341-18006	LN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GCC)	08/1997 - 03/2002	3
36111F - PLUG (FOR TRANSFER CASE)
90341-18006	RZN16#;LN167..DLX..SA;KZN165,LN16#,172,RZN174..ARL,GCC,TH W/O(NEUTRAL & LOW SWITCH)	08/1997 - 08/2001	4
90341-18006	LN167..DSL;KZN165..XTR;LN167,RZN169..(DEFI,EFI)..(SA,TH);KZN165,RZN169..(CBR,TDE)..(GCC,SA);LN167,RZN169..DLX..(DEFI,EFI)..ARL;KZN165,LN166,172,RZN174..(DCB,SCB,THXTR,XTR)..DLX..(ARL,GCC)	08/1997 - 03/2002	3
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH) L=14,OD=10	08/1997 - 12/2999	2
36112 - CASE, TRANSFER, REAR
36112-35070	LN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
36115 - HOUSING, TRANSFER EXTENSION
36105-35020	RZN16#;LN16#,172,RZN174..ARL,GCC,SA,TH	08/1997 - 01/1999	1
36105-35040	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	01/1999 - 12/2999	1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	08/1997 - 12/2999	1
36117 - ADAPTER, TRANSFER
36107-35100	LN167,172..ARL,TH	08/1997 - 09/2000	1
36117A - SEAL, OIL(FOR TRANSFER ADAPTER)
90311-40007	LN16#,172..ARL,GCC,SA,TH	08/1997 - 02/2000	1
90311-40023	LN167,172..(DCB,SCB,XTR)..ARL	02/2000 - 09/2000	1
36117D - PLUG(FOR TRANSFER ADAPTER)
90930-03085	LN167,172..ARL,TH	08/1997 - 09/2000	1
36117G - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)
90341-20010	LN167,172..ARL,TH	08/1997 - 09/2000	1
36117L - TUBE(FOR TRANSFER ADAPTER)
90441-05001	LN167..ARL,TH;KZN165,LN172..THSCB,THXTR,XTR	08/1997 - 09/2000	1
36117N - HOSE(FOR TRANSFER ADAPTER)
90904-45005	LN167..SR..SA;RZN16#..GCC,GEN,SA;LN167..SCB,THDCB,THSCB,XTR;RZN169..(SCB,THDCB,THSCB)..ARL;KZN165,LN166,172,RZN174..ARL,GCC,SA	08/1997 - 08/2000	1
36121 - COVER, TRANSFER CASE, NO.1
36102-35040	KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)	01/1999 - 12/2999	1
36102-35020	RZN16#;LN16#,172,RZN174..ARL,GCC,SA,TH	08/1997 - 01/1999	1
Common parts
82711-1E300
90119-08336
90119-10186
90241-07003
90250-11003
90341-14012
90462-10128
90501-20091
91611-60822
91612-61045
91619-61235

LN172R-CRMDSQ3 (1997)

(9908- )KDN16#,KZN165,VZN167,172..MTM
